929834-07-31-RK
Active3M (TC)

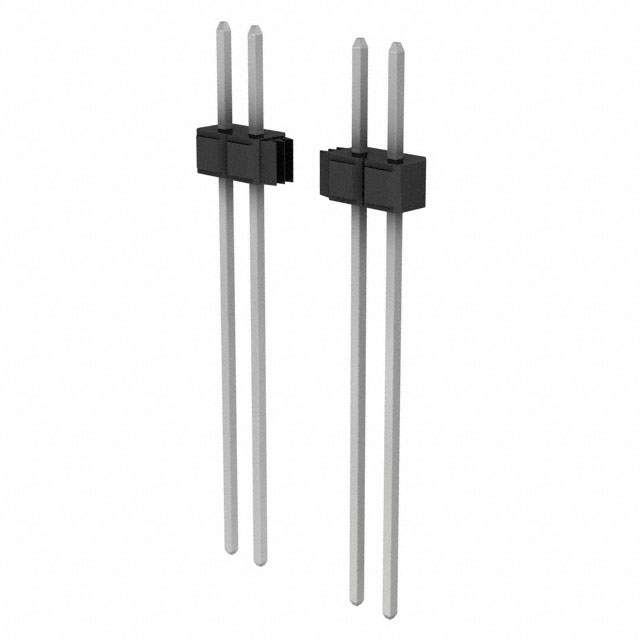

CONN HEADER VERT 31POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
929834-07-31-RK
Active3M (TC)
CONN HEADER VERT 31POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 929834-07-31-RK |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 5.08 µm |
| Contact Finish Thickness - Mating | 200 µin |
| Contact Length - Mating | 5.97 mm |
| Contact Length - Mating [x] | 0.235 in |
| Contact Length - Post | 23.11 mm |
| Contact Length - Post | 0.91 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.5 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 31 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 1.245 in |
| Overall Contact Length | 31.62 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
929834 Series
...
| Part | Connector Type | Material Flammability Rating | Current Rating (Amps) | Shrouding | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Length - Post | Contact Length - Post | Number of Positions | Contact Type | Overall Contact Length | Overall Contact Length | Insulation Color | Insulation Height | Insulation Height | Contact Length - Mating [x] | Contact Length - Mating | Number of Positions Loaded | Insulation Material | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Contact Finish - Post | Mounting Type | Contact Length - Post [x] | Overall Contact Length | Contact Finish - Mating | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Breakaway Header | UL94 V-0 | 2.5 A | Unshrouded | Solder | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Square | 23.11 mm | 0.91 in | 31 | Male Pin | 1.245 in | 31.62 mm | Black | 0.1 in | 2.54 mm | 0.235 in | 5.97 mm | All | Polycyclohexylenedimethylene Terephthalate (PCT) | Copper Alloy | 5.08 µm | 200 µin | 1 | Tin | Through Hole | ||||
3M (TC) | Breakaway Header | UL94 V-0 | 2.5 A | Unshrouded | Solder | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Square | 2.79 mm | 12 | Male Pin | 0.445 " | 11.3 mm | Black | 0.1 in | 2.54 mm | 0.235 in | 5.97 mm | All | Polycyclohexylenedimethylene Terephthalate (PCT) | Copper Alloy | 5.08 µm | 200 µin | 1 | Tin | Through Hole | 0.11 in | ||||
3M (TC) | Breakaway Header | UL94 V-0 | 2.5 A | Unshrouded | Solder | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Square | 26 | Male Pin | 0.545 in | Black | 0.1 in | 2.54 mm | 0.235 in | 5.97 mm | All | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | 2.54 çm | 100 çin | 1 | Through Hole | 0.21 in | 13.84 mm | Tin-Lead | 5.33 mm | ||||
3M (TC) | Breakaway Header | UL94 V-0 | 2.5 A | Unshrouded | Solder | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Square | 36 | Male Pin | 0.545 in | Black | 0.1 in | 2.54 mm | 0.235 in | 5.97 mm | All | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | 2.54 çm | 100 çin | 1 | Through Hole | 0.21 in | 13.84 mm | Tin-Lead | 5.33 mm | ||||
3M (TC) | Breakaway Header | UL94 V-0 | 2.5 A | Unshrouded | Solder | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Square | 29 | Male Pin | 0.745 " | 18.92 mm | Black | 0.1 in | 2.54 mm | 0.235 in | 5.97 mm | All | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | 2.54 çm | 100 çin | 1 | Through Hole | Tin-Lead | ||||||
3M (TC) | Breakaway Header | UL94 V-0 | 2.5 A | Unshrouded | Solder | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Square | 12.95 mm | 0.51 in | 6 | Male Pin | 0.845 " | 21.46 mm | Black | 0.1 in | 2.54 mm | 0.235 in | 5.97 mm | All | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | 2.54 çm | 100 çin | 1 | Through Hole | Tin-Lead | ||||
3M (TC) | Breakaway Header | UL94 V-0 | 2.5 A | Unshrouded | Solder | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Square | 2.79 mm | Male Pin | 0.445 " | 11.3 mm | Black | 0.1 in | 2.54 mm | 0.235 in | 5.97 mm | All | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | 2.54 çm | 100 çin | 1 | Through Hole | 0.11 in | Tin-Lead | |||||
3M (TC) | Breakaway Header | UL94 V-0 | 2.5 A | Unshrouded | Solder | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Square | 15.49 mm | 0.61 in | 14 | Male Pin | 0.945 in | 24 mm | Black | 0.1 in | 2.54 mm | 0.235 in | 5.97 mm | All | Polycyclohexylenedimethylene Terephthalate (PCT) | Copper Alloy | 5.08 µm | 200 µin | 1 | Tin | Through Hole | ||||
3M (TC) | Breakaway Header | UL94 V-0 | 2.5 A | Unshrouded | Solder | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Square | 15.49 mm | 0.61 in | 27 | Male Pin | 0.945 in | 24 mm | Black | 0.1 in | 2.54 mm | 0.235 in | 5.97 mm | All | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Copper Alloy | 2.54 çm | 100 çin | 1 | Through Hole | Tin-Lead | ||||
3M (TC) | Breakaway Header | UL94 V-0 | 2.5 A | Unshrouded | Solder | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Square | 23.11 mm | 0.91 in | 13 | Male Pin | 1.245 in | 31.62 mm | Black | 0.1 in | 2.54 mm | 0.235 in | 5.97 mm | All | Polycyclohexylenedimethylene Terephthalate (PCT) | Copper Alloy | 5.08 µm | 200 µin | 1 | Tin | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.61 | |
| 10 | $ 3.28 | |||
| 100 | $ 2.89 | |||
| 500 | $ 2.46 | |||
| 1000 | $ 2.10 | |||
| 5000 | $ 1.88 | |||
Description
General part information
929834 Series
Connector Header Through Hole 31 position 0.100" (2.54mm)
