929834-05-27

Active

3M (TC)

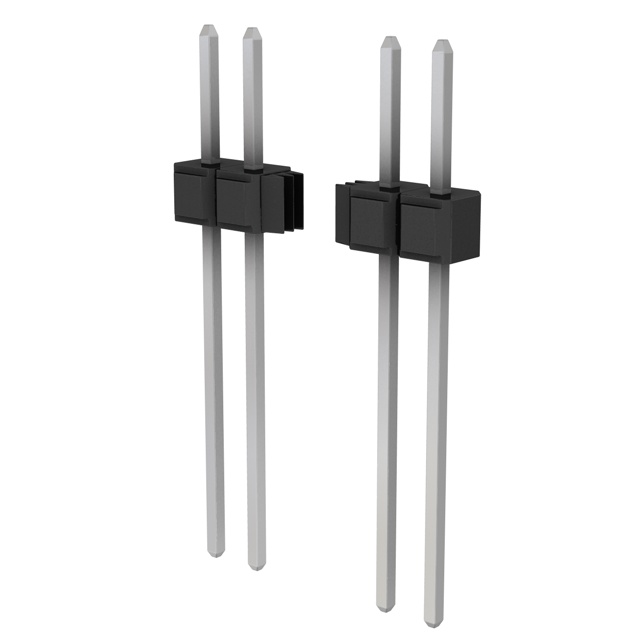

CONN HEADER VERT 27POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

929834-05-27

Active

3M (TC)

CONN HEADER VERT 27POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929834-05-27

Connector Type	Breakaway, Header
Contact Finish - Mating	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating	5.97 mm
Contact Length - Mating [x]	0.235 in
Contact Length - Post	0.61 in
Contact Length - Post	15.49 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	27
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	24 mm
Overall Contact Length	0.945 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

929834 Series

...

Part	Connector Type	Material Flammability Rating	Current Rating (Amps)	Shrouding	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Type	Overall Contact Length	Overall Contact Length	Insulation Color	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Insulation Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish - Post	Mounting Type	Contact Length - Post [x]	Overall Contact Length	Contact Finish - Mating	Contact Length - Post [x]
3M (TC) 929834-07-31-RK	Breakaway Header	UL94 V-0	2.5 A	Unshrouded	Solder	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Square	23.11 mm	0.91 in	31	Male Pin	1.245 in	31.62 mm	Black	0.1 in	2.54 mm	0.235 in	5.97 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Copper Alloy	5.08 µm	200 µin	1	Tin	Through Hole
3M (TC) 929834-01-12-RK	Breakaway Header	UL94 V-0	2.5 A	Unshrouded	Solder	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Square	2.79 mm		12	Male Pin	0.445 "	11.3 mm	Black	0.1 in	2.54 mm	0.235 in	5.97 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Copper Alloy	5.08 µm	200 µin	1	Tin	Through Hole	0.11 in
3M (TC) 929834-02-26	Breakaway Header	UL94 V-0	2.5 A	Unshrouded	Solder	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Square			26	Male Pin		0.545 in	Black	0.1 in	2.54 mm	0.235 in	5.97 mm	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	2.54 çm	100 çin	1		Through Hole	0.21 in	13.84 mm	Tin-Lead	5.33 mm
3M (TC) 929834-02-36	Breakaway Header	UL94 V-0	2.5 A	Unshrouded	Solder	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Square			36	Male Pin		0.545 in	Black	0.1 in	2.54 mm	0.235 in	5.97 mm	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	2.54 çm	100 çin	1		Through Hole	0.21 in	13.84 mm	Tin-Lead	5.33 mm
3M (TC) 929834-03-29	Breakaway Header	UL94 V-0	2.5 A	Unshrouded	Solder	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Square			29	Male Pin	0.745 "	18.92 mm	Black	0.1 in	2.54 mm	0.235 in	5.97 mm	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	2.54 çm	100 çin	1		Through Hole			Tin-Lead
3M (TC) 929834-04-06	Breakaway Header	UL94 V-0	2.5 A	Unshrouded	Solder	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Square	12.95 mm	0.51 in	6	Male Pin	0.845 "	21.46 mm	Black	0.1 in	2.54 mm	0.235 in	5.97 mm	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	2.54 çm	100 çin	1		Through Hole			Tin-Lead
3M (TC) 929834-01-05	Breakaway Header	UL94 V-0	2.5 A	Unshrouded	Solder	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Square	2.79 mm			Male Pin	0.445 "	11.3 mm	Black	0.1 in	2.54 mm	0.235 in	5.97 mm	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	2.54 çm	100 çin	1		Through Hole	0.11 in		Tin-Lead
3M (TC) 929834-05-14-RK	Breakaway Header	UL94 V-0	2.5 A	Unshrouded	Solder	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Square	15.49 mm	0.61 in	14	Male Pin	0.945 in	24 mm	Black	0.1 in	2.54 mm	0.235 in	5.97 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Copper Alloy	5.08 µm	200 µin	1	Tin	Through Hole
3M (TC) 929834-05-27	Breakaway Header	UL94 V-0	2.5 A	Unshrouded	Solder	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Square	15.49 mm	0.61 in	27	Male Pin	0.945 in	24 mm	Black	0.1 in	2.54 mm	0.235 in	5.97 mm	All	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Copper Alloy	2.54 çm	100 çin	1		Through Hole			Tin-Lead
3M (TC) 929834-07-13-RK	Breakaway Header	UL94 V-0	2.5 A	Unshrouded	Solder	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Square	23.11 mm	0.91 in	13	Male Pin	1.245 in	31.62 mm	Black	0.1 in	2.54 mm	0.235 in	5.97 mm	All	Polycyclohexylenedimethylene Terephthalate (PCT)	Copper Alloy	5.08 µm	200 µin	1	Tin	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.35
		10	$ 3.04
		100	$ 2.68
		500	$ 2.28
		1000	$ 1.94
		5000	$ 1.74

Description

General part information

929834 Series

Connector Header Through Hole 27 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
