10090929-S156VLF
ActiveAmphenol ICC (FCI)

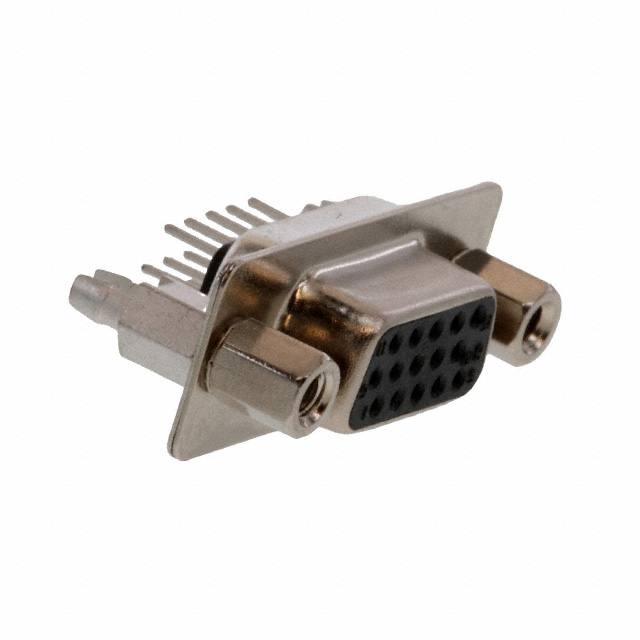

CONN D-SUB HD RCPT 15P VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
10090929-S156VLF
ActiveAmphenol ICC (FCI)
CONN D-SUB HD RCPT 15P VERT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10090929-S156VLF |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 2.5 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Board Side (4-40), Mating Side, Female Screwlock (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | High Density |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.66 | |
| 10 | $ 2.03 | |||
| 25 | $ 1.83 | |||
| 40 | $ 1.74 | |||
| 80 | $ 1.61 | |||
| 230 | $ 1.52 | |||
Description
General part information
10090929 Series
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
