10090929-S264XLF

Active

Amphenol ICC (FCI)

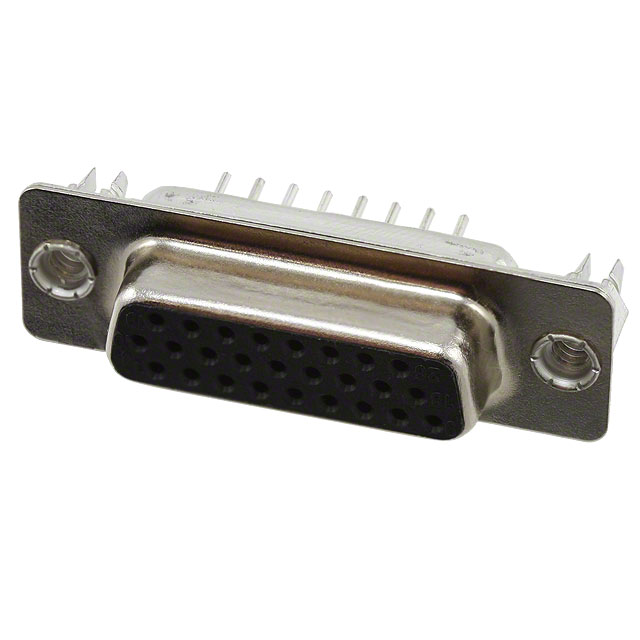

CONN D-SUB HD RCPT 26P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

Documentsd sub productpresentation Other Related Document Datasheet +1

10090929-S264XLF

Active

Amphenol ICC (FCI)

CONN D-SUB HD RCPT 26P VERT SLDR

Deep-Dive with AI

Documentsd sub productpresentation Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10090929-S264XLF

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2.5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder
Voltage Rating	250 VDC

10090929 Series

Part	Flange Feature	Shell Material, Finish	Connector Style	Mounting Type	Number of Positions	Termination	Current Rating (Amps)	Contact Finish Thickness	Material Flammability Rating	Contact Type	Contact Finish	Connector Type	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Color	Voltage Rating	Number of Rows	Shell Size, Connector Layout	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (FCI) 10090929-S784VLF	Board Side (4-40) Mating Side Female Screwlock (4-40)	Nickel Plated Steel	D-Sub High Density	Through Hole	78	Solder	2.5 A	Flash	UL94 V-0	Signal	Gold	Receptacle Female Sockets	Thermoplastic Glass Filled	105 ░C	-55 °C	Copper Alloy	Black	250 VDC
Amphenol ICC (FCI) 10090929-S784XLF	4-40 Board Side	Nickel Plated Steel	D-Sub High Density	Through Hole	78	Solder	2.5 A	Flash	UL94 V-0	Signal	Gold	Receptacle Female Sockets	Thermoplastic Glass Filled	105 ░C	-55 °C	Copper Alloy	Black	250 VDC
Amphenol ICC (FCI) 10090929-S264XLF	4-40 Board Side	Nickel Plated Steel	D-Sub High Density	Through Hole	26	Solder	2.5 A	Flash	UL94 V-0	Signal	Gold	Receptacle Female Sockets	Thermoplastic Glass Filled	105 ░C	-55 °C	Copper Alloy	Black	250 VDC	3	2	(DA A) High Density
Amphenol ICC (FCI) 10090929-S156VLF	Board Side (4-40) Mating Side Female Screwlock (4-40)	Nickel Plated Steel	D-Sub High Density	Through Hole	15	Solder	2.5 A		UL94 V-0	Signal	Gold	Receptacle Female Sockets	Thermoplastic Glass Filled	105 ░C	-55 °C	Copper Alloy	Black	250 VDC	3			DE E	1	High Density	0.76 Ám	30 Áin
Amphenol ICC (FCI) 10090929-S624XLF	4-40 Board Side	Nickel Plated Steel	D-Sub High Density	Through Hole	62	Solder	2.5 A	Flash	UL94 V-0	Signal	Gold	Receptacle Female Sockets	Thermoplastic Glass Filled	105 ░C	-55 °C	Copper Alloy	Black	250 VDC	3	4
Amphenol ICC (FCI) 10090929-S266XLF	4-40 Board Side	Nickel Plated Steel	D-Sub High Density	Through Hole	26	Solder	2.5 A		UL94 V-0	Signal	Gold	Receptacle Female Sockets	Thermoplastic Glass Filled	105 ░C	-55 °C	Copper Alloy	Black	250 VDC	3	2	(DA A) High Density				0.76 Ám	30 Áin
Amphenol ICC (FCI) 10090929-S786VLF	Board Side (4-40) Mating Side Female Screwlock (4-40)	Nickel Plated Steel	D-Sub High Density	Through Hole	78	Solder	2.5 A		UL94 V-0	Signal	Gold	Receptacle Female Sockets	Thermoplastic Glass Filled	105 ░C	-55 °C	Copper Alloy	Black	250 VDC							0.76 Ám	30 Áin
Amphenol ICC (FCI) 10090929-S626VLF	Board Side (4-40) Mating Side Female Screwlock (4-40)	Nickel Plated Steel	D-Sub High Density	Through Hole	62	Solder	2.5 A		UL94 V-0	Signal	Gold	Receptacle Female Sockets	Thermoplastic Glass Filled	105 ░C	-55 °C	Copper Alloy	Black	250 VDC	3	4					0.76 Ám	30 Áin
Amphenol ICC (FCI) 10090929-S154VLF	Board Side (4-40) Mating Side Female Screwlock (4-40)	Nickel Plated Steel	D-Sub High Density	Through Hole	15	Solder	2.5 A	Flash	UL94 V-0	Signal	Gold	Receptacle Female Sockets	Thermoplastic Glass Filled	105 ░C	-55 °C	Copper Alloy	Black	250 VDC	3			DE E	1	High Density
Amphenol ICC (FCI) 10090929-H154VLF	Board Side (4-40) Mating Side Female Screwlock (4-40)	Nickel Plated Steel	D-Sub High Density	Through Hole	15	Solder	2.5 A	Flash	UL94 V-0	Signal	Gold	Receptacle Female Sockets	Thermoplastic Glass Filled	125 °C	-55 °C	Copper Alloy	Black	250 VDC	3			DE E	1	High Density
