M17/13-RG316 COAX

Search across all available documentation for this part.

Active

Belden Inc.

M17/13-RG316 COAX

Technical Specifications

Parameters and characteristics for this part

Specification	84316 001500

Cable Group	RG-316
Cable Type	Coaxial
Conductor Material	Silver Coated, Steel, Copper Covered
Conductor Strand	34 AWG, 7 Strands
Dielectric Diameter [diameter]	1.52 mm
Dielectric Diameter [diameter]	0.06 in
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	2.48 mm
Jacket (Insulation) Diameter [diameter]	0.098 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Brown
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	95 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Usage	Aerospace
VoP, Velocity of Propagation	70
Wire Gauge	26 AWG

Part	Impedance	Conductor Material	Length [x]	Length [x]	Cable Type	Dielectric Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Conductor Strand	Shield Material	VoP, Velocity of Propagation	Operating Temperature [Max]	Operating Temperature [Min]	Shield Coverage	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Length	Length	Cable Group
Belden Inc. 84316 001100	50 Ohms	Copper Covered Silver Coated Steel	100 ft	30.48 m	Coaxial	Tetrafluoroethylene (TFE)	1.47 mm	0.058 in	Fluorinated Ethylene-Propylene (FEP)	26 AWG	Brown	7 Strands 34 AWG	Copper Silver Coated	69.5	200 °C	-70 °C	95 %	Braid	2.44 mm	0.096 in
Belden Inc. 84316 001500	50 Ohms	Copper Covered Silver Coated Steel			Coaxial	Polytetrafluoroethylene (PTFE)	1.52 mm	0.06 in	Fluorinated Ethylene-Propylene (FEP)	26 AWG	Brown	7 Strands 34 AWG	Copper Silver Coated	70	200 °C	-70 °C	95 %	Braid	2.48 mm	0.098 in	Aerospace	152.4 m	6000 in	RG-316

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.40

General part information

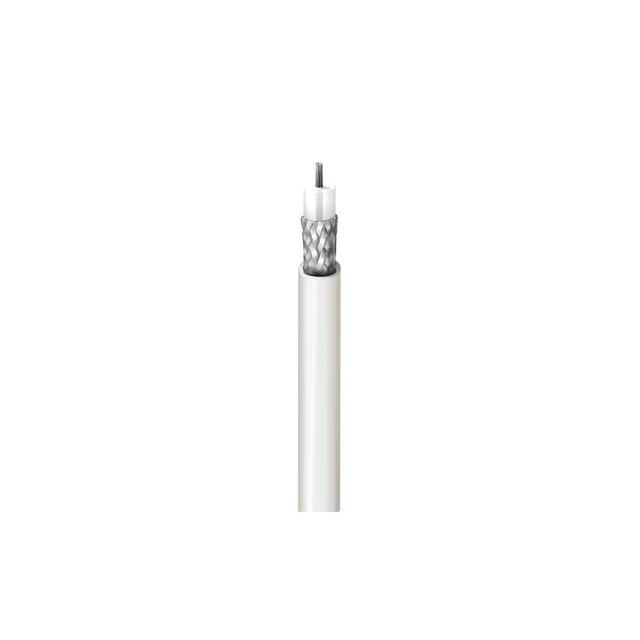

Coaxial Cable 26 AWG RG-316 500.0' (152.40m) 50 Ohms
