84316 001100

Active

Belden Inc.

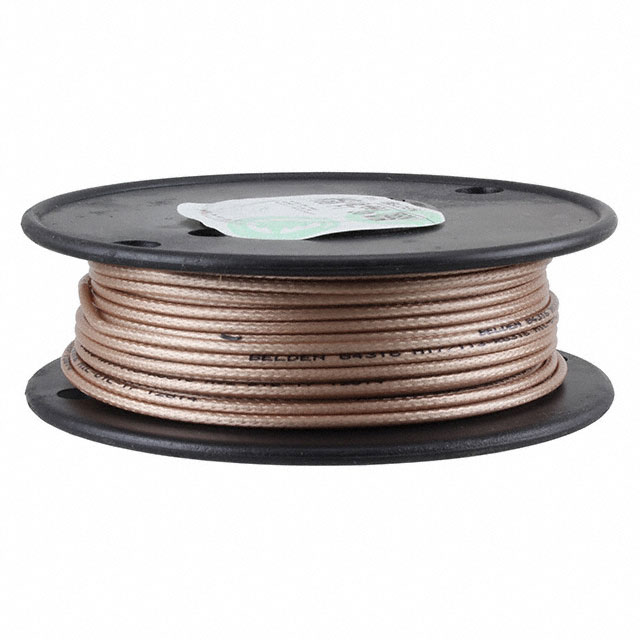

COAXIAL CABLE, MIL-C-17G, RG316, 26 AWG, 50 OHM, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

84316 001100

Active

Belden Inc.

COAXIAL CABLE, MIL-C-17G, RG316, 26 AWG, 50 OHM, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	84316 001100

Cable Type	Coaxial
Conductor Material	Silver Coated, Steel, Copper Covered
Conductor Strand	34 AWG, 7 Strands
Dielectric Diameter [diameter]	1.47 mm
Dielectric Diameter [diameter]	0.058 in
Dielectric Material	Tetrafluoroethylene (TFE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	2.44 mm
Jacket (Insulation) Diameter [diameter]	0.096 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Brown
Length [x]	100 ft
Length [x]	30.48 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	95 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
VoP, Velocity of Propagation	69.5
Wire Gauge	26 AWG

84316 Series

Part	Impedance	Conductor Material	Length [x]	Length [x]	Cable Type	Dielectric Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Conductor Strand	Shield Material	VoP, Velocity of Propagation	Operating Temperature [Max]	Operating Temperature [Min]	Shield Coverage	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Length	Length	Cable Group
Belden Inc. 84316 001100	50 Ohms	Copper Covered Silver Coated Steel	100 ft	30.48 m	Coaxial	Tetrafluoroethylene (TFE)	1.47 mm	0.058 in	Fluorinated Ethylene-Propylene (FEP)	26 AWG	Brown	7 Strands 34 AWG	Copper Silver Coated	69.5	200 °C	-70 °C	95 %	Braid	2.44 mm	0.096 in
Belden Inc. 84316 001500	50 Ohms	Copper Covered Silver Coated Steel			Coaxial	Polytetrafluoroethylene (PTFE)	1.52 mm	0.06 in	Fluorinated Ethylene-Propylene (FEP)	26 AWG	Brown	7 Strands 34 AWG	Copper Silver Coated	70	200 °C	-70 °C	95 %	Braid	2.48 mm	0.098 in	Aerospace	152.4 m	6000 in	RG-316

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 578.04
		2	$ 549.52
		3	$ 533.37
		5	$ 513.58
		7	$ 500.86
		10	$ 487.66
Newark	Spool of 100	1	$ 644.06
		5	$ 619.15
		10	$ 597.80

Description

General part information

84316 Series

The 84316 001100 is a 100ft RG316 Coaxial Cable with 26AWG stranded (7 x 34) silver-plated copper-covered steel conductor, TFE PTFE insulation, silver-plated copper braid shield (95% coverage) and brown FEP jacket. This coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, they are used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna. Coaxial cable (coax) is typically identified or classified according to its impedance or RG-type. Belden® coaxial cable is tested with equipment that simulates every known environmental and electrical performance condition. As a result, this cable can be counted on for positive, reliable and trouble-free operation.
