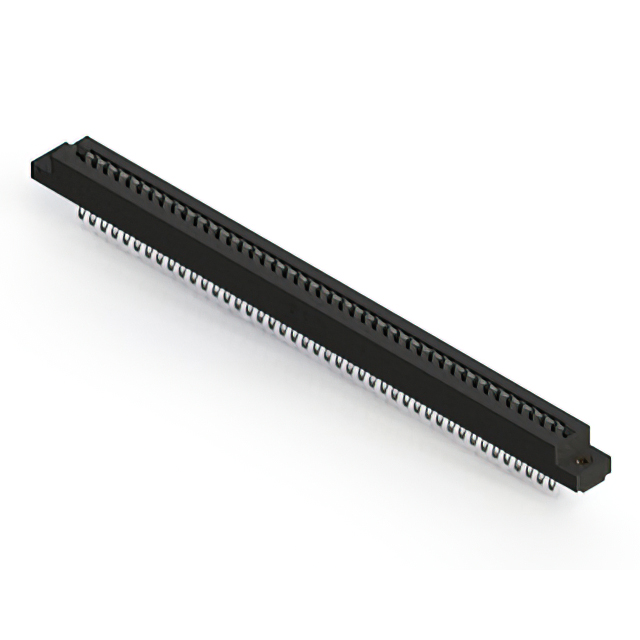

CONN EDGE DUAL FMALE 86POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-086-455-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 86POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-086-455-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 86 |
| Number of Positions/Bay/Row [custom] | 43 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
857-086 Series
...
| Part | Number of Positions | Gender | Pitch [x] | Pitch [x] | Flange Feature | Read Out | Contact Finish Thickness | Contact Finish Thickness | Card Type | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Finish | Mounting Type | Termination | Contact Type | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Contact Material | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 86 | Female | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Dual | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 2 | Gold | Through Hole | Wire Wrap | Semi Bellows | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | 43 | |||||
EDAC Inc. | 86 | Female | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Single | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 2 | Tin | Through Hole Right Angle | Solder | Semi Bellows | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | 43 | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 86 | Female | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 2 | Tin | Board Edge Straddle Mount | Solder | Semi Bellows | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | 43 | Card Extender | ||||||
EDAC Inc. | 86 | Female | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Single | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 2 | Tin | Through Hole Right Angle | Solder | Semi Bellows | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | 43 | 3.96 mm | 0.156 in | |||||
EDAC Inc. | 86 | Female | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 2 | Tin | Board Edge Straddle Mount | Solder | Semi Bellows | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | 43 | Card Extender | ||||||
EDAC Inc. | 86 | Female | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Dual | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 2 | Tin | Through Hole | Solder | Semi Bellows | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | 43 | 3.96 mm | 0.156 in | |||||
EDAC Inc. | 86 | Female | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Dual | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 2 | Tin | Through Hole | Solder Eyelet(s) | Semi Bellows | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | 43 | 3.96 mm | 0.156 in | |||||
EDAC Inc. | 86 | Female | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Dual | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 2 | Tin | Through Hole | Wire Wrap | Semi Bellows | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | 43 | 3.96 mm | 0.156 in | |||||
EDAC Inc. | 86 | Female | 0.156 in | 3.96 mm | Floating Bobbin Flush Mount | Dual | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 2 | Tin | Through Hole | Wire Wrap | Semi Bellows | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | 43 | 2.95 mm | 0.116 in | |||||
EDAC Inc. | 86 | Female | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | Dual | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | 2 | Tin | Board Edge Straddle Mount | Solder | Semi Bellows | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Copper Alloy | 43 | 3.25 mm | 0.128 in | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
857-086 Series
86 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
