857-086-459-212

Active

EDAC Inc.

CONN EDGE DUAL FMALE 86POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-086-459-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	86
Number of Positions/Bay/Row [custom]	43
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	2

857-086 Series

...

Part	Number of Positions	Gender	Pitch [x]	Pitch [x]	Flange Feature	Read Out	Contact Finish Thickness	Contact Finish Thickness	Card Type	Termination Rows	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Finish	Mounting Type	Termination	Contact Type	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Contact Material	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 857-086-540-207	86	Female	0.156 in	3.96 mm	Flush Mount M3 Threaded Insert Top Opening	Dual	10 Áin	0.25 Ám	Non Specified - Dual Edge	2	125 °C	-40 °C	2	Gold	Through Hole	Wire Wrap	Semi Bellows	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	43
EDAC Inc. 857-086-459-212	86	Female	0.156 in	3.96 mm	Side Mount Opening Unthreaded	Single			Non Specified - Dual Edge	2	125 °C	-40 °C	2	Tin	Through Hole Right Angle	Solder	Semi Bellows	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	43	3.25 mm	0.128 in
EDAC Inc. 857-086-460-208	86	Female	0.156 in	3.96 mm	4-40 Flush Mount Threaded Insert Top Opening	Dual			Non Specified - Dual Edge	2	125 °C	-40 °C	2	Tin	Board Edge Straddle Mount	Solder	Semi Bellows	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	43			Card Extender
EDAC Inc. 857-086-458-204	86	Female	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Single			Non Specified - Dual Edge	2	125 °C	-40 °C	2	Tin	Through Hole Right Angle	Solder	Semi Bellows	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	43				3.96 mm	0.156 in
EDAC Inc. 857-086-455-208	86	Female	0.156 in	3.96 mm	4-40 Flush Mount Threaded Insert Top Opening	Dual			Non Specified - Dual Edge	2	125 °C	-40 °C	2	Tin	Board Edge Straddle Mount	Solder	Semi Bellows	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	43			Card Extender
EDAC Inc. 857-086-420-204	86	Female	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Dual			Non Specified - Dual Edge	2	125 °C	-40 °C	2	Tin	Through Hole	Solder	Semi Bellows	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	43				3.96 mm	0.156 in
EDAC Inc. 857-086-400-204	86	Female	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Dual			Non Specified - Dual Edge	2	125 °C	-40 °C	2	Tin	Through Hole	Solder Eyelet(s)	Semi Bellows	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	43				3.96 mm	0.156 in
EDAC Inc. 857-086-442-204	86	Female	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Dual			Non Specified - Dual Edge	2	125 °C	-40 °C	2	Tin	Through Hole	Wire Wrap	Semi Bellows	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	43				3.96 mm	0.156 in
EDAC Inc. 857-086-442-203	86	Female	0.156 in	3.96 mm	Floating Bobbin Flush Mount	Dual			Non Specified - Dual Edge	2	125 °C	-40 °C	2	Tin	Through Hole	Wire Wrap	Semi Bellows	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	43				2.95 mm	0.116 in
EDAC Inc. 857-086-455-212	86	Female	0.156 in	3.96 mm	Side Mount Opening Unthreaded	Dual			Non Specified - Dual Edge	2	125 °C	-40 °C	2	Tin	Board Edge Straddle Mount	Solder	Semi Bellows	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Copper Alloy	43	3.25 mm	0.128 in	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 142.38

Description

General part information

857-086 Series

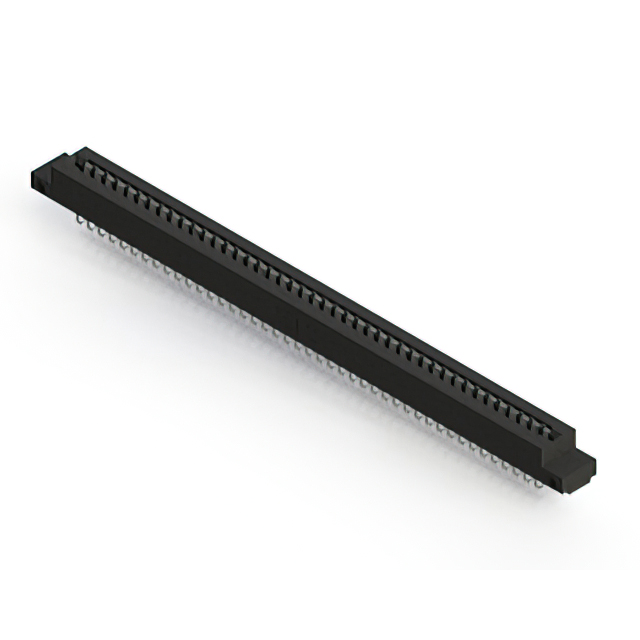

86 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
