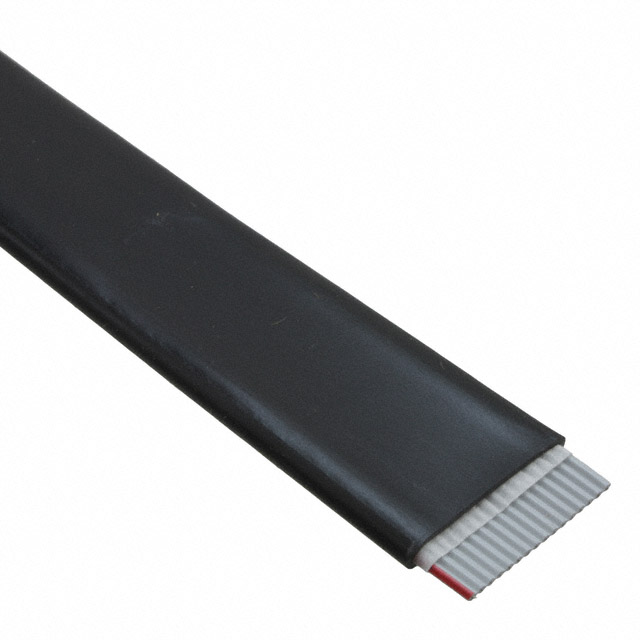

3603/16 100

Active

3M (TC)

CBL RIBN 16COND 0.05 GRAY 1'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet cable Mating Guide

3603/16 100

Active

3M (TC)

CBL RIBN 16COND 0.05 GRAY 1'

Deep-Dive with AI

DocumentsDatasheet cable Mating Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3603/16 100

Cable Type	Flat Cable, Flat Jacket
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1 ft
Length	304.8 mm
Number of Conductors	16
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2912
Ribbon Thickness	0.1 in
Ribbon Thickness	2.54 mm
Ribbon Width	22.4 mm
Ribbon Width	0.882 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3603 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Cable Type	Insulation Resistance	Ribbon Width	Ribbon Width	Voltage	Wire Gauge	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	Ribbon Thickness	Ribbon Thickness	First Conductor Mark	Conductor Material	Length [x]	Length [x]	Shielding	Jacket Color	Number of Conductors	Length	Length	Length	Spool Size	Spool Size	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]
3M (TC) 3603/60	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	3.079 in	78.2 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	100 ft	30.48 m	Unshielded	Gray	60
3M (TC) 3603/14 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	0.78 in	19.81 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	10 ft 100 ft	3.05 m 30.48 m	Unshielded	Gray	14	Enter Number of Feet in Order Quantity	1 ft	304.8 mm	30.48 m	100 ft
3M (TC) 3603/64 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm			300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	100 ft	30.48 m	Unshielded	Gray	64						3.28 in	83.31 mm
3M (TC) 3603/36	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	1.882 "	47.8 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	100 ft	30.48 m	Unshielded	Gray	36
3M (TC) 3603/34 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	1.78 "	45.21 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	10 ft	3.05 m	Unshielded	Gray	34		50 ft	15.24 m
3M (TC) 3603/16 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	0.882 in	22.4 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned			Unshielded	Gray	16		1 ft	304.8 mm
3M (TC) 3603/26 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	1.382 in	35.1 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	100 ft	30.48 m	Unshielded	Gray	26
3M (TC) 3603/40 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	2.08 in	52.83 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	100 ft	30.48 m	Unshielded	Gray	40
3M (TC) 3603/10 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	0.58 in	14.73 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned			Unshielded	Gray	10		1 ft 50 ft	15.24 m 304.8 mm
3M (TC) 3603/25 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm			300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	100 ft	30.48 m	Unshielded	Gray	25								1.331 in	33.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.26
		5	$ 4.37
		10	$ 4.03
		25	$ 3.62
		50	$ 3.33
		100	$ 3.08

Description

General part information

3603 Series

Flat Ribbon Cable Gray 16 Conductors 0.050" (1.27mm) Flat Cable, Flat Jacket 1.00' (304.80mm)
