3603/14 100

Active

3M (TC)

CBL RIBN 14COND 0.05 GRY FEET

Deep-Dive with AI

Search across all available documentation for this part.

Documentscable Mating Guide Datasheet

3603/14 100

Active

3M (TC)

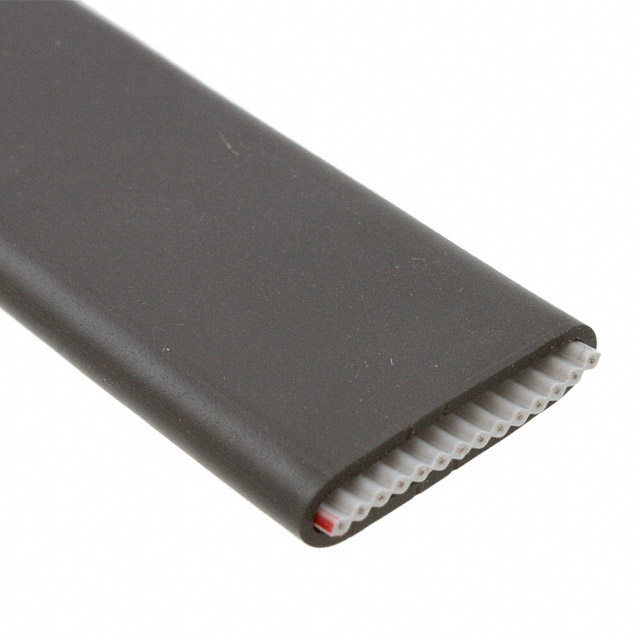

CBL RIBN 14COND 0.05 GRY FEET

Deep-Dive with AI

Documentscable Mating Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3603/14 100

Cable Type	Flat Cable, Flat Jacket
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Length	1 ft
Length	304.8 mm
Length [x]	3.05 m, 30.48 m
Length [x]	10 ft, 100 ft
Number of Conductors	14
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2912
Ribbon Thickness	0.1 in
Ribbon Thickness	2.54 mm
Ribbon Width	0.78 in
Ribbon Width	19.81 mm
Shielding	Unshielded
Spool Size	30.48 m
Spool Size	100 ft
Voltage	300 V
Wire Gauge	28 AWG

3603 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Cable Type	Insulation Resistance	Ribbon Width	Ribbon Width	Voltage	Wire Gauge	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	Ribbon Thickness	Ribbon Thickness	First Conductor Mark	Conductor Material	Length [x]	Length [x]	Shielding	Jacket Color	Number of Conductors	Length	Length	Length	Spool Size	Spool Size	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]
3M (TC) 3603/60	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	3.079 in	78.2 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	100 ft	30.48 m	Unshielded	Gray	60
3M (TC) 3603/14 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	0.78 in	19.81 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	10 ft 100 ft	3.05 m 30.48 m	Unshielded	Gray	14	Enter Number of Feet in Order Quantity	1 ft	304.8 mm	30.48 m	100 ft
3M (TC) 3603/64 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm			300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	100 ft	30.48 m	Unshielded	Gray	64						3.28 in	83.31 mm
3M (TC) 3603/36	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	1.882 "	47.8 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	100 ft	30.48 m	Unshielded	Gray	36
3M (TC) 3603/34 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	1.78 "	45.21 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	10 ft	3.05 m	Unshielded	Gray	34		50 ft	15.24 m
3M (TC) 3603/16 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	0.882 in	22.4 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned			Unshielded	Gray	16		1 ft	304.8 mm
3M (TC) 3603/26 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	1.382 in	35.1 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	100 ft	30.48 m	Unshielded	Gray	26
3M (TC) 3603/40 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	2.08 in	52.83 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	100 ft	30.48 m	Unshielded	Gray	40
3M (TC) 3603/10 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm	0.58 in	14.73 mm	300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned			Unshielded	Gray	10		1 ft 50 ft	15.24 m 304.8 mm
3M (TC) 3603/25 100	-20 C	80 C	7	36 AWG	UL Style 2912	Flat Cable Flat Jacket	10 GOhm			300 V	28 AWG	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	0.1 in	2.54 mm	Red	Copper Tinned	100 ft	30.48 m	Unshielded	Gray	25								1.331 in	33.8 mm
