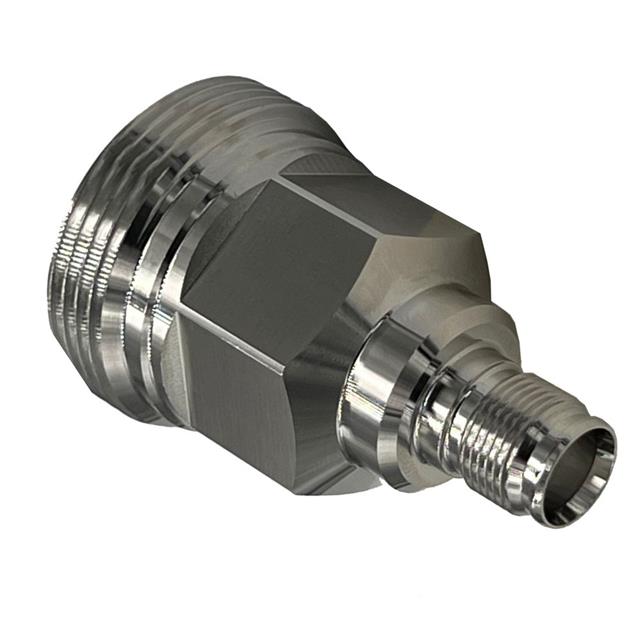

7-16 JACK TO NEX10 JACK ADAPTER

Search across all available documentation for this part.

Active

Amphenol RF

7-16 JACK TO NEX10 JACK ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	AD-N10J716J-1

Adapter Series	NEX10, 7/16
Adapter Type	Jack to Jack
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	7/16 Jack, Female Socket
Convert To (Adapter End)	NEX10 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500, 100
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Conversion Type	Dielectric Material	Mating Cycles	Mounting Type	Center Contact Plating	Adapter Type	Adapter Series [Max]	Adapter Series [Min]	Body Finish	Style	Convert From (Adapter End)	Convert To (Adapter End)	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Body Material	Frequency - Max [Max]	Center Gender	Fastening Type	Adapter Series
Amphenol RF AD-N10PNJ-2	Between Series	Polytetrafluoroethylene (PTFE)	100 500	Free Hanging (In-Line)	Silver	Plug to Jack	N	NEX10	Tin	Straight	NEX10 Plug Male Pin	Female Socket N Jack	Copper Alloy	85 °C	-40 °C	50 Ohms	Brass	6000 MHz
Amphenol RF AD-N10J716J-1	Between Series	Polytetrafluoroethylene (PTFE)	100 500	Free Hanging (In-Line)		Jack to Jack				Straight	7/16 Jack Female Socket	Female Socket NEX10 Jack	Beryllium Copper	85 °C	-40 °C	50 Ohms	Brass	6000 MHz	Female to Female	Snap-On Threaded	7/16 NEX10
