AD-N10PNJ-2

Active

Amphenol RF

RF / COAXIAL ADAPTER, N, JACK, NEX10, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

AD-N10PNJ-2

Active

Amphenol RF

RF / COAXIAL ADAPTER, N, JACK, NEX10, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AD-N10PNJ-2

Adapter Series [Max]	N
Adapter Series [Min]	NEX10
Adapter Type	Plug to Jack
Body Finish	Tin
Body Material	Brass
Center Contact Material	Copper Alloy
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	NEX10 Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500, 100
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

AD-N10 Series

Part	Conversion Type	Dielectric Material	Mating Cycles	Mounting Type	Center Contact Plating	Adapter Type	Adapter Series [Max]	Adapter Series [Min]	Body Finish	Style	Convert From (Adapter End)	Convert To (Adapter End)	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Body Material	Frequency - Max [Max]	Center Gender	Fastening Type	Adapter Series
Amphenol RF AD-N10PNJ-2	Between Series	Polytetrafluoroethylene (PTFE)	100 500	Free Hanging (In-Line)	Silver	Plug to Jack	N	NEX10	Tin	Straight	NEX10 Plug Male Pin	Female Socket N Jack	Copper Alloy	85 °C	-40 °C	50 Ohms	Brass	6000 MHz
Amphenol RF AD-N10J716J-1	Between Series	Polytetrafluoroethylene (PTFE)	100 500	Free Hanging (In-Line)		Jack to Jack				Straight	7/16 Jack Female Socket	Female Socket NEX10 Jack	Beryllium Copper	85 °C	-40 °C	50 Ohms	Brass	6000 MHz	Female to Female	Snap-On Threaded	7/16 NEX10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 62.37
		10	$ 57.23
		25	$ 55.03
		50	$ 53.20
		100	$ 50.26
Newark	Each	1	$ 74.83
		5	$ 73.32
		10	$ 71.05
		25	$ 69.16
		50	$ 65.38
		100	$ 62.36
		250	$ 56.69

Description

General part information

AD-N10 Series

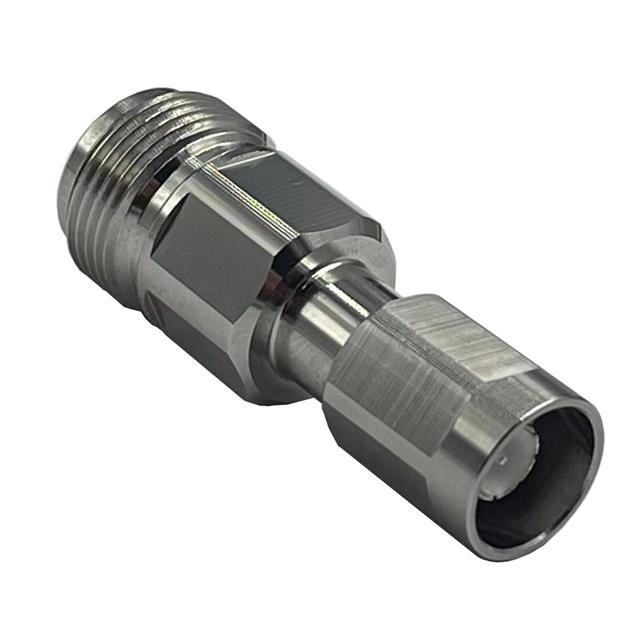

AD-N10PNJ-2 is a Nex10 plug to N-type jack straight adapter. Amphenol RF offers a variety of between-series Nex10 adapters capable of superior low PIM performance up to 6GHz. This lightweight, threaded interface features a compact design that allows for more connection density in comparison to other connectors or adapters. The small footprint of this series makes it ideal for small cells, distributed antenna systems (DAS) and MIMOapplications. Nex10 adapters can be used where RF signals need to be combined or distributed to an antenna in multioperator, multiband DAS applications. These adapters are designed to solve passive intermodulation (PIM) in a network to reduce interference that can degrade the network quality. Applications include antennas, small cell, MIMO, distributed antenna systems (DAS), radios, filters, test & measurement, 5G/LTE.
