10129383-912002BLF
ActiveAmphenol ICC (FCI)

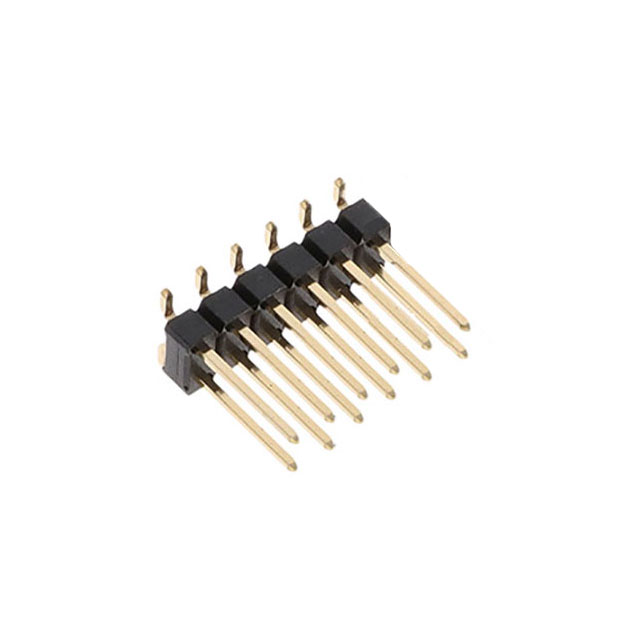

CONN HEADER SMD 12POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
10129383-912002BLF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD 12POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10129383-912002BLF |
|---|---|
| Applications | Industrial, Medical, General Purpose, Telecommunications |
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1 µin |
| Contact Finish Thickness - Mating | 0.025 µm |
| Contact Length - Mating [x] | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
10129383 Series
| Part | Material Flammability Rating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Termination | Connector Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Shape | Number of Rows | Shrouding | Number of Positions | Contact Length - Mating [x] | Contact Length - Mating | Contact Finish - Mating | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Features | Contact Type | Applications | Insulation Material | Contact Material | Fastening Type | Insulation Color | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Mating [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | UL94 V-0 | Surface Mount | 105 ░C | -55 °C | All | Solder | Cuttable Header | 2.54 mm | 0.1 in | Square | 2 | Unshrouded | 6 | 0.23 in | 5.84 mm | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | 3 A | Pick and Place | Male Pin | General Purpose Industrial Medical Telecommunications | Thermoplastic | Copper Alloy | Push-Pull | Black | Board to Board Cable | 1 µin | 0.025 µm | ||
Amphenol ICC (FCI) | UL94 V-0 | Surface Mount | 105 ░C | -55 °C | All | Solder | Cuttable Header | 2.54 mm | 0.1 in | Square | 2 | Unshrouded | 4 | 0.23 in | 5.84 mm | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | 3 A | Male Pin | General Purpose Industrial Medical Telecommunications | Thermoplastic | Copper Alloy | Push-Pull | Black | Board to Board Cable | 1 µin | 0.025 µm | |||
Amphenol ICC (FCI) | UL94 V-0 | Surface Mount | 105 ░C | -55 °C | All | Solder | Cuttable Header | 2.54 mm | 0.1 in | Square | 2 | Unshrouded | 12 | 0.318 " | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | 3 A | Pick and Place | Male Pin | General Purpose Industrial Medical Telecommunications | Thermoplastic | Copper Alloy | Push-Pull | Black | Board to Board Cable | 1 µin | 0.025 µm | 8.08 mm | ||
Amphenol ICC (FCI) | UL94 V-0 | Surface Mount | 105 ░C | -55 °C | All | Solder | Cuttable Header | 2.54 mm | 0.1 in | Square | 2 | Unshrouded | 6 | 0.318 " | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | 3 A | Pick and Place | Male Pin | General Purpose Industrial Medical Telecommunications | Thermoplastic | Copper Alloy | Push-Pull | Black | Board to Board Cable | 1 µin | 0.025 µm | 8.08 mm | ||
Amphenol ICC (FCI) | UL94 V-0 | Surface Mount | 105 ░C | -55 °C | All | Solder | Cuttable Header | 2.54 mm | 0.1 in | Square | 2 | Unshrouded | 8 | 0.318 " | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | 3 A | Pick and Place | Male Pin | General Purpose Industrial Medical Telecommunications | Thermoplastic | Copper Alloy | Push-Pull | Black | Board to Board Cable | 1 µin | 0.025 µm | 8.08 mm | ||
Amphenol ICC (FCI) | UL94 V-0 | Surface Mount | 105 ░C | -55 °C | All | Solder | Cuttable Header | 2.54 mm | 0.1 in | Square | 2 | Unshrouded | 0.318 " | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | 3 A | Pick and Place | Male Pin | General Purpose Industrial Medical Telecommunications | Thermoplastic | Copper Alloy | Push-Pull | Black | Board to Board Cable | 1 µin | 0.025 µm | 8.08 mm | 16 | ||
Amphenol ICC (FCI) | UL94 V-0 | Surface Mount | 105 ░C | -55 °C | All | Solder | Cuttable Header | 2.54 mm | 0.1 in | Square | 2 | Unshrouded | 8 | 0.23 in | 5.84 mm | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | 3 A | Pick and Place | Male Pin | General Purpose Industrial Medical Telecommunications | Thermoplastic | Copper Alloy | Push-Pull | Black | Board to Board Cable | 1 µin | 0.025 µm | ||
Amphenol ICC (FCI) | UL94 V-0 | Surface Mount | 105 ░C | -55 °C | All | Solder | Cuttable Header | 2.54 mm | 0.1 in | Square | 2 | Unshrouded | 12 | 0.318 " | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | 3 A | Male Pin | General Purpose Industrial Medical Telecommunications | Thermoplastic | Copper Alloy | Push-Pull | Black | Board to Board Cable | 1 µin | 0.025 µm | 8.08 mm | |||
Amphenol ICC (FCI) | UL94 V-0 | Surface Mount | 105 ░C | -55 °C | All | Solder | Cuttable Header | 2.54 mm | 0.1 in | Square | 2 | Unshrouded | 10 | 0.23 in | 5.84 mm | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | 3 A | Male Pin | General Purpose Industrial Medical Telecommunications | Thermoplastic | Copper Alloy | Push-Pull | Black | Board to Board Cable | 1 µin | 0.025 µm | |||
Amphenol ICC (FCI) | UL94 V-0 | Surface Mount | 105 ░C | -55 °C | All | Solder | Cuttable Header | 2.54 mm | 0.1 in | Square | 2 | Unshrouded | 4 | 0.23 in | 5.84 mm | Gold | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | 3 A | Pick and Place | Male Pin | General Purpose Industrial Medical Telecommunications | Thermoplastic | Copper Alloy | Push-Pull | Black | Board to Board Cable | 1 µin | 0.025 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 9600 | $ 0.27 | |
Description
General part information
10129383 Series
Connector Header Surface Mount 12 position 0.100" (2.54mm)
