10129383-908002ALF

Active

Amphenol ICC (FCI)

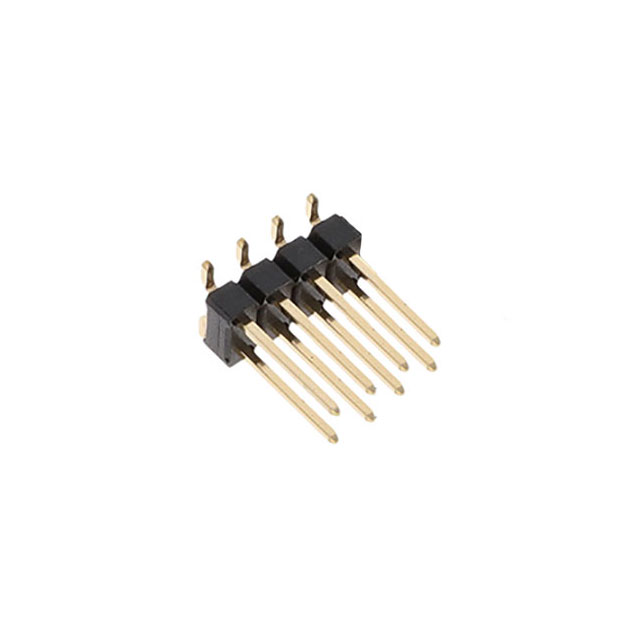

CONN HEADER SMD 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentseconostik_productpresentation Other Related Document 10129381-918001BLF +1

10129383-908002ALF

Active

Amphenol ICC (FCI)

CONN HEADER SMD 8POS 2.54MM

Deep-Dive with AI

Documentseconostik_productpresentation Other Related Document 10129381-918001BLF +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10129383-908002ALF

Applications	Industrial, Medical, General Purpose, Telecommunications
Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

10129383 Series

Part	Material Flammability Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Termination	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Number of Rows	Shrouding	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Features	Contact Type	Applications	Insulation Material	Contact Material	Fastening Type	Insulation Color	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Number of Positions
Amphenol ICC (FCI) 10129383-906001ALF	UL94 V-0	Surface Mount	105 ░C	-55 °C	All	Solder	Cuttable Header	2.54 mm	0.1 in	Square	2	Unshrouded	6	0.23 in	5.84 mm	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	3 A	Pick and Place	Male Pin	General Purpose Industrial Medical Telecommunications	Thermoplastic	Copper Alloy	Push-Pull	Black	Board to Board Cable	1 µin	0.025 µm
Amphenol ICC (FCI) 10129383-904001BLF	UL94 V-0	Surface Mount	105 ░C	-55 °C	All	Solder	Cuttable Header	2.54 mm	0.1 in	Square	2	Unshrouded	4	0.23 in	5.84 mm	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	3 A		Male Pin	General Purpose Industrial Medical Telecommunications	Thermoplastic	Copper Alloy	Push-Pull	Black	Board to Board Cable	1 µin	0.025 µm
Amphenol ICC (FCI) 10129383-912002ALF	UL94 V-0	Surface Mount	105 ░C	-55 °C	All	Solder	Cuttable Header	2.54 mm	0.1 in	Square	2	Unshrouded	12	0.318 "		Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	3 A	Pick and Place	Male Pin	General Purpose Industrial Medical Telecommunications	Thermoplastic	Copper Alloy	Push-Pull	Black	Board to Board Cable	1 µin	0.025 µm	8.08 mm
Amphenol ICC (FCI) 10129383-906002ALF	UL94 V-0	Surface Mount	105 ░C	-55 °C	All	Solder	Cuttable Header	2.54 mm	0.1 in	Square	2	Unshrouded	6	0.318 "		Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	3 A	Pick and Place	Male Pin	General Purpose Industrial Medical Telecommunications	Thermoplastic	Copper Alloy	Push-Pull	Black	Board to Board Cable	1 µin	0.025 µm	8.08 mm
Amphenol ICC (FCI) 10129383-908002ALF	UL94 V-0	Surface Mount	105 ░C	-55 °C	All	Solder	Cuttable Header	2.54 mm	0.1 in	Square	2	Unshrouded	8	0.318 "		Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	3 A	Pick and Place	Male Pin	General Purpose Industrial Medical Telecommunications	Thermoplastic	Copper Alloy	Push-Pull	Black	Board to Board Cable	1 µin	0.025 µm	8.08 mm
Amphenol ICC (FCI) 10129383-916002ALF	UL94 V-0	Surface Mount	105 ░C	-55 °C	All	Solder	Cuttable Header	2.54 mm	0.1 in	Square	2	Unshrouded		0.318 "		Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	3 A	Pick and Place	Male Pin	General Purpose Industrial Medical Telecommunications	Thermoplastic	Copper Alloy	Push-Pull	Black	Board to Board Cable	1 µin	0.025 µm	8.08 mm	16
Amphenol ICC (FCI) 10129383-908001ALF	UL94 V-0	Surface Mount	105 ░C	-55 °C	All	Solder	Cuttable Header	2.54 mm	0.1 in	Square	2	Unshrouded	8	0.23 in	5.84 mm	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	3 A	Pick and Place	Male Pin	General Purpose Industrial Medical Telecommunications	Thermoplastic	Copper Alloy	Push-Pull	Black	Board to Board Cable	1 µin	0.025 µm
Amphenol ICC (FCI) 10129383-912002BLF	UL94 V-0	Surface Mount	105 ░C	-55 °C	All	Solder	Cuttable Header	2.54 mm	0.1 in	Square	2	Unshrouded	12	0.318 "		Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	3 A		Male Pin	General Purpose Industrial Medical Telecommunications	Thermoplastic	Copper Alloy	Push-Pull	Black	Board to Board Cable	1 µin	0.025 µm	8.08 mm
Amphenol ICC (FCI) 10129383-910001BLF	UL94 V-0	Surface Mount	105 ░C	-55 °C	All	Solder	Cuttable Header	2.54 mm	0.1 in	Square	2	Unshrouded	10	0.23 in	5.84 mm	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	3 A		Male Pin	General Purpose Industrial Medical Telecommunications	Thermoplastic	Copper Alloy	Push-Pull	Black	Board to Board Cable	1 µin	0.025 µm
Amphenol ICC (FCI) 10129383-904001ALF	UL94 V-0	Surface Mount	105 ░C	-55 °C	All	Solder	Cuttable Header	2.54 mm	0.1 in	Square	2	Unshrouded	4	0.23 in	5.84 mm	Gold	0.1 in	2.54 mm	0.1 in	2.54 mm	3 A	Pick and Place	Male Pin	General Purpose Industrial Medical Telecommunications	Thermoplastic	Copper Alloy	Push-Pull	Black	Board to Board Cable	1 µin	0.025 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7200	$ 0.34

Description

General part information

10129383 Series

Connector Header Surface Mount 8 position 0.100" (2.54mm)
