R114673020

Active

Radiall USA, Inc.

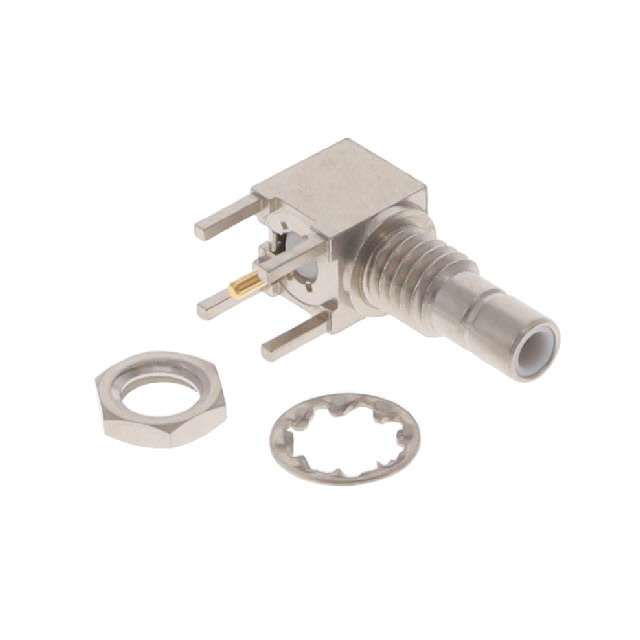

SMB / RIGHT ANGLE BULKHEAD MALE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB / RIGHT ANGLE BULKHEAD MALE

Technical Specifications

Parameters and characteristics for this part

Specification	R114673020

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Contact Termination	Center Contact Plating	Body Finish	Fastening Type	Mounting Feature	Body Material	Connector Type	Frequency - Max [Max]	Mating Cycles	Center Contact Material	Impedance	Connector Style	Housing Color	Dielectric Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Mounting Type	Shield Termination	Features
Radiall USA, Inc. R114673120	Solder	Gold	Gold	Snap-On	Bulkhead - Front Side Nut	Brass	Male Pin Receptacle	4 GHz	500	Brass	50 Ohms	SMB	Gold	Polytetrafluoroethylene (PTFE)	500 V	-65 ░C	165 °C	1	Panel Mount Right Angle Through Hole	Solder
Radiall USA, Inc. R114673020	Solder	Gold	Nickel	Snap-On	Bulkhead - Front Side Nut	Brass	Male Pin Receptacle	4 GHz	500	Beryllium Copper	50 Ohms	SMB	Silver	Polytetrafluoroethylene (PTFE)	335 V	-65 ░C	165 °C	1	Panel Mount Right Angle Through Hole	Solder
Radiall USA, Inc. R114670000W	Solder Cup	Gold	Gold	Snap-On	Bulkhead - Rear Side Nut	Brass	Jack Male Pin	4 GHz	500	Brass	50 Ohms	SMB	Gold	Polytetrafluoroethylene (PTFE)	500 V	-65 ░C	165 °C	1	Panel Mount Right Angle	Solder	Extended Insulation
