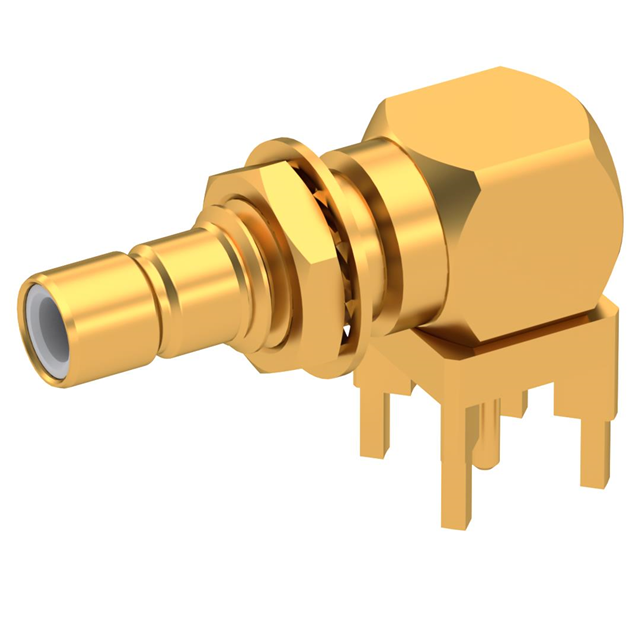

Specification	R114673120

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Receptacle, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	4 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	500 V

R11467 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Mating Cycles	Dielectric Material	Center Contact Plating	Body Finish	Voltage Rating	Center Contact Material	Contact Termination	Mounting Feature	Connector Style	Connector Type	Shield Termination	Frequency - Max	Mounting Type	Number of Ports	Fastening Type	Housing Color	Impedance	Features
Radiall USA, Inc. R114673120W	-65 °C	165 °C	Brass	500 cycles	Polytetrafluoroethylene (PTFE)	Gold	Gold	500 V	Brass	Solder	Bulkhead Front Side Nut	SMB	Male Pin Receptacle	Solder	4 GHz	Panel Mount Right Angle Through Hole	1	Snap-On	Gold	50 Ohm
Radiall USA, Inc. R114673120	-65 °C	165 °C	Brass	500 cycles	Polytetrafluoroethylene (PTFE)	Gold	Gold	500 V	Brass	Solder	Bulkhead Front Side Nut	SMB	Male Pin Receptacle	Solder	4 GHz	Panel Mount Right Angle Through Hole	1	Snap-On	Gold	50 Ohm
Radiall USA, Inc. R114673020	-65 °C	165 °C	Brass	500 cycles	Polytetrafluoroethylene (PTFE)	Gold	Nickel	335 V	Beryllium Copper	Solder	Bulkhead Front Side Nut	SMB	Male Pin Receptacle	Solder	4 GHz	Panel Mount Right Angle Through Hole	1	Snap-On	Silver	50 Ohm
Radiall USA, Inc. R114670000	-65 °C	165 °C	Brass	500 cycles	Polytetrafluoroethylene (PTFE)	Gold	Gold	500 V	Brass	Solder Cup	Bulkhead Rear Side Nut	SMB	Jack Male Pin	Solder	4 GHz	Panel Mount Right Angle	1	Snap-On	Gold	50 Ohm	Extended Insulation
Radiall USA, Inc. R114670000W	-65 °C	165 °C	Brass	500 cycles	Polytetrafluoroethylene (PTFE)	Gold	Gold	500 V	Brass	Solder Cup	Bulkhead Rear Side Nut	SMB	Jack Male Pin	Solder	4 GHz	Panel Mount Right Angle	1	Snap-On	Gold	50 Ohm	Extended Insulation
