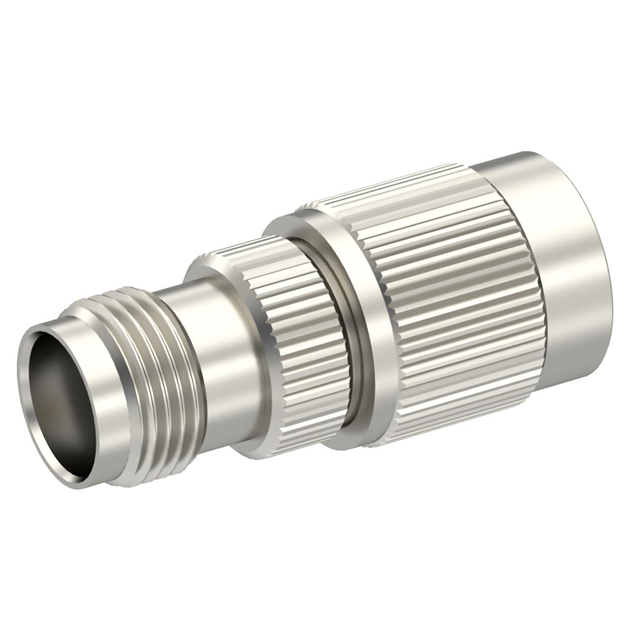

Specification	R143713200

Adapter Series	TNC to TNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Same Series
Convert From (Adapter End)	TNC Jack, Female Socket
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	TNC Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	4 GHz
Impedance	50 Ohm
Insertion Loss	0.18 dB
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

R14371 Series

Part	Adapter Series	Mounting Feature	Frequency - Max	Convert From (Adapter End)	Fastening Type	Mounting Type	Impedance	Adapter Type	Conversion Type	Style	Center Contact Plating	Convert To (Adapter End)	Center Gender	Mating Cycles	Insertion Loss	Center Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Body Material	Body Finish	Convert To (Adapter End) Type	Convert To (Adapter End) Gender
Radiall USA, Inc. R143713000	TNC to TNC	Flange	11 GHz	Female Socket TNC Jack	Threaded	Panel Mount	50 Ohm	Jack to Jack	Same Series	Straight	Gold	Female Socket TNC Jack	Female	500 cycles	0.18 dB	Beryllium Copper	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel
Radiall USA, Inc. R143710700	TNC to TNC	Flange	18 GHz	Female Socket TNC Jack	Threaded	Panel Mount	50 Ohm	Jack to Jack	Same Series	Straight	Gold	Female Socket TNC Jack	Female	500 cycles	0.18 dB	Beryllium Copper	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Stainless Steel
Radiall USA, Inc. R143713200	TNC to TNC		4 GHz	Female Socket TNC Jack	Threaded	Free Hanging (In-Line)	50 Ohm	Plug to Jack	Same Series	Straight	Gold		Female Male	500 cycles	0.18 dB	Beryllium Copper	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel	TNC Plug	Male Pin
Radiall USA, Inc. R143710000	TNC to TNC	Flange	11 GHz	Female Socket TNC Jack	Threaded	Panel Mount	50 Ohm	Jack to Jack	Same Series	Straight	Gold	Female Socket TNC Jack	Female	500 cycles		Beryllium Copper	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel
