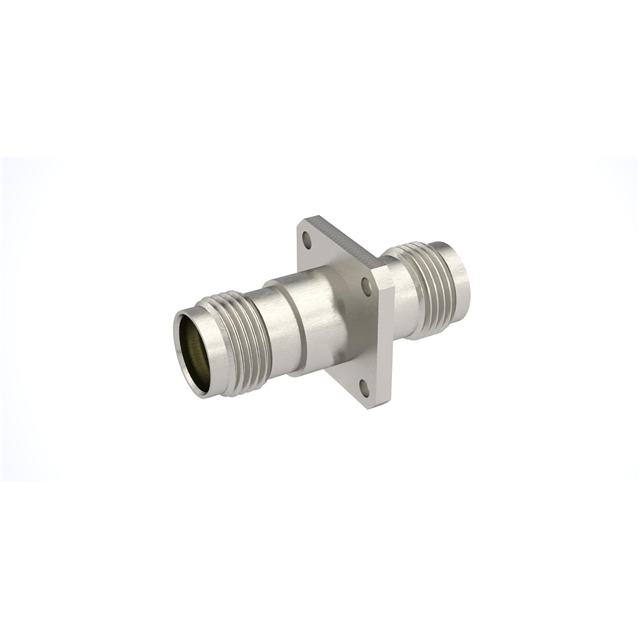

R143710000
ActiveRadiall USA, Inc.
TNC / SQUARE FLANGE FEMALE-FEMAL
Deep-Dive with AI
Search across all available documentation for this part.
R143710000
ActiveRadiall USA, Inc.
TNC / SQUARE FLANGE FEMALE-FEMAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R143710000 |
|---|---|
| Adapter Series | TNC to TNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | TNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, TNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 68.46 | |
| 10 | $ 53.12 | |||
| 25 | $ 48.26 | |||
| 50 | $ 44.99 | |||
| 100 | $ 42.02 | |||
| 250 | $ 38.53 | |||
Description
General part information
R14371 Series
Adapter Coaxial Connector TNC Jack, Female Socket To TNC Jack, Female Socket 50 Ohms
