Technical Specifications
Parameters and characteristics for this part
| Specification | FTS-103-03-L-DV |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 0.065 in |
| Contact Length - Mating | 1.65 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.034 in |
| Insulation Height | 0.86 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
FTS-103 Series
| Part | Insulation Color | Insulation Material | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Number of Rows | Row Spacing - Mating | Row Spacing - Mating | Termination | Pitch - Mating | Pitch - Mating | Style | Contact Finish - Post | Contact Finish - Mating | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Material | Insulation Height | Insulation Height | Connector Type | Fastening Type | Mounting Type | Number of Positions | Contact Shape | Number of Positions Loaded | Material Flammability Rating | Overall Contact Length | Overall Contact Length | Contact Length - Mating [x] | Contact Length - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Black | Liquid Crystal Polymer (LCP) | Unshrouded | 3 µin | 0.076 µm | 0.09 " | 2.29 mm | 2 | 0.05 in | 1.27 mm | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Tin | Gold | 0.065 in | 1.65 mm | -55 °C | 125 °C | Male Pin | Phosphor Bronze | 0.034 in | 0.86 mm | Cuttable Header | Push-Pull | Through Hole | 6 | Square | All | UL94 V-0 | ||||
Samtec Inc. | Black | Liquid Crystal Polymer (LCP) | Unshrouded | 10 çin | 0.25 çm | 0.09 " | 2.29 mm | 2 | 0.05 in | 1.27 mm | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Tin | Gold | 0.065 in | 1.65 mm | -55 °C | 125 °C | Male Pin | Phosphor Bronze | 0.034 in | 0.86 mm | Cuttable Header | Push-Pull | Through Hole | 6 | Square | All | UL94 V-0 | ||||
Samtec Inc. | Black | Liquid Crystal Polymer (LCP) | Unshrouded | 3 µin | 0.076 µm | 0.09 " | 2.29 mm | 2 | 0.05 in | 1.27 mm | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Tin | Gold | 0.15 in | 3.81 mm | -55 °C | 125 °C | Male Pin | Phosphor Bronze | 0.034 in | 0.86 mm | Cuttable Header | Push-Pull | Through Hole | 6 | Square | All | UL94 V-0 | 6.96 mm | 0.274 in | ||
Samtec Inc. | Black | Liquid Crystal Polymer (LCP) | Unshrouded | 10 çin | 0.25 çm | 2 | 0.05 in | 1.27 mm | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Tin | Gold | 0.12 in | 3.05 mm | -55 °C | 125 °C | Male Pin | Phosphor Bronze | 0.034 in | 0.86 mm | Cuttable Header | Push-Pull | Surface Mount | 6 | Square | All | UL94 V-0 | ||||||
Samtec Inc. | Black | Liquid Crystal Polymer (LCP) | Unshrouded | 3 µin | 0.076 µm | 1 | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Tin | Gold | 0.12 in | 3.05 mm | -55 °C | 125 °C | Male Pin | Phosphor Bronze | 0.034 in | 0.86 mm | Cuttable Header | Push-Pull | Surface Mount | Square | All | UL94 V-0 | |||||||||
Samtec Inc. | Black | Liquid Crystal Polymer (LCP) | Unshrouded | 3 µin | 0.076 µm | 2 | 0.05 in | 1.27 mm | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Tin | Gold | -55 °C | 125 °C | Male Pin | Phosphor Bronze | 0.034 in | 0.86 mm | Cuttable Header | Push-Pull | Surface Mount | 6 | Square | All | UL94 V-0 | 1.9 mm | 0.075 in | ||||||
Samtec Inc. | Black | Liquid Crystal Polymer (LCP) | Unshrouded | 3 µin | 0.076 µm | 0.09 " | 2.29 mm | 2 | 0.05 in | 1.27 mm | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Tin | Gold | 0.12 in | 3.05 mm | -55 °C | 125 °C | Male Pin | Phosphor Bronze | 0.034 in | 0.86 mm | Cuttable Header | Push-Pull | Through Hole | 6 | Square | All | UL94 V-0 | 6.2 mm | 0.244 in | ||
Samtec Inc. | Black | Liquid Crystal Polymer (LCP) | Unshrouded | 3 µin | 0.076 µm | 2 | 0.05 in | 1.27 mm | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Tin | Gold | 0.12 in | 3.05 mm | -55 °C | 125 °C | Male Pin | Phosphor Bronze | 0.034 in | 0.86 mm | Cuttable Header | Push-Pull | Surface Mount | 6 | Square | All | UL94 V-0 | ||||||
Samtec Inc. | Black | Liquid Crystal Polymer (LCP) | Unshrouded | 30 Áin | 0.76 Ám | 2 | 0.05 in | 1.27 mm | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Tin | Gold | 0.15 in | 3.81 mm | -55 °C | 125 °C | Male Pin | Phosphor Bronze | 0.034 in | 0.86 mm | Cuttable Header | Push-Pull | Surface Mount | 6 | Square | All | UL94 V-0 | ||||||
Samtec Inc. | Black | Liquid Crystal Polymer (LCP) | Unshrouded | 10 çin | 0.25 çm | 2 | 0.05 in | 1.27 mm | Solder | 0.05 in | 1.27 mm | Board to Board Cable | Tin | Gold | 0.065 in | 1.65 mm | -55 °C | 125 °C | Male Pin | Phosphor Bronze | 0.034 in | 0.86 mm | Cuttable Header | Push-Pull | Surface Mount | 6 | Square | All | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.28 | |
| 10 | $ 1.08 | |||
| 100 | $ 0.97 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.71 | |||
| 5000 | $ 0.62 | |||
| 10000 | $ 0.59 | |||
Description
General part information
FTS-103 Series

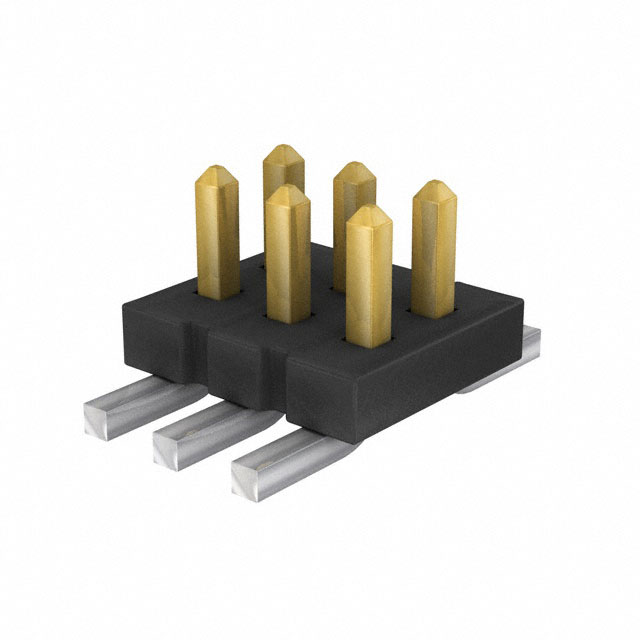

Connector Header Surface Mount 6 position 0.050" (1.27mm)
