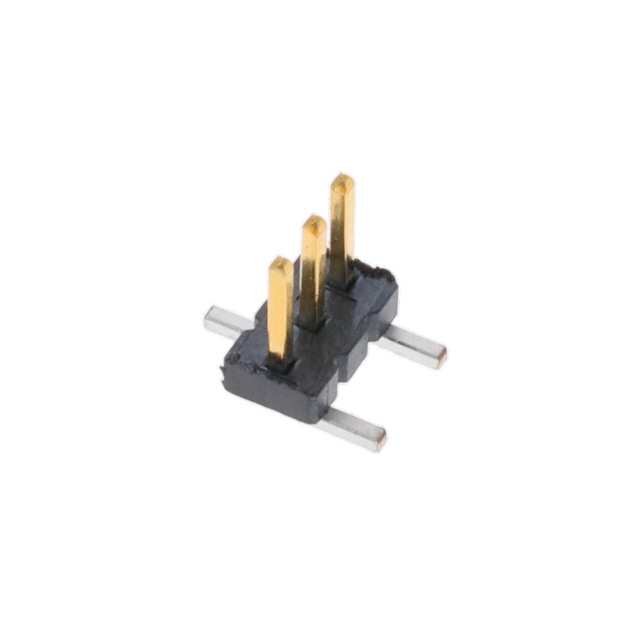

FTS-103-01-F-SV

Active

Samtec Inc.

CONN HEADER SMD 3POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFTS Datasheet FW Series Other Related Documents 03 +2

FTS-103-01-F-SV

Active

Samtec Inc.

CONN HEADER SMD 3POS 1.27MM

Deep-Dive with AI

DocumentsFTS Datasheet FW Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTS-103-01-F-SV

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.034 in
Insulation Height	0.86 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTS-103 Series

Part	Insulation Color	Insulation Material	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Termination	Pitch - Mating	Pitch - Mating	Style	Contact Finish - Post	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Material	Insulation Height	Insulation Height	Connector Type	Fastening Type	Mounting Type	Number of Positions	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. FTS-103-03-F-D	Black	Liquid Crystal Polymer (LCP)	Unshrouded	3 µin	0.076 µm	0.09 "	2.29 mm	2	0.05 in	1.27 mm	Solder	0.05 in	1.27 mm	Board to Board Cable	Tin	Gold	0.065 in	1.65 mm	-55 °C	125 °C	Male Pin	Phosphor Bronze	0.034 in	0.86 mm	Cuttable Header	Push-Pull	Through Hole	6	Square	All	UL94 V-0
Samtec Inc. FTS-103-03-LM-D	Black	Liquid Crystal Polymer (LCP)	Unshrouded	10 çin	0.25 çm	0.09 "	2.29 mm	2	0.05 in	1.27 mm	Solder	0.05 in	1.27 mm	Board to Board Cable	Tin	Gold	0.065 in	1.65 mm	-55 °C	125 °C	Male Pin	Phosphor Bronze	0.034 in	0.86 mm	Cuttable Header	Push-Pull	Through Hole	6	Square	All	UL94 V-0
Samtec Inc. FTS-103-04-F-D	Black	Liquid Crystal Polymer (LCP)	Unshrouded	3 µin	0.076 µm	0.09 "	2.29 mm	2	0.05 in	1.27 mm	Solder	0.05 in	1.27 mm	Board to Board Cable	Tin	Gold	0.15 in	3.81 mm	-55 °C	125 °C	Male Pin	Phosphor Bronze	0.034 in	0.86 mm	Cuttable Header	Push-Pull	Through Hole	6	Square	All	UL94 V-0	6.96 mm	0.274 in
Samtec Inc. FTS-103-01-L-DV	Black	Liquid Crystal Polymer (LCP)	Unshrouded	10 çin	0.25 çm			2	0.05 in	1.27 mm	Solder	0.05 in	1.27 mm	Board to Board Cable	Tin	Gold	0.12 in	3.05 mm	-55 °C	125 °C	Male Pin	Phosphor Bronze	0.034 in	0.86 mm	Cuttable Header	Push-Pull	Surface Mount	6	Square	All	UL94 V-0
Samtec Inc. FTS-103-01-F-SV	Black	Liquid Crystal Polymer (LCP)	Unshrouded	3 µin	0.076 µm			1			Solder	0.05 in	1.27 mm	Board to Board Cable	Tin	Gold	0.12 in	3.05 mm	-55 °C	125 °C	Male Pin	Phosphor Bronze	0.034 in	0.86 mm	Cuttable Header	Push-Pull	Surface Mount		Square	All	UL94 V-0
Samtec Inc. FTS-103-02-F-DV-TR	Black	Liquid Crystal Polymer (LCP)	Unshrouded	3 µin	0.076 µm			2	0.05 in	1.27 mm	Solder	0.05 in	1.27 mm	Board to Board Cable	Tin	Gold			-55 °C	125 °C	Male Pin	Phosphor Bronze	0.034 in	0.86 mm	Cuttable Header	Push-Pull	Surface Mount	6	Square	All	UL94 V-0			1.9 mm	0.075 in
Samtec Inc. FTS-103-01-F-D	Black	Liquid Crystal Polymer (LCP)	Unshrouded	3 µin	0.076 µm	0.09 "	2.29 mm	2	0.05 in	1.27 mm	Solder	0.05 in	1.27 mm	Board to Board Cable	Tin	Gold	0.12 in	3.05 mm	-55 °C	125 °C	Male Pin	Phosphor Bronze	0.034 in	0.86 mm	Cuttable Header	Push-Pull	Through Hole	6	Square	All	UL94 V-0	6.2 mm	0.244 in
Samtec Inc. FTS-103-01-F-DV-TR	Black	Liquid Crystal Polymer (LCP)	Unshrouded	3 µin	0.076 µm			2	0.05 in	1.27 mm	Solder	0.05 in	1.27 mm	Board to Board Cable	Tin	Gold	0.12 in	3.05 mm	-55 °C	125 °C	Male Pin	Phosphor Bronze	0.034 in	0.86 mm	Cuttable Header	Push-Pull	Surface Mount	6	Square	All	UL94 V-0
Samtec Inc. FTS-103-04-S-DV-TR	Black	Liquid Crystal Polymer (LCP)	Unshrouded	30 Áin	0.76 Ám			2	0.05 in	1.27 mm	Solder	0.05 in	1.27 mm	Board to Board Cable	Tin	Gold	0.15 in	3.81 mm	-55 °C	125 °C	Male Pin	Phosphor Bronze	0.034 in	0.86 mm	Cuttable Header	Push-Pull	Surface Mount	6	Square	All	UL94 V-0
Samtec Inc. FTS-103-03-L-DV	Black	Liquid Crystal Polymer (LCP)	Unshrouded	10 çin	0.25 çm			2	0.05 in	1.27 mm	Solder	0.05 in	1.27 mm	Board to Board Cable	Tin	Gold	0.065 in	1.65 mm	-55 °C	125 °C	Male Pin	Phosphor Bronze	0.034 in	0.86 mm	Cuttable Header	Push-Pull	Surface Mount	6	Square	All	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.80
		50	$ 0.70
		100	$ 0.59
		500	$ 0.49
		1000	$ 0.44
