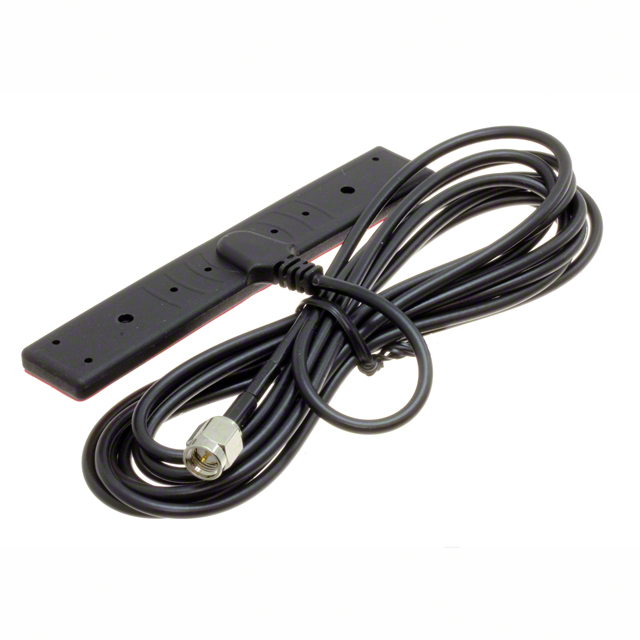

ANT-2/5-HDP-2000-SMA

Active

TE Connectivity Linx

RF ANT 2.4GHZ/5.42GHZ FLAT CTR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANT-2/5-HDP-2000-SMA

Active

TE Connectivity Linx

RF ANT 2.4GHZ/5.42GHZ FLAT CTR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.28
		10	$ 12.94
		25	$ 11.27
		100	$ 9.61
		250	$ 9.31

Description

General part information

ANT-2 Series

2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz Bluetooth, Thread, Wi-Fi, Zigbee™, 802.15.4, 802.11, U-NII Flat Bar RF Antenna 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz 4dBi, 1.5dBi, 1.5dBi SMA Male Adhesive

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANT-2/5-HDP-2000-SMA	ANT-2 Series

Antenna Type	Flat Bar	Flat Bar
Applications	U-NII, 802.15.4, Zigbee™, Bluetooth, 802.11, Wi-Fi, Thread	U-NII, 802.15.4, Zigbee™, Bluetooth, 802.11, Wi-Fi, Thread
Features	Cable - 2m	Cable - 2m
Frequency (Center/Band)	5.8 GHz, 2.5 GHz, 5 GHz, 5.7 GHz, 2.4 GHz	2.4 - 5.8 GHz
Frequency Group	4 GHz	4 GHz
Frequency Group [Max]	3 GHz	3 GHz
Frequency Group [Min]	2 GHz	2 GHz
Frequency Range [Max]	5.88 GHz, 2.5 GHz, 5.72 GHz	2.5 - 5.88 GHz
Frequency Range [Min]	5.72 GHz, 2.4 GHz, 5.12 GHz	2.4 - 5.72 GHz
Gain	1.5 dBic, 4 dBi	1.5 - 4.5 dBi
Height (Max)	-	6.71 mm
Height (Max) [Max]	0.244 "	0.244 - 0.264 in
Height (Max) [Max]	6.2 mm	6.2 mm
Ingress Protection	IP67	IP67
Mounting Type	Adhesive	Adhesive
Number of Bands	3	3
Power - Max [Max]	10 W	10 W
RF Family/Standard	WiFi, Bluetooth, 802.15.4	WiFi, Bluetooth, 802.15.4
Termination	-	RP-SMA Male
VSWR	1.9	1.9

ANT-2 Series

RF ANT 2.4GHZ-2.5GHZ WHIP CTR

Part	Applications	Antenna Type	RF Family/Standard	Height (Max) [Max]	Height (Max)	Gain	Number of Bands	Ingress Protection	VSWR	Mounting Type	Features	Power - Max [Max]	Frequency Range [Max]	Frequency Range [Min]	Termination	Height (Max) [Max]	Frequency (Center/Band)	Frequency Group	Frequency Group [Min]	Frequency Group [Max]
TE Connectivity Linx ANT-2/5-VDP-2000-SMA	802.11, 802.15.4, Bluetooth, Thread, U-NII, Wi-Fi, Zigbee™	Flat Bar	802.15.4, Bluetooth, WiFi	0.264 in	6.71 mm	4.5 dBi	3	IP67	1.9	Adhesive	Cable - 2m	10 W	2.5 GHz	2.4 GHz
TE Connectivity Linx ANT-2/5-HDP-2000-RPS	802.11, 802.15.4, Bluetooth, Thread, U-NII, Wi-Fi, Zigbee™	Flat Bar	802.15.4, Bluetooth, WiFi	0.244 "		1.5 dBic, 4 dBi	3	IP67	1.9	Adhesive	Cable - 2m	10 W	2.5 GHz, 5.72 GHz, 5.88 GHz	2.4 GHz, 5.12 GHz, 5.72 GHz	RP-SMA Male	6.2 mm	2.4 GHz, 2.5 GHz, 5 GHz, 5.7 GHz, 5.8 GHz	4 GHz	2 GHz	3 GHz
TE Connectivity Linx ANT-2/5-HDP-2000-SMA	802.11, 802.15.4, Bluetooth, Thread, U-NII, Wi-Fi, Zigbee™	Flat Bar	802.15.4, Bluetooth, WiFi	0.244 "		1.5 dBic, 4 dBi	3	IP67	1.9	Adhesive	Cable - 2m	10 W	2.5 GHz, 5.72 GHz, 5.88 GHz	2.4 GHz, 5.12 GHz, 5.72 GHz		6.2 mm	2.4 GHz, 2.5 GHz, 5 GHz, 5.7 GHz, 5.8 GHz	4 GHz	2 GHz	3 GHz
TE Connectivity Linx ANT-2/5-VDP-2000-RPS	802.11, 802.15.4, Bluetooth, Thread, U-NII, Wi-Fi, Zigbee™	Flat Bar	802.15.4, Bluetooth, WiFi	0.264 in	6.71 mm	1.5 dBic, 4 dBi	3	IP67	1.9	Adhesive	Cable - 2m	10 W	2.5 GHz, 5.72 GHz, 5.88 GHz	2.4 GHz, 5.12 GHz, 5.72 GHz	RP-SMA Male		2.4 GHz, 2.5 GHz, 5 GHz, 5.7 GHz, 5.8 GHz	4 GHz	2 GHz	3 GHz
