ANT-2/5-VDP-2000-SMA

Active

TE Connectivity Linx

RF ANT 2.4GHZ-2.5GHZ WHIP CTR

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF ANT 2.4GHZ-2.5GHZ WHIP CTR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

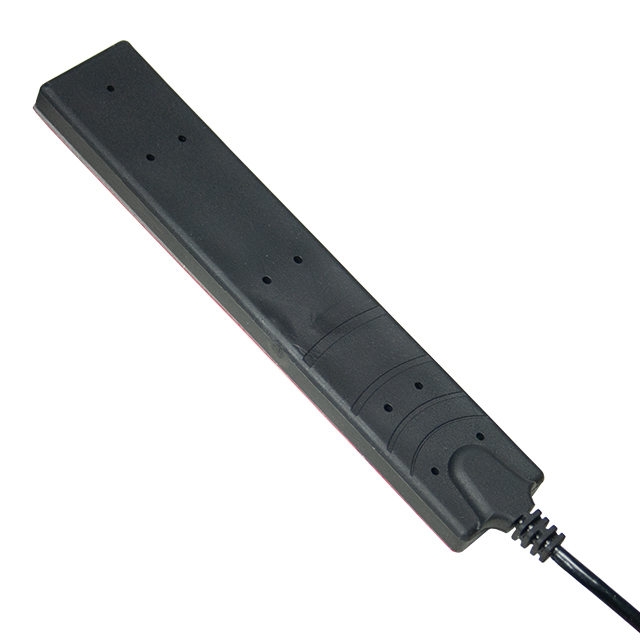

2.45GHz Bluetooth, Thread, Wi-Fi, Zigbee™, 802.15.4, 802.11, U-NII Flat Bar RF Antenna 2.4GHz ~ 2.5GHz 4.5dBi SMA Male Adhesive

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ANT-2/5-VDP-2000-SMA	ANT-2 Series

Antenna Type	Flat Bar	Flat Bar
Applications	U-NII, 802.15.4, Zigbee™, Bluetooth, 802.11, Wi-Fi, Thread	U-NII, 802.15.4, Zigbee™, Bluetooth, 802.11, Wi-Fi, Thread
Features	Cable - 2m	Cable - 2m
Frequency (Center/Band)	-	2.4 - 5.8 GHz
Frequency Group	-	4 GHz
Frequency Group	-	2 GHz
Frequency Group	-	3 GHz
Frequency Range [Max]	2.5 GHz	2.5 - 5.88 GHz
Frequency Range [Min]	2.4 GHz	2.4 - 5.72 GHz
Gain	4.5 dBi	1.5 - 4.5 dBi
Height (Max)	6.71 mm	6.71 mm
Height (Max)	-	6.2 mm
Height (Max) [Max]	0.264 in	0.244 - 0.264 in
Ingress Protection	IP67	IP67
Mounting Type	Adhesive	Adhesive
Number of Bands	3	3
Power - Max [Max]	10 W	10 W
RF Family/Standard	WiFi, Bluetooth, 802.15.4	WiFi, Bluetooth, 802.15.4
Termination	-	RP-SMA Male
VSWR	1.9	1.9

RF ANT 2.4GHZ-2.5GHZ WHIP CTR

Part	Applications	Antenna Type	RF Family/Standard	Height (Max) [Max]	Height (Max)	Gain	Number of Bands	Ingress Protection	VSWR	Mounting Type	Features	Power - Max [Max]	Frequency Range [Max]	Frequency Range [Min]	Termination	Height (Max) [Max]	Frequency (Center/Band)	Frequency Group	Frequency Group [Min]	Frequency Group [Max]
TE Connectivity Linx ANT-2/5-VDP-2000-SMA	802.11, 802.15.4, Bluetooth, Thread, U-NII, Wi-Fi, Zigbee™	Flat Bar	802.15.4, Bluetooth, WiFi	0.264 in	6.71 mm	4.5 dBi	3	IP67	1.9	Adhesive	Cable - 2m	10 W	2.5 GHz	2.4 GHz
TE Connectivity Linx ANT-2/5-HDP-2000-RPS	802.11, 802.15.4, Bluetooth, Thread, U-NII, Wi-Fi, Zigbee™	Flat Bar	802.15.4, Bluetooth, WiFi	0.244 "		1.5 dBic, 4 dBi	3	IP67	1.9	Adhesive	Cable - 2m	10 W	2.5 GHz, 5.72 GHz, 5.88 GHz	2.4 GHz, 5.12 GHz, 5.72 GHz	RP-SMA Male	6.2 mm	2.4 GHz, 2.5 GHz, 5 GHz, 5.7 GHz, 5.8 GHz	4 GHz	2 GHz	3 GHz
TE Connectivity Linx ANT-2/5-HDP-2000-SMA	802.11, 802.15.4, Bluetooth, Thread, U-NII, Wi-Fi, Zigbee™	Flat Bar	802.15.4, Bluetooth, WiFi	0.244 "		1.5 dBic, 4 dBi	3	IP67	1.9	Adhesive	Cable - 2m	10 W	2.5 GHz, 5.72 GHz, 5.88 GHz	2.4 GHz, 5.12 GHz, 5.72 GHz		6.2 mm	2.4 GHz, 2.5 GHz, 5 GHz, 5.7 GHz, 5.8 GHz	4 GHz	2 GHz	3 GHz
TE Connectivity Linx ANT-2/5-VDP-2000-RPS	802.11, 802.15.4, Bluetooth, Thread, U-NII, Wi-Fi, Zigbee™	Flat Bar	802.15.4, Bluetooth, WiFi	0.264 in	6.71 mm	1.5 dBic, 4 dBi	3	IP67	1.9	Adhesive	Cable - 2m	10 W	2.5 GHz, 5.72 GHz, 5.88 GHz	2.4 GHz, 5.12 GHz, 5.72 GHz	RP-SMA Male		2.4 GHz, 2.5 GHz, 5 GHz, 5.7 GHz, 5.8 GHz	4 GHz	2 GHz	3 GHz
