822B003-173L701

Active

NorComp Inc.

CIRCULAR CONNECTOR, QUIK-LOQ 822B SERIES, CABLE MOUNT PLUG, 3 CONTACTS, SOLDER PIN, PUSH-PULL

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

822B Series

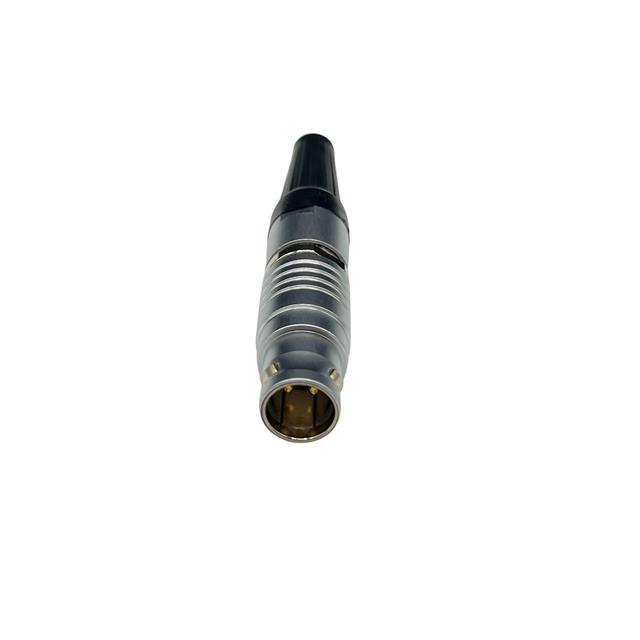

The 822B003-173L701 from Norcomp is an 822B series IP50 rated-15mm push pull male connector with 3 poles. The precision designed metal shell push-pull connector is engineered to withstand shock and high vibration both indoors and outdoors in harsh environments. The small rugged, sealed push pull connector is ideal for applications where quick connect / disconnect and environmental protection are required. This new versatile connector is fully intermateable with existing push pull industry solutions.

Technical Specifications

Parameters and characteristics for this part

Specification	822B003-173L701

Backshell Material	Brass
Cable Opening (Max)	0.283 in
Cable Opening (Min)	0.248 in
Color	Black, Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Material	Copper Alloy
Current Rating	17 A
Fastening Type	Push-Pull
Features	Backshell, Strain Relief
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyphenylene Sulfide, PPS
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Plating	Chrome
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Termination	Solder Cup
Voltage Rating	800 V

822B Series

...

Part	Current Rating	Fastening Type	Contact Finish - Mating	Number of Positions	Shielding	Mounting Feature	Termination	Contact Finish Thickness - Mating	Color	Contact Material	Connector Type	Primary Material	Voltage Rating	Insert Material	Shell Material	Mounting Type	Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Shell Finish	Cable Opening (Min)	Cable Opening (Max)	Plating	Backshell Material	Features	Applications	Cable Opening
NorComp Inc. 822B004-203R001	15 A	Push-Pull	Gold	4	Shielded	Bulkhead Front Side Nut	Solder Cup	7 µin	Silver	Copper Alloy	Female Sockets Receptacle	Metal	610 V	Polyphenylene Sulfide PPS	Brass	Panel Mount	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel
NorComp Inc. 822B010-203R001	8 A	Push-Pull	Gold	10	Shielded	Bulkhead Front Side Nut	Solder Cup	7 µin	Silver	Copper Alloy	Female Sockets Receptacle	Metal	500 V	Polyphenylene Sulfide PPS	Brass	Panel Mount	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel
NorComp Inc. 822B014-273L001	6.5 A	Push-Pull	Gold	14	Shielded		Solder Cup	7 µin	Black Silver	Copper Alloy	Female Sockets Receptacle	Metal	380 V	Polyphenylene Sulfide PPS	Brass	Free Hanging (In-Line)	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel	0.366 in	0.402 in	Chrome	Brass	Backshell Strain Relief
NorComp Inc. 822B016-273L001	6 A	Push-Pull	Gold	16	Shielded		Solder Cup	7 µin	Black Silver	Copper Alloy	Female Sockets Receptacle	Metal	315 V	Polyphenylene Sulfide PPS	Brass	Free Hanging (In-Line)	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel	0.366 in	0.402 in	Chrome	Brass	Backshell Strain Relief
NorComp Inc. 822B016-273L601	6 A	Push-Pull	Gold	16	Shielded		Solder Cup	7 µin	Black Silver	Copper Alloy	Female Sockets Receptacle	Metal	315 V	Polyphenylene Sulfide PPS	Brass	Free Hanging (In-Line)	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel	0.209 in	0.244 in	Chrome	Brass	Backshell Strain Relief
NorComp Inc. 822B003-273L001	17 A	Push-Pull	Gold	3	Shielded		Solder Cup	7 µin	Black Silver	Copper Alloy	Female Sockets Receptacle	Metal	800 V	Polyphenylene Sulfide PPS	Brass	Free Hanging (In-Line)	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel	0.366 in	0.402 in	Chrome	Brass	Backshell Strain Relief
NorComp Inc. 822B019-203RF01		Push-Pull	Gold	19	Shielded	Bulkhead Rear Side Nut	Solder Cup	7 µin	Silver	Copper Alloy	Female Sockets Receptacle	Metal	280 VAC	Polyphenylene Sulfide PPS	Brass	Panel Mount	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel						Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement
NorComp Inc. 822B014-273L701	6.5 A	Push-Pull	Gold	14	Shielded		Solder Cup	7 µin	Black Silver	Copper Alloy	Female Sockets Receptacle	Metal	380 V	Polyphenylene Sulfide PPS	Brass	Free Hanging (In-Line)	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel	0.248 in	0.283 in	Chrome	Brass	Backshell Strain Relief
NorComp Inc. 822B010-103R001	8 A	Push-Pull	Gold	10	Shielded	Bulkhead Rear Side Nut	Solder Cup	7 µin	Silver	Copper Alloy	Male Pins Plug	Metal	500 V	Polyphenylene Sulfide PPS	Brass	Panel Mount	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel							0.531 in
NorComp Inc. 822B004-203RF01		Push-Pull	Gold	4	Shielded	Bulkhead Rear Side Nut	Solder Cup	7 µin	Silver	Copper Alloy	Female Sockets Receptacle	Metal	610 V	Polyphenylene Sulfide PPS	Brass	Panel Mount	Keyed	-40 °C	200 °C	Dust Protected	IP50	Nickel						Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement
