MTSMC-G2-V.R1

Obsolete

Multi-Tech Systems Inc.

RF TXRX MOD CELL U.FL TH

Search across all available documentation for this part.

Obsolete

Multi-Tech Systems Inc.

RF TXRX MOD CELL U.FL TH

Technical Specifications

Parameters and characteristics for this part

Part	Protocol	Mounting Type	Serial Interfaces	Antenna Type	RF Family/Standard	Frequency	Power - Output	Current - Transmitting	Sensitivity	Current - Receiving	Data Rate	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Multi-Tech Systems Inc. MTSMC-G2-IP.R1	GPRS	Through Hole	UART	Antenna Not Included U.FL	Cellular	850 MHz 900 MHz 1800 MHz 1900 MHz	33 dBm	280 mA	-108 dBm	280 mA	921.6 kbps	Module	85 °C	-40 °C
Multi-Tech Systems Inc. MTSMC-G2-V-ED.R1	GPRS GSM	Through Hole	UART	Antenna Not Included U.FL	Cellular	850 MHz 900 MHz 1800 MHz 1900 MHz	33 dBm	113 mA	-108 dBm	113 mA	85.6 kbps	Module	85 °C	-40 °C
Multi-Tech Systems Inc. MTSMC-G2-IP-ED	GPRS	Through Hole	UART	Antenna Not Included U.FL	Cellular	850 MHz 900 MHz 1800 MHz 1900 MHz	33 dBm	280 mA	-108 dBm	280 mA	921.6 kbps	Module	85 °C	-40 °C
Multi-Tech Systems Inc. MTSMC-G2-V.R1	GPRS GSM	Through Hole	UART	Antenna Not Included U.FL	Cellular	850 MHz 900 MHz 1800 MHz 1900 MHz	33 dBm	113 mA	-108 dBm	113 mA	85.6 kbps	Module	85 °C	-40 °C
Multi-Tech Systems Inc. MTSMC-G2-V	GPRS GSM	Through Hole	UART	Antenna Not Included U.FL	Cellular	850 MHz 900 MHz 1800 MHz 1900 MHz	33 dBm	113 mA	-108 dBm	113 mA	85.6 kbps	Module	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

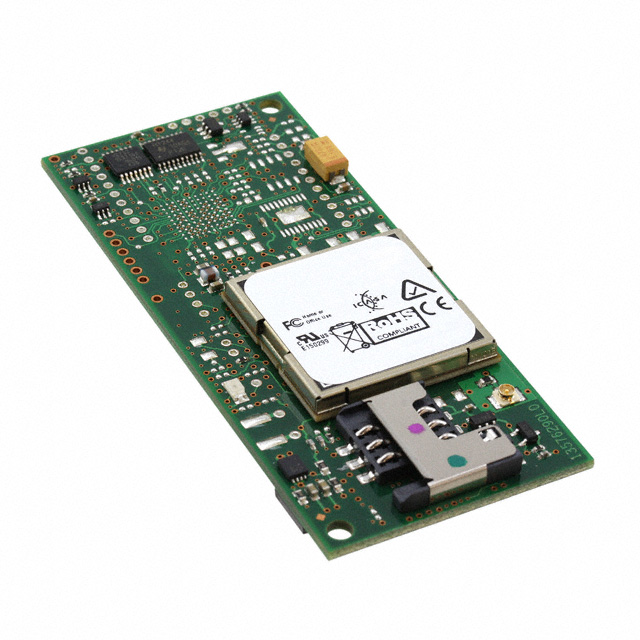

Cellular GPRS, GSM Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included, U.FL Through Hole

Technical documentation and resources

No documents available
