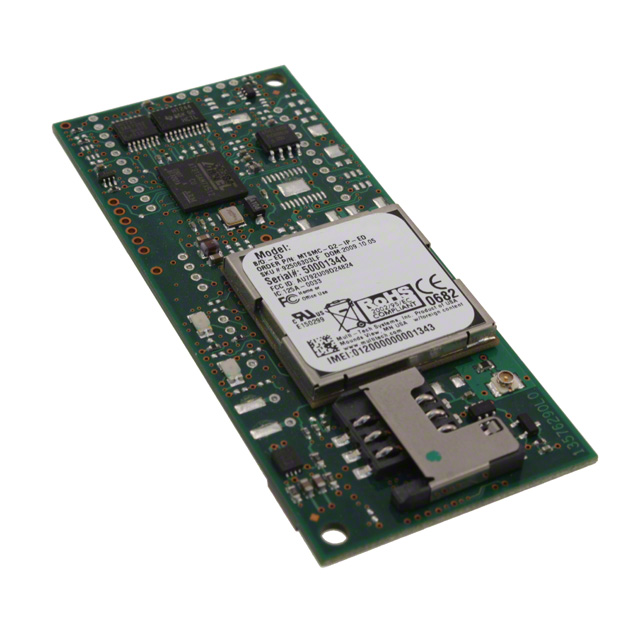

Specification	MTSMC-G2-IP-ED

Antenna Type	Antenna Not Included, U.FL
Current - Receiving	280 mA
Current - Transmitting	280 mA
Data Rate	921.6 kBaud
Frequency	900 MHz, 1.8 GHz, 850 MHz, 1.9 GHz
Frequency	1.8GHz, 850MHz, 1.9GHz, 900MHz
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Module
Power - Output	33 dBm
Protocol	GPRS
RF Family/Standard	Cellular
Sensitivity	-108 dBm
Serial Interfaces	UART
Voltage - Supply	5 VDC

MTSMC-G2 Series

Part	Voltage - Supply	Current - Transmitting	Protocol	Data Rate	Current - Receiving	Frequency	Frequency	Power - Output	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Antenna Type	RF Family/Standard	Package / Case	Serial Interfaces	Sensitivity
Multi-Tech Systems Inc. MTSMC-G2-IP.R1	5 VDC	280 mA	GPRS	921.6 kBaud	280 mA	1.8 GHz 1.9 GHz 850 MHz 900 MHz	1.8GHz 1.9GHz 850MHz 900MHz	33 dBm	-40 °C	85 °C	Through Hole	Antenna Not Included U.FL	Cellular	Module	UART	-108 dBm
Multi-Tech Systems Inc. MTSMC-G2-GP-ED	5 VDC	280 mA	GPRS GPS	921.6 kBaud	280 mA	1.8 GHz 1.9 GHz 850 MHz 900 MHz	1.8GHz 1.9GHz 850MHz 900MHz	33 dBm	-40 °C	85 °C	Through Hole	Antenna Not Included U.FL	Cellular Navigation	Module	UART	-108 dBm
Multi-Tech Systems Inc. MTSMC-G2-V-ED.R1	5 VDC	113 mA	GPRS GSM	85.6 kbps	113 mA	1.8 GHz 1.9 GHz 850 MHz 900 MHz	1.8GHz 1.9GHz 850MHz 900MHz	33 dBm	-40 °C	85 °C	Through Hole	Antenna Not Included U.FL	Cellular	Module	UART	-108 dBm
Multi-Tech Systems Inc. MTSMC-G2-IP-ED	5 VDC	280 mA	GPRS	921.6 kBaud	280 mA	1.8 GHz 1.9 GHz 850 MHz 900 MHz	1.8GHz 1.9GHz 850MHz 900MHz	33 dBm	-40 °C	85 °C	Through Hole	Antenna Not Included U.FL	Cellular	Module	UART	-108 dBm
Multi-Tech Systems Inc. MTSMC-G2-V.R1	5 VDC	113 mA	GPRS GSM	85.6 kbps	113 mA	1.8 GHz 1.9 GHz 850 MHz 900 MHz	1.8GHz 1.9GHz 850MHz 900MHz	33 dBm	-40 °C	85 °C	Through Hole	Antenna Not Included U.FL	Cellular	Module	UART	-108 dBm
Multi-Tech Systems Inc. MTSMC-G2-GP-ED.R1	5 VDC	280 mA	GPRS GPS	921.6 kBaud	280 mA	1.8 GHz 1.9 GHz 850 MHz 900 MHz	1.8GHz 1.9GHz 850MHz 900MHz	33 dBm	-40 °C	85 °C	Through Hole	Antenna Not Included U.FL	Cellular	Module	UART	-108 dBm
Multi-Tech Systems Inc. MTSMC-G2-V	5 VDC	113 mA	GPRS GSM	85.6 kbps	113 mA	1.8 GHz 1.9 GHz 850 MHz 900 MHz	1.8GHz 1.9GHz 850MHz 900MHz	33 dBm	-40 °C	85 °C	Through Hole	Antenna Not Included U.FL	Cellular	Module	UART	-108 dBm
