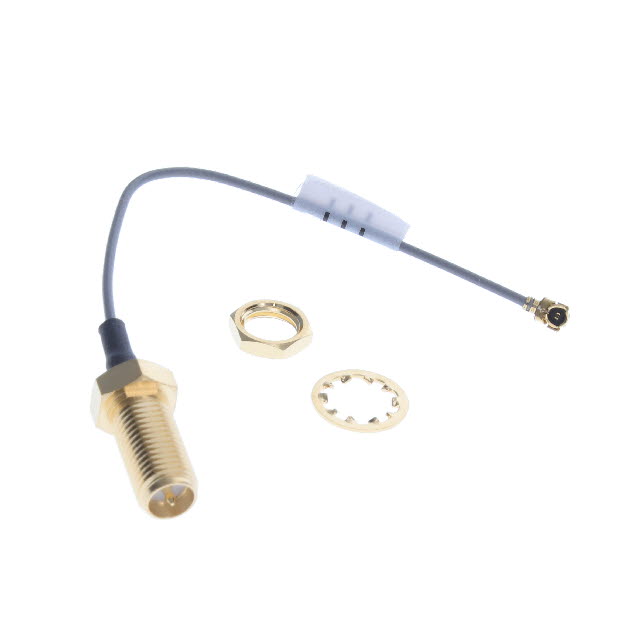

Specification	MH113-MH1RP-01BJ2-0100

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Front Side Nut, Bulkhead
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	Right Angle, U.FL (UMCC), I-PEX MHF1 Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Outer Diameter	1.13 mm
Cable Type	Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable
Cable Type Size	1.13
Color	Gray
Features	Shielded
Frequency - Max	6000 MHz
Length	3.937 in
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Overall Impedance	50 Ohms
Style	I-PEX MHF1 to RP-SMA, U.FL (UMCC)

MH113-MH1RP Series

Part	Features	1st Connector	Overall Impedance	Operating Temperature (Max)	Operating Temperature (Min)	Cable Type Size	Cable Type	Cable Outer Diameter	Style	1st Connector Mounting Type	Cable Impedance	2nd Contact Gender	2nd Connector	1st Connector Mounting Feature	Frequency - Max	Color	Length	2nd Connector Mounting Type	1st Contact Gender
Samtec Inc. MH113-MH1RP-01BJ1-0300	Shielded	SMA Jack	50 Ohms	90 °C	-40 °C	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	I-PEX MHF1 to SMA IPEX MHF1 to SMA U.FL (UMCC)	Panel Mount	50 Ohms	Female	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	6000 MHz	Gray	11.811 in	Free Hanging (In-Line)	Female
Samtec Inc. MH113-MH1RP-01SB1-0100	Shielded	SMA Jack	50 Ohms	90 °C	-40 °C	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	I-PEX MHF1 to SMA IPEX MHF1 to SMA U.FL (UMCC)	Panel Mount	50 Ohms	Female	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	6000 MHz	Gray	3.937 in	Free Hanging (In-Line)	Female
Samtec Inc. MH113-MH1RP-01BJ2-0100	Shielded	RP-SMA Jack	50 Ohms	90 °C	-40 °C	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	I-PEX MHF1 to RP-SMA U.FL (UMCC)	Panel Mount	50 Ohms	Female	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	6000 MHz	Gray	3.937 in	Free Hanging (In-Line)	Male
Samtec Inc. MH113-MH1RP-01BJ2-0300	Shielded	RP-SMA Jack	50 Ohms	90 °C	-40 °C	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	I-PEX MHF1 to RP-SMA IPEX MHF1 to RP-SMA U.FL (UMCC)	Panel Mount	50 Ohms	Female	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	6000 MHz	Gray	11.811 in	Free Hanging (In-Line)	Female
Samtec Inc. MH113-MH1RP-MH1RP-0100	Shielded	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)	50 Ohms	90 °C	-40 °C	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	Free Hanging (In-Line)	50 Ohms	Female	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)		6000 MHz	Gray	3.937 in	Free Hanging (In-Line)	Female
Samtec Inc. MH113-MH1RP-01BJ2-0150	Shielded	RP-SMA Jack	50 Ohms	90 °C	-40 °C	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	I-PEX MHF1 to RP-SMA IPEX MHF1 to RP-SMA U.FL (UMCC)	Panel Mount	50 Ohms	Female	I-PEX MHF1 Plug IPEX MHF1 Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	6000 MHz	Gray	5.906 in	Free Hanging (In-Line)	Male
Samtec Inc. MH113-MH1RP-01BJ1-0050	Shielded	SMA Jack	50 Ohms	90 °C	-40 °C	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	I-PEX MHF1 to SMA U.FL (UMCC)	Panel Mount	50 Ohms	Female	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	6000 MHz	Gray	1.969 in	Free Hanging (In-Line)	Female
Samtec Inc. MH113-MH1RP-MH1RP-0035	Shielded	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	50 Ohms	90 °C	-40 °C	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC)	Free Hanging (In-Line)	50 Ohms	Female	I-PEX MHF1 Plug Right Angle U.FL (UMCC)		6000 MHz	Gray	1.378 in	Free Hanging (In-Line)	Female
Samtec Inc. MH113-MH1RP-01SB1-0150	Shielded	SMA Jack	50 Ohms	90 °C	-40 °C	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm	I-PEX MHF1 to SMA U.FL (UMCC)	Panel Mount	50 Ohms	Female	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	Bulkhead Front Side Nut	6000 MHz	Gray	5.906 in	Free Hanging (In-Line)	Female
