MH113-MH1RP-01SB1-0150

Active

Samtec Inc.

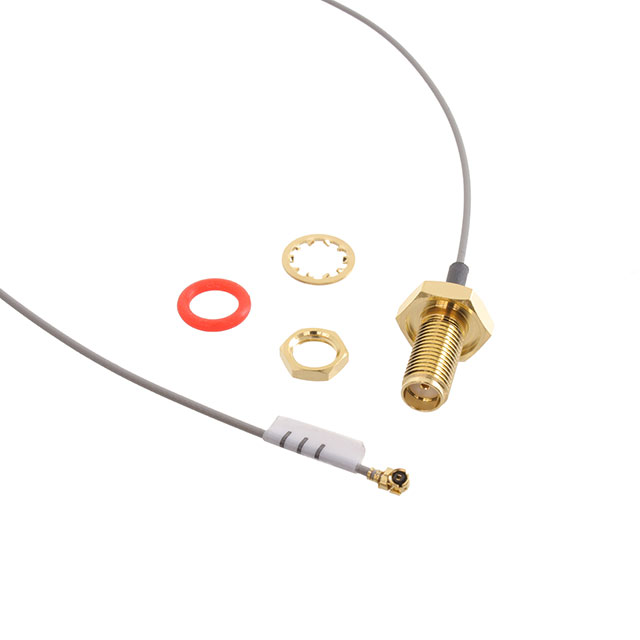

CBL ASSY UMCC-SMA JK-PL 5.906"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MH113 Datasheet

MH113-MH1RP-01SB1-0150

Active

Samtec Inc.

CBL ASSY UMCC-SMA JK-PL 5.906"

Deep-Dive with AI

DocumentsDatasheet MH113 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MH113-MH1RP-01SB1-0150

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Right Angle, I-PEX MHF1 Plug, U.FL (UMCC)
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	1.13mm OD Coaxial Cable
Color	Gray
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	150 mm
Length [x]	5.906 "
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	U.FL (UMCC), I-PEX MHF1 to SMA

MH113-MH1RP Series

Part	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Connector	2nd Contact Gender	Cable Type	1st Connector Mounting Feature	1st Connector	Overall Impedance	Style	Frequency - Max [Max]	Features	Cable Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Color	Length [x]	Length [x]	1st Contact Gender
Samtec Inc. MH113-MH1RP-01BJ1-0300	Free Hanging (In-Line)	Panel Mount	U.FL (UMCC) IPEX MHF1 Plug Right Angle	Female	1.13mm OD Coaxial Cable	Bulkhead - Front Side Nut	SMA Jack	50 Ohms	IPEX MHF1 SMA U.FL (UMCC)	6000 MHz	Shielded	50 Ohms	90 °C	-40 °C	Gray	300 mm	11.811 in	Female
Samtec Inc. MH113-MH1RP-01SB1-0100	Free Hanging (In-Line)	Panel Mount	U.FL (UMCC) IPEX MHF1 Plug Right Angle	Female	1.13mm OD Coaxial Cable	Bulkhead - Front Side Nut	SMA Jack	50 Ohms	IPEX MHF1 SMA U.FL (UMCC)	6000 MHz	Shielded	50 Ohms	90 °C	-40 °C	Gray	0.1 m	3.937 in	Female
Samtec Inc. MH113-MH1RP-01BJ2-0100	Free Hanging (In-Line)	Panel Mount			1.13mm OD Coaxial Cable	Bulkhead - Front Side Nut	RP-SMA Jack	50 Ohms		6000 MHz	Shielded	50 Ohms	90 °C	-40 °C	Gray
Samtec Inc. MH113-MH1RP-MH1RP-0100	Free Hanging (In-Line)	Free Hanging (In-Line)	U.FL (UMCC) IPEX MHF1 Plug Right Angle	Female	1.13mm OD Coaxial Cable		IPEX MHF1 Plug Right Angle U.FL (UMCC)	50 Ohms	IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	6000 MHz	Shielded	50 Ohms	90 °C	-40 °C	Gray	0.1 m	3.937 in	Female
Samtec Inc. MH113-MH1RP-01BJ2-0150	Free Hanging (In-Line)	Panel Mount	U.FL (UMCC) IPEX MHF1 Plug Right Angle	Female	1.13mm OD Coaxial Cable	Bulkhead - Front Side Nut	RP-SMA Jack	50 Ohms	IPEX MHF1 RP-SMA U.FL (UMCC)	6000 MHz	Shielded	50 Ohms	90 °C	-40 °C	Gray	150 mm	5.906 "	Male
Samtec Inc. MH113-MH1RP-01BJ1-0050	Free Hanging (In-Line)	Panel Mount	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	Female	1.13mm OD Coaxial Cable	Bulkhead - Front Side Nut	SMA Jack	50 Ohms	I-PEX MHF1 to SMA U.FL (UMCC)	6000 MHz	Shielded	50 Ohms	90 °C	-40 °C	Gray	50 mm	1.969 in	Female
Samtec Inc. MH113-MH1RP-MH1RP-0035	Free Hanging (In-Line)	Free Hanging (In-Line)	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	Female	1.13mm OD Coaxial Cable		I-PEX MHF1 Plug Right Angle U.FL (UMCC)	50 Ohms	I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC)	6000 MHz	Shielded	50 Ohms	90 °C	-40 °C	Gray	35 mm	1.378 in	Female
Samtec Inc. MH113-MH1RP-01SB1-0150	Free Hanging (In-Line)	Panel Mount	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	Female	1.13mm OD Coaxial Cable	Bulkhead - Front Side Nut	SMA Jack	50 Ohms	I-PEX MHF1 to SMA U.FL (UMCC)	6000 MHz	Shielded	50 Ohms	90 °C	-40 °C	Gray	150 mm	5.906 "	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 18.36
		10	$ 14.13
		25	$ 12.78
		50	$ 11.87
		100	$ 11.05
		250	$ 10.07
		500	$ 9.42
		1000	$ 8.83

Description

General part information

MH113-MH1RP Series

Cable Assembly Coaxial U.FL (UMCC), I-PEX MHF1 to SMA 1.13mm OD Coaxial Cable 5.906" (150.00mm)
