AD8314ARMZ-REEL7

Active

Analog Devices Inc./Maxim Integrated

RF DETECTOR/CONTROLLER, 100 MHZ TO 2.7 GHZ, -45 TO 0 DBM, 2.7 TO 5.5 V, -40 TO 85 °C, MSOP-8

Find alt

Alpha

AD8314ARMZ-REEL7

Active

Analog Devices Inc./Maxim Integrated

RF DETECTOR/CONTROLLER, 100 MHZ TO 2.7 GHZ, -45 TO 0 DBM, 2.7 TO 5.5 V, -40 TO 85 °C, MSOP-8

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

AD8314 Series

AD8314 is a complete low cost subsystem for the measurement and control of RF signals in the frequency range of 100MHz to 2.7GHz, with a typical dynamic range of 45dB, intended for use in a wide variety of cellular handsets and other wireless devices. It provides a wider dynamic range and better accuracy than possible using discrete diode detectors. Its high sensitivity allows control at low power levels, thus reducing the amount of power that needs to be coupled to the detector. This device provides two voltage outputs. The first, V-UP, increases from close to ground to about 1.2V as the input signal level increases from 1.25mV to 224mV. This output is intended for use in measurement mode. It is used in application such as cellular handsets (TDMA, CDMA, GSM), RSSI and TSSI for wireless terminal devices, transmitter power measurement and control etc.

Technical Specifications

Parameters and characteristics for this part

Specification	AD8314ARMZ-REEL7

Current - Supply	5.7 mA
Frequency Range 1 (Max)	2.7 GHz
Frequency Range 1 (Min)	100 MHz
Input Level (Max)	0 dBm
Input Level (Min)	-45 dBm
Mounting Type	Surface Mount
Package Length	0.118 in
Package Name	8-MSOP, 8-TSSOP, 8-MSOP
Package Width	3 mm
RF Type	GSM, Cellular, TDMA, CDMA
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	2.7 V

AD8314 Series

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Frequency Range 1 (Min)	Frequency Range 1 (Max)	RF Type	Package Name	Current - Supply	Input Level (Min)	Input Level (Max)	Mounting Type	Package Width	Package Length	For Use With/Related Products	Supplied Contents	Type	Utilized IC / Part	Contents	Package / Case
Analog Devices Inc./Maxim Integrated AD8314ARMZ-REEL	5.5 V	2.7 V	100 MHz	2.7 GHz	CDMA Cellular GSM TDMA	8-MSOP 8-TSSOP 8-MSOP	5.7 mA	-45 dBm	0 dBm	Surface Mount	3 mm	0.118 in
Analog Devices Inc./Maxim Integrated AD8314-EVAL													AD8314	Board(s)	RF Log Detector/Controller	AD8314	Board
Analog Devices Inc./Maxim Integrated AD8314ARM	5.5 V	2.7 V	100 MHz	2.7 GHz	CDMA Cellular GSM TDMA	8-MSOP 8-TSSOP 8-MSOP	5.7 mA	-45 dBm	0 dBm	Surface Mount	3 mm	0.118 in
Analog Devices Inc./Maxim Integrated AD8314ARMZ	5.5 V	2.7 V	100 MHz	2.7 GHz	CDMA Cellular GSM TDMA	8-MSOP 8-TSSOP 8-MSOP	5.7 mA	-45 dBm	0 dBm	Surface Mount	3 mm	0.118 in
Analog Devices Inc./Maxim Integrated AD8314ACP-EVALZ			100 MHz	2.7 GHz									AD8314	Board(s)	RF Log Detector/Controller	AD8314	Board
Analog Devices Inc./Maxim Integrated AD8314ARMZ-REEL7	5.5 V	2.7 V	100 MHz	2.7 GHz	CDMA Cellular GSM TDMA	8-MSOP 8-TSSOP 8-MSOP	5.7 mA	-45 dBm	0 dBm	Surface Mount	3 mm	0.118 in
Analog Devices Inc./Maxim Integrated AD8314ACPZ-RL7	5.5 V	2.7 V	100 MHz	2.7 GHz	CDMA Cellular GSM TDMA	8-LFCSP-VD	5.7 mA	-45 dBm	0 dBm	Surface Mount	2 mm	3 mm						8-VFDFN Exposed Pad CSP

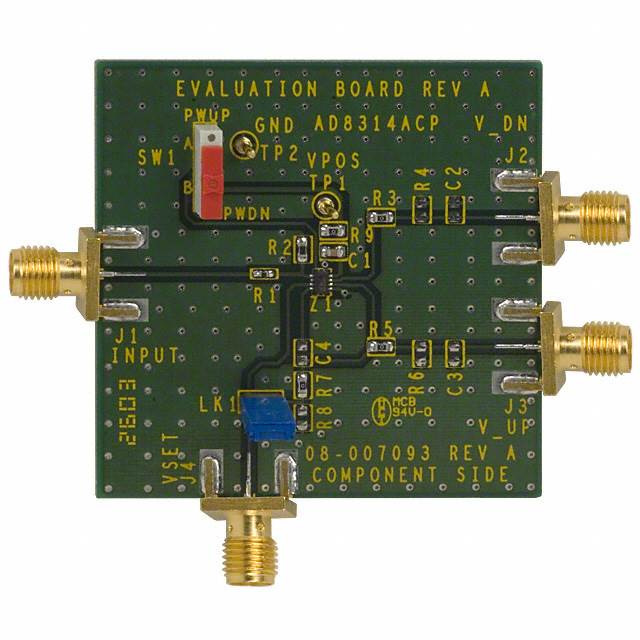

Analog Devices Inc./Maxim Integrated AD8314ACP-EVAL			100 MHz	2.7 GHz									AD8314	Board(s)	RF Log Detector/Controller	AD8314	Board
