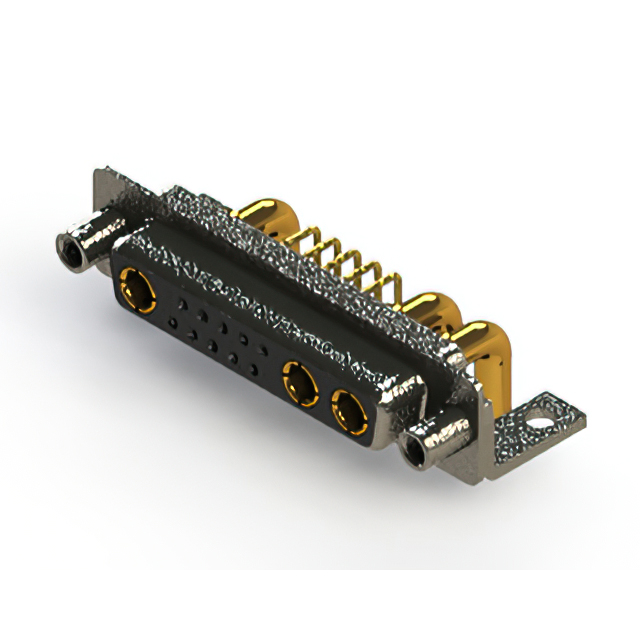

630-13W3240-4N6

Active

EDAC Inc.

CONN D-SUB RCPT 13POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-13W3240-4N6

Active

EDAC Inc.

CONN D-SUB RCPT 13POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-13W3240-4N6

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polyester Thermoplastic
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

630-13W Series

...

Part	Number of Rows	Material Flammability Rating	Backset Spacing	Backset Spacing	Termination	Flange Feature	Contact Type	Dielectric Material	Contact Material	Features	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Color	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Number of Positions	Shell Material, Finish	Contact Finish Thickness	Current Rating (Amps)	Number of Positions [custom]	Current Rating (Amps)
EDAC Inc. 630-13W3640-5T4	2	UL94 V-0	9.4 mm	0.37 in	Solder	Housing/Shell (4-40)	Coax Signal	Polyester Thermoplastic	Copper Alloy	Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13C3 13W3 B DB	3	Receptacle Female Sockets	10	3	Black	Through Hole Right Angle	0.76 Ám	30 Áin
EDAC Inc. 630-13W3640-7TB	2	UL94 V-0	9.4 mm	0.37 in	Solder	Housing/Shell (M3)	Coax Signal	Polyester Thermoplastic	Copper Alloy	Board Lock Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13C3 13W3 B DB	3	Receptacle Female Sockets	10	3	Black	Through Hole Right Angle	0.76 Ám	30 Áin
EDAC Inc. 630-13W6240-4ND	2	UL94 V-0	9.4 mm	0.37 in	Solder	M3	Signal and Power	Polyester Thermoplastic	Copper Alloy	Board Lock Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13W6 4 (DC C)		Receptacle Female Sockets			Black	Through Hole Right Angle			6	13	Nickel Plated Steel	Flash	5 A 40 A
EDAC Inc. 630-13W3240-4N6	2	UL94 V-0	9.4 mm	0.37 in	Solder	4-40	Signal and Power	Polyester Thermoplastic	Copper Alloy		Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13C3 13W3 B DB	3	Receptacle Female Sockets			Black	Through Hole Right Angle			3		Nickel Plated Steel	Flash	5 A 40 A	10
EDAC Inc. 630-13W6240-2ND	2	UL94 V-0	9.4 mm	0.37 in	Solder	M3	Signal and Power	Polyester Thermoplastic	Copper Alloy	Board Lock Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13W6 4 (DC C)		Receptacle Female Sockets			Black	Through Hole Right Angle			6	13	Nickel Plated Steel	Flash	5 A 20 A
EDAC Inc. 630-13W6240-2TB	2	UL94 V-0	9.4 mm	0.37 in	Solder	Housing/Shell (M3)	Signal and Power	Polyester Thermoplastic	Copper Alloy	Board Lock Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13W6 4 (DC C)		Receptacle Female Sockets			Black	Through Hole Right Angle			6	13		Flash	5 A 20 A
EDAC Inc. 630-13W6640-4NC	2	UL94 V-0	9.4 mm	0.37 in	Solder	Housing/Shell (M3)	Signal and Power	Polyester Thermoplastic	Copper Alloy	Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13W6 4 (DC C)		Receptacle Female Sockets			Black	Through Hole Right Angle	0.76 Ám	30 Áin	6	13	Nickel Plated Steel		5 A 40 A
EDAC Inc. 630-13W3240-1NB	2	UL94 V-0	9.4 mm	0.37 in	Solder	Housing/Shell (M3)	Signal and Power	Polyester Thermoplastic	Copper Alloy	Board Lock Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13C3 13W3 B DB	3	Receptacle Female Sockets			Black	Through Hole Right Angle			3		Nickel Plated Steel	Flash		10	10A 5A
EDAC Inc. 630-13W6250-2N4	2	UL94 V-0	9.4 mm	0.37 in	Solder	Housing/Shell (4-40)	Signal and Power	Polyester Thermoplastic	Copper Alloy	Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13W6 4 (DC C)		Receptacle Female Sockets			Black	Through Hole Right Angle			6	13	Nickel Plated Steel	Flash	5 A 20 A
EDAC Inc. 630-13W3640-4TD	2	UL94 V-0	9.4 mm	0.37 in	Solder	M3	Signal and Power	Polyester Thermoplastic	Copper Alloy	Board Lock Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13C3 13W3 B DB	3	Receptacle Female Sockets			Black	Through Hole Right Angle	0.76 Ám	30 Áin	3				5 A 40 A	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 9.75

Description

General part information

630-13W Series

13 (10 + 3 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
