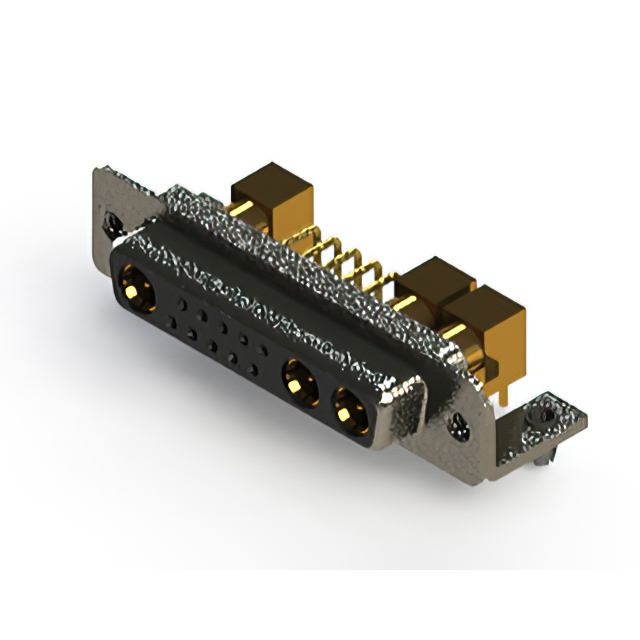

630-13W3640-7TB

Active

EDAC Inc.

CONN D-SUB RCPT 13POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-13W3640-7TB

Active

EDAC Inc.

CONN D-SUB RCPT 13POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-13W3640-7TB

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

630-13W Series

...

Part	Number of Rows	Material Flammability Rating	Backset Spacing	Backset Spacing	Termination	Flange Feature	Contact Type	Dielectric Material	Contact Material	Features	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Color	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Number of Positions	Shell Material, Finish	Contact Finish Thickness	Current Rating (Amps)	Number of Positions [custom]	Current Rating (Amps)
EDAC Inc. 630-13W3640-5T4	2	UL94 V-0	9.4 mm	0.37 in	Solder	Housing/Shell (4-40)	Coax Signal	Polyester Thermoplastic	Copper Alloy	Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13C3 13W3 B DB	3	Receptacle Female Sockets	10	3	Black	Through Hole Right Angle	0.76 Ám	30 Áin
EDAC Inc. 630-13W3640-7TB	2	UL94 V-0	9.4 mm	0.37 in	Solder	Housing/Shell (M3)	Coax Signal	Polyester Thermoplastic	Copper Alloy	Board Lock Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13C3 13W3 B DB	3	Receptacle Female Sockets	10	3	Black	Through Hole Right Angle	0.76 Ám	30 Áin
EDAC Inc. 630-13W6240-4ND	2	UL94 V-0	9.4 mm	0.37 in	Solder	M3	Signal and Power	Polyester Thermoplastic	Copper Alloy	Board Lock Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13W6 4 (DC C)		Receptacle Female Sockets			Black	Through Hole Right Angle			6	13	Nickel Plated Steel	Flash	5 A 40 A
EDAC Inc. 630-13W3240-4N6	2	UL94 V-0	9.4 mm	0.37 in	Solder	4-40	Signal and Power	Polyester Thermoplastic	Copper Alloy		Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13C3 13W3 B DB	3	Receptacle Female Sockets			Black	Through Hole Right Angle			3		Nickel Plated Steel	Flash	5 A 40 A	10
EDAC Inc. 630-13W6240-2ND	2	UL94 V-0	9.4 mm	0.37 in	Solder	M3	Signal and Power	Polyester Thermoplastic	Copper Alloy	Board Lock Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13W6 4 (DC C)		Receptacle Female Sockets			Black	Through Hole Right Angle			6	13	Nickel Plated Steel	Flash	5 A 20 A
EDAC Inc. 630-13W6240-2TB	2	UL94 V-0	9.4 mm	0.37 in	Solder	Housing/Shell (M3)	Signal and Power	Polyester Thermoplastic	Copper Alloy	Board Lock Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13W6 4 (DC C)		Receptacle Female Sockets			Black	Through Hole Right Angle			6	13		Flash	5 A 20 A
EDAC Inc. 630-13W6640-4NC	2	UL94 V-0	9.4 mm	0.37 in	Solder	Housing/Shell (M3)	Signal and Power	Polyester Thermoplastic	Copper Alloy	Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13W6 4 (DC C)		Receptacle Female Sockets			Black	Through Hole Right Angle	0.76 Ám	30 Áin	6	13	Nickel Plated Steel		5 A 40 A
EDAC Inc. 630-13W3240-1NB	2	UL94 V-0	9.4 mm	0.37 in	Solder	Housing/Shell (M3)	Signal and Power	Polyester Thermoplastic	Copper Alloy	Board Lock Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13C3 13W3 B DB	3	Receptacle Female Sockets			Black	Through Hole Right Angle			3		Nickel Plated Steel	Flash		10	10A 5A
EDAC Inc. 630-13W6250-2N4	2	UL94 V-0	9.4 mm	0.37 in	Solder	Housing/Shell (4-40)	Signal and Power	Polyester Thermoplastic	Copper Alloy	Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13W6 4 (DC C)		Receptacle Female Sockets			Black	Through Hole Right Angle			6	13	Nickel Plated Steel	Flash	5 A 20 A
EDAC Inc. 630-13W3640-4TD	2	UL94 V-0	9.4 mm	0.37 in	Solder	M3	Signal and Power	Polyester Thermoplastic	Copper Alloy	Board Lock Mounting Brackets	Combo D-Sub	-55 °C	125 °C	125 VDC	Gold	13C3 13W3 B DB	3	Receptacle Female Sockets			Black	Through Hole Right Angle	0.76 Ám	30 Áin	3				5 A 40 A	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 15.97

Description

General part information

630-13W Series

13 (10 + 3 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
