7002-1572-003
ActiveRadiall USA, Inc.

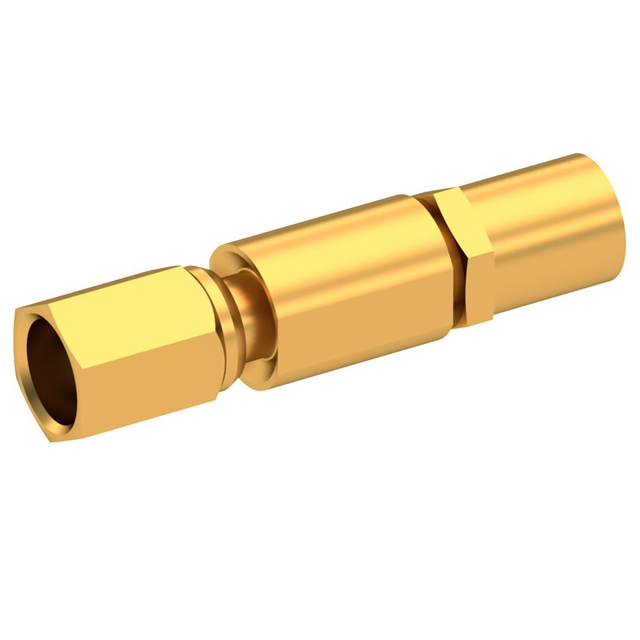

SSMC F STR NA CR 2.6/50S
Deep-Dive with AI
Search across all available documentation for this part.
7002-1572-003
ActiveRadiall USA, Inc.
SSMC F STR NA CR 2.6/50S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7002-1572-003 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | RG-174, 316 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SSMC |
| Connector Type | Plug, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 250 VDC |
7002-1572 Series
| Part | Frequency - Max [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Connector Style | Body Finish | Voltage Rating | Housing Color | Dielectric Material | Connector Type | Shield Termination | Body Material | Center Contact Plating | Number of Ports | Cable Group | Contact Termination | Center Contact Material | Impedance | Mounting Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | 12.4 GHz | -65 ░C | 165 °C | 500 | SSMC | Gold | 250 VDC | Gold | Polytetrafluoroethylene (PTFE) | Female Socket Plug | Crimp | Beryllium Copper | Gold | 1 | 316 RG-174 | Crimp | Beryllium Copper | 50 Ohms | Free Hanging (In-Line) | |
Radiall USA, Inc. | 12.4 GHz | -65 ░C | 165 °C | 500 | SSMC | Gold | 250 VDC | Gold | Polytetrafluoroethylene (PTFE) | Female Socket Plug | Crimp | Beryllium Copper | Gold | 1 | RD-316 | Crimp | Beryllium Copper | 50 Ohms | Free Hanging (In-Line) | |
Radiall USA, Inc. | 12.4 GHz | -65 ░C | 165 °C | 500 | SSMC | Gold | 250 VDC | Gold | Polytetrafluoroethylene (PTFE) | Female Socket Plug | Crimp | Beryllium Copper | Gold | 1 | RG-178 | Crimp | Beryllium Copper | 50 Ohms | Free Hanging (In-Line) | 196 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.38 | |
| 10 | $ 24.85 | |||
| 25 | $ 23.78 | |||
| 50 | $ 23.01 | |||
| 100 | $ 22.25 | |||
| 250 | $ 21.02 | |||
Description
General part information
7002-1572 Series
SSMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
