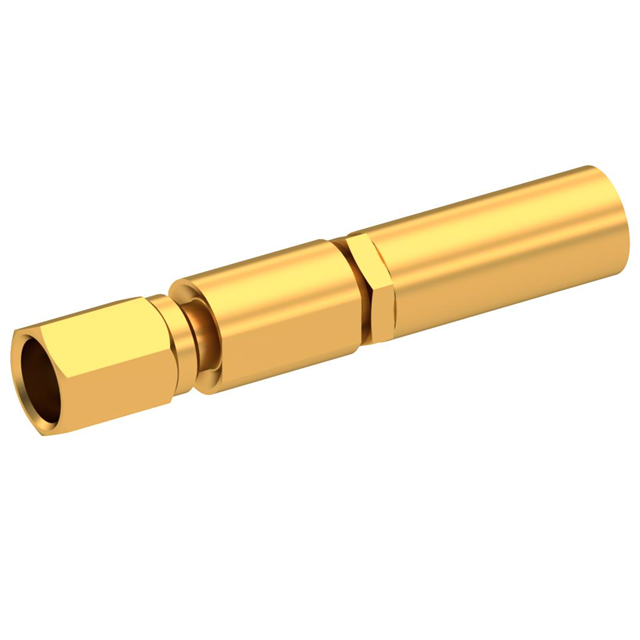

Specification	7002-1572-002

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	196, RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	12.4 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp
Voltage Rating	250 V

7002-1572 Series

Part	Center Contact Material	Shield Termination	Contact Termination	Connector Type	Mounting Type	Fastening Type	Number of Ports	Housing Color	Impedance	Frequency - Max	Cable Group	Connector Style	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Center Contact Plating	Dielectric Material	Voltage Rating	Body Material
Radiall USA, Inc. 7002-1572-003	Beryllium Copper	Crimp	Crimp	Female Socket Plug	Free Hanging (In-Line)	Threaded	1	Gold	50 Ohm	12.4 GHz	316 RG-174	SSMC	500 cycles	-65 °C	165 °C	Gold	Gold	Polytetrafluoroethylene (PTFE)	250 V	Beryllium Copper
Radiall USA, Inc. 7002-1572-019	Beryllium Copper	Crimp	Crimp	Female Socket Plug	Free Hanging (In-Line)	Threaded	1	Gold	50 Ohm	12.4 GHz	RD-316 RG-316DS	SSMC	500 cycles	-65 °C	165 °C	Gold	Gold	Polytetrafluoroethylene (PTFE)	250 V	Beryllium Copper
Radiall USA, Inc. 7002-1572-002	Beryllium Copper	Crimp	Crimp	Female Socket Plug	Free Hanging (In-Line)	Threaded	1	Gold	50 Ohm	12.4 GHz	196 RG-178	SSMC	500 cycles	-65 °C	165 °C	Gold	Gold	Polytetrafluoroethylene (PTFE)	250 V	Beryllium Copper
