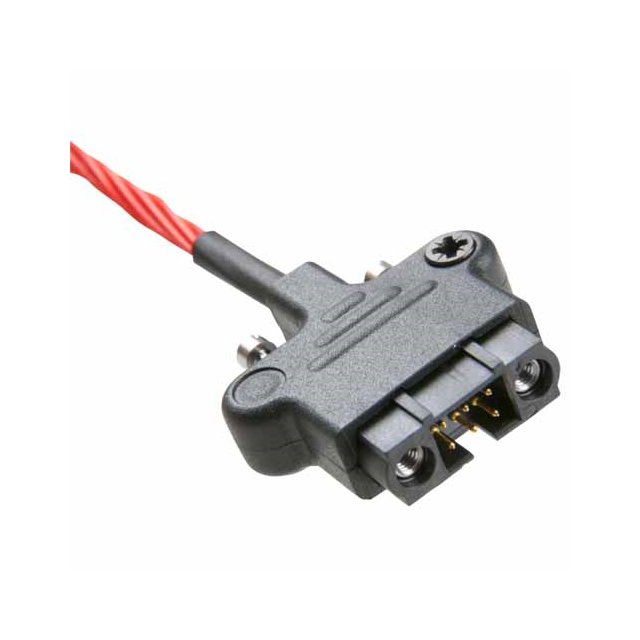

M80-9422605

Active

Harwin Inc.

13+13 POS. MALE DIL 24-28AWG CABLE CONN. KIT WITH HOOD/BACKSHELL, JACKSCREWS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

13+13 POS. MALE DIL 24-28AWG CABLE CONN. KIT WITH HOOD/BACKSHELL, JACKSCREWS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Mounting Type	Cable Termination	Wire Type	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Features	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Color
Harwin Inc. M80-9421205	Gold	12	10 Áin	0.25 Ám	2 mm	0.079 in	Free Hanging (In-Line)	Crimp	Discrete	0.079 in	2 mm	Receptacle	2	Cable Hood Kit Jackscrews	Female Socket	24 AWG	28 AWG	Black
Harwin Inc. M80-9422605	Gold	26	10 Áin	0.25 Ám	2 mm	0.079 in	Free Hanging (In-Line)	Crimp	Discrete	0.079 in	2 mm	Receptacle	2	Cable Hood Kit Jackscrews	Female Socket	24 AWG	28 AWG	Black
Harwin Inc. M80-9424205	Gold	42	10 Áin	0.25 Ám	2 mm	0.079 in	Free Hanging (In-Line)	Crimp	Discrete	0.079 in	2 mm	Receptacle	2	Cable Hood Kit Jackscrews	Female Socket	24 AWG	28 AWG	Black
Harwin Inc. M80-9423405	Gold	34	10 Áin	0.25 Ám	2 mm	0.079 in	Free Hanging (In-Line)	Crimp	Discrete	0.079 in	2 mm	Receptacle	2	Cable Hood Kit Jackscrews	Female Socket	24 AWG	28 AWG	Black
Harwin Inc. M80-9425005	Gold	50	10 Áin	0.25 Ám	2 mm	0.079 in	Free Hanging (In-Line)	Crimp	Discrete	0.079 in	2 mm	Receptacle	2	Cable Hood Kit Jackscrews	Female Socket	24 AWG	28 AWG	Black
Harwin Inc. M80-9421005	Gold	10	10 Áin	0.25 Ám	2 mm	0.079 in	Free Hanging (In-Line)	Crimp	Discrete	0.079 in	2 mm	Receptacle	2	Cable Hood Kit Jackscrews	Female Socket	24 AWG	28 AWG	Black
Harwin Inc. M80-9421405	Gold	14	10 Áin	0.25 Ám	2 mm	0.079 in	Free Hanging (In-Line)	Crimp	Discrete	0.079 in	2 mm	Receptacle	2	Cable Hood Kit Jackscrews	Female Socket	24 AWG	28 AWG	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
