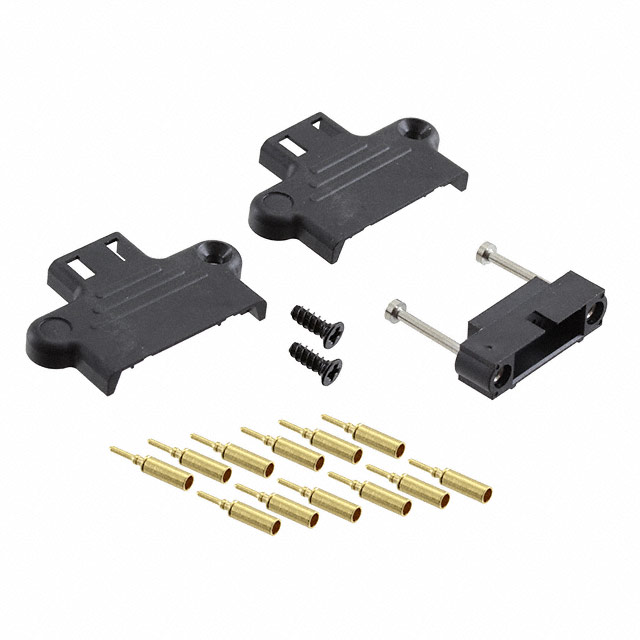

Specification	M80-9421205

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Type	Female Socket
Features	Cable Hood Kit, Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Number of Rows	2
Pitch	0.079 in
Row Spacing	0.079 in
Wire Gauge (AWG) (Max)	28 AWG
Wire Gauge (AWG) (Min)	24 AWG
Wire Type	Discrete

Mix-Tek Series

Part	Contact Type	Cable Termination	Wire Type	Contact Finish Thickness	Contact Finish	Features	Number of Rows	Number of Positions	Pitch	Color	Row Spacing	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Connector Type	Mounting Type	Fastening Type	Contact Shape	Insulation Height	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Shrouding	Termination	Contact Finish - Mating	Material Flammability Rating	Contact Material	Number of Positions Loaded	Contact Length - Post	Pitch - Mating	Style	Insulation Material	Current Rating	Contact Finish Thickness - Mating	Insulation Color	Contact Finish - Post	Row Spacing - Mating	Number of Positions (Normal)	Number of Positions (Power)	Number of Positions (Total)	Voltage Rating (Type)	Position Types	Pin or Socket	Contact Termination	Wire Gauge	Type	Current Rating Options
Harwin Inc. M80-9421205	Female Socket	Crimp	Discrete	10 Ąin	Gold	Cable Hood Kit Jackscrews	2	12	0.079 in	Black	0.079 in	28 AWG	24 AWG	Receptacle	Free Hanging (In-Line)
Harwin Inc. M80-5000000M5-06-333-00-000	Male Pin Power					Keying Slot Mating Flange Mounting Flange Mounting Hardware	1	6						Header	Right Angle Through Hole	Threaded	Circular	0.218 in	800 V	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Gold	UL94 V-0	Copper Alloy	All	0.138 in	0.157 in	Board Cable/Wire	Glass Filled Polyphenylene Sulfide (PPS)	20 A	10 µin	Black
Harwin Inc. M80-5000000MB-03-339-00-000	Coaxial Male Pin	Crimp	Coaxial		Gold	Jackscrews Polarizing Key	1	3	0.157 in	Black				Plug	Free Hanging (In-Line)	Screw Lock
Harwin Inc. M80-5T11422MC	Male Pin					Keying Slot Mating Flange	2	14						Header	Through Hole	Push-Turn Lock	Circular	0.22 in	120 V	121 °C	-55 °C	Shrouded - 4 Wall	Solder	Gold	UL94 V-0	Phosphor Bronze	All	0.13 in	0.079 in	Board Board or Cable	Glass Filled Polyphenylene Sulfide (PPS)	2.2 A	29.5 Ąin	Black	Tin-Lead	0.079 in
Harwin Inc. M80-5T10805M1-02-331-00-000	Male Pin					Keying Slot Mating Flange	2							Header	Through Hole	Threaded	Circular	0.22 in		125 °C	-55 °C	Shrouded - 4 Wall	Solder	Gold	UL94 V-0		All	0.13 in	0.079 in	Board Cable/Wire	Glass Filled Polyphenylene Sulfide (PPS)			Black		0.079 in	8	2	10
Harwin Inc. M80-5T21405MF	Male Pin					Keying Slot Mating Flange Mounting Flange Mounting Hardware Shielded	2	14						Header	Through Hole	Threaded	Circular	0.22 in	800 V	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Gold	UL94 V-0	Phosphor Bronze	All	0.173 in	0.079 in	Board Board or Cable	Glass Filled Polyphenylene Sulfide (PPS)	2.2 A	29.5 Ąin	Black	Gold	0.079 in				DC
Harwin Inc. M80-5000000M5-05-333-00-000	Male Pin Power					Board Guide	1	5						Header	Through Hole	Threaded	Circular	0.238 in	800 V	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Gold	UL94 V-0	Copper Alloy	All		0.157 in	Board	Glass Filled Polyphenylene Sulfide (PPS)	20 A		Black	Gold					DC	Power
Harwin Inc. M80-32C					Gold																																					Socket	Solder	16 AWG	Power
Harwin Inc. M80-5T10805M3-04-331-00-000	Male Pin Power					Keying Slot Mating Flange Mounting Flange Mounting Hardware								Header	Through Hole	Threaded	Circular	0.22 in	800 V	125 °C	-55 °C	Shrouded - 4 Wall	Solder	Gold	UL94 V-0	Copper Alloy Phosphor Bronze	All	0.13 in		Board Cable/Wire	Glass Filled Polyphenylene Sulfide (PPS)		29.5 Ąin	Black	Gold		8	4	12	DC						2.2A 20A
Harwin Inc. M80-9422605	Female Socket	Crimp	Discrete	10 Ąin	Gold	Cable Hood Kit Jackscrews	2	26	0.079 in	Black	0.079 in	28 AWG	24 AWG	Receptacle	Free Hanging (In-Line)
