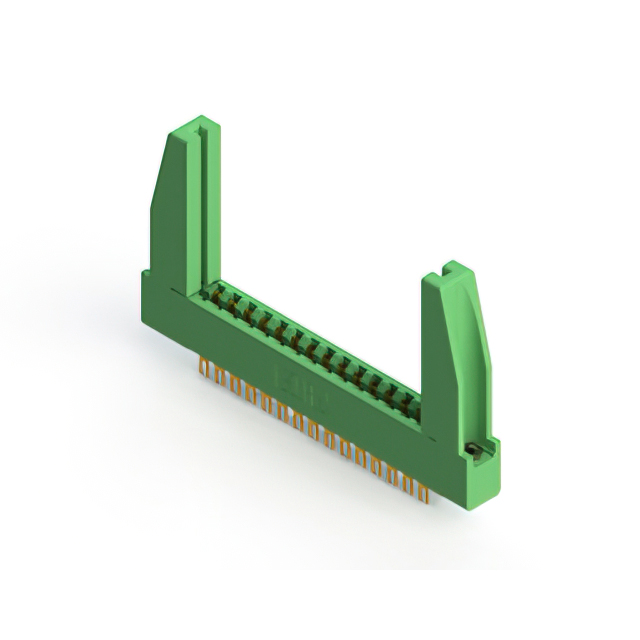

Specification	305-030-500-578

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Panel Mount
Number of Positions	30, 15
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2 rows

305-030 Series

Part	Termination	Number of Positions	Card Type	Mounting Type	Gender	Card Thickness (Min)	Card Thickness (Max)	Contact Type	Color	Flange Feature Diameter	Flange Feature	Contact Finish	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Read Out	Pitch	Contact Finish Thickness	Number of Rows	Termination Rows	Material - Insulation	Features
EDAC Inc. 305-030-500-204	Solder Eyelet(s)	15 30	Dual Edge Non Specified	Panel Mount	Female	0.054 in	0.07 in	Semi Bellows	Green	0.156 in	Flush Mount Top Opening Unthreaded	Gold	Copper Alloy	-40 °C	105 °C	Dual	0.156 in	10 Ąin	2	2 rows	Polyester Thermoplastic
EDAC Inc. 305-030-500-578	Solder Eyelet(s)	15 30	Dual Edge Non Specified	Panel Mount	Female	0.054 in	0.07 in	Semi Bellows	Green		4-40 Flush Mount Threaded Insert Top Opening	Gold	Copper Alloy	-40 °C	105 °C	Dual	0.156 in	10 Ąin	2	2 rows	Polyester Thermoplastic
EDAC Inc. 305-030-520-558	Solder	15 30	Dual Edge Non Specified	Panel Mount Through Hole	Female	0.054 in	0.07 in	Semi Bellows	Green		4-40 Flush Mount Threaded Insert Top Opening	Gold	Copper Alloy	-40 °C	105 °C	Dual	0.156 in	10 Ąin	2	2 rows	Polyester Thermoplastic
EDAC Inc. 305-030-556-268	Solder	15 30	Dual Edge Non Specified	Board Edge Straddle Mount	Female	0.054 in	0.07 in	Semi Bellows	Green		4-40 Flush Mount Threaded Insert Top Opening	Gold	Copper Alloy	-40 °C	105 °C	Dual	0.156 in	10 Ąin	2	2 rows	Polyester Thermoplastic	Card Extender Card Guides
EDAC Inc. 305-030-520-504	Solder	15 30	Dual Edge Non Specified	Panel Mount Through Hole	Female	0.054 in	0.07 in	Semi Bellows	Green	0.156 in	Flush Mount Top Opening Unthreaded	Gold	Copper Alloy	-40 °C	105 °C	Dual	0.156 in	10 Ąin	2	2 rows	Polyester Thermoplastic
EDAC Inc. 305-030-520-502	Solder	15 30	Dual Edge Non Specified	Panel Mount Through Hole	Female	0.054 in	0.07 in	Semi Bellows	Green	0.128 in	Flush Mount Top Opening Unthreaded	Gold	Copper Alloy	-40 °C	105 °C	Dual	0.156 in	10 Ąin	2	2 rows	Polyester Thermoplastic
EDAC Inc. 305-030-556-568	Solder	15 30	Dual Edge Non Specified	Board Edge Straddle Mount	Female	0.054 in	0.07 in	Semi Bellows	Green		4-40 Flush Mount Threaded Insert Top Opening	Gold	Copper Alloy	-40 °C	105 °C	Dual	0.156 in	10 Ąin	2	2 rows	Polyester Thermoplastic	Card Extender Card Guides
EDAC Inc. 305-030-555-507	Solder	15 30	Dual Edge Non Specified	Board Edge Straddle Mount	Female	0.054 in	0.07 in	Semi Bellows	Green		Flush Mount M3 Threaded Insert Top Opening	Gold	Copper Alloy	-40 °C	105 °C	Dual	0.156 in	10 Ąin	2	2 rows	Polyester Thermoplastic	Card Extender
EDAC Inc. 305-030-521-578	Solder	15 30	Dual Edge Non Specified	Panel Mount Through Hole	Female	0.054 in	0.07 in	Semi Bellows	Green		4-40 Flush Mount Threaded Insert Top Opening	Gold	Copper Alloy	-40 °C	105 °C	Dual	0.156 in	10 Ąin	2	2 rows	Polyester Thermoplastic
EDAC Inc. 305-030-521-558	Solder	15 30	Dual Edge Non Specified	Panel Mount Through Hole	Female	0.054 in	0.07 in	Semi Bellows	Green		4-40 Flush Mount Threaded Insert Top Opening	Gold	Copper Alloy	-40 °C	105 °C	Dual	0.156 in	10 Ąin	2	2 rows	Polyester Thermoplastic
