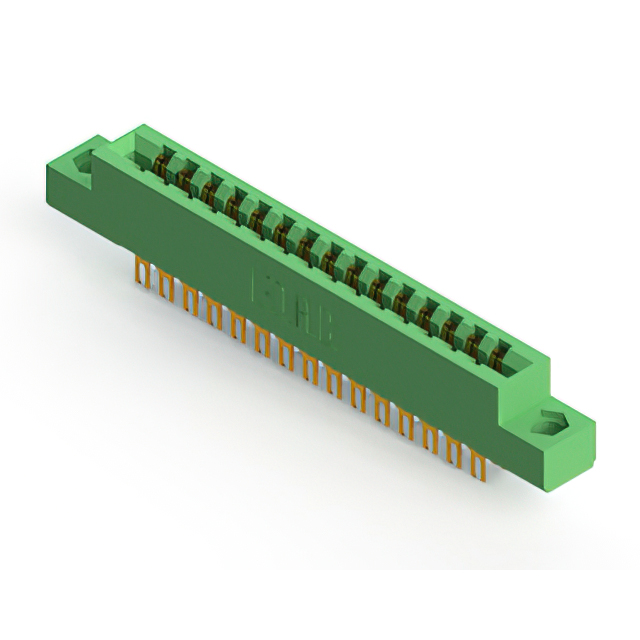

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
305-030-500-204
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-030-500-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
305-030 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Material - Insulation | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Contact Material | Card Type | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Termination Rows | Number of Rows | Color | Number of Positions | Gender | Contact Type | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | 15 | Polyester Thermoplastic | Solder Eyelet(s) | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | 2 | 2 | Green | 30 | Female | Semi Bellows | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 15 | Polyester Thermoplastic | Solder Eyelet(s) | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 2 | 2 | Green | 30 | Female | Semi Bellows | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 15 | Polyester Thermoplastic | Solder | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 2 | 2 | Green | 30 | Female | Semi Bellows | Panel Mount Through Hole | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 15 | Polyester Thermoplastic | Solder | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Gold | 2 | 2 | Green | 30 | Female | Semi Bellows | Panel Mount Through Hole | |
EDAC Inc. | 10 Áin | 0.25 Ám | 15 | Polyester Thermoplastic | Solder | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 2 | 2 | Green | 30 | Female | Semi Bellows | Board Edge Straddle Mount | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 15 | Polyester Thermoplastic | Solder | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Gold | 2 | 2 | Green | 30 | Female | Semi Bellows | Board Edge Straddle Mount | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 15 | Polyester Thermoplastic | Solder | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 2 | 2 | Green | 30 | Female | Semi Bellows | Panel Mount Through Hole | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 15 | Polyester Thermoplastic | Solder | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold | 2 | 2 | Green | 30 | Female | Semi Bellows | Panel Mount Through Hole | |
EDAC Inc. | 10 Áin | 0.25 Ám | 15 | Polyester Thermoplastic | Solder | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Gold | 2 | 2 | Green | 30 | Female | Semi Bellows | Board Edge Straddle Mount | Card Extender |
EDAC Inc. | 10 Áin | 0.25 Ám | 15 | Polyester Thermoplastic | Solder | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Copper Alloy | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 2 | 2 | Green | 30 | Female | Semi Bellows | Board Edge Straddle Mount |
