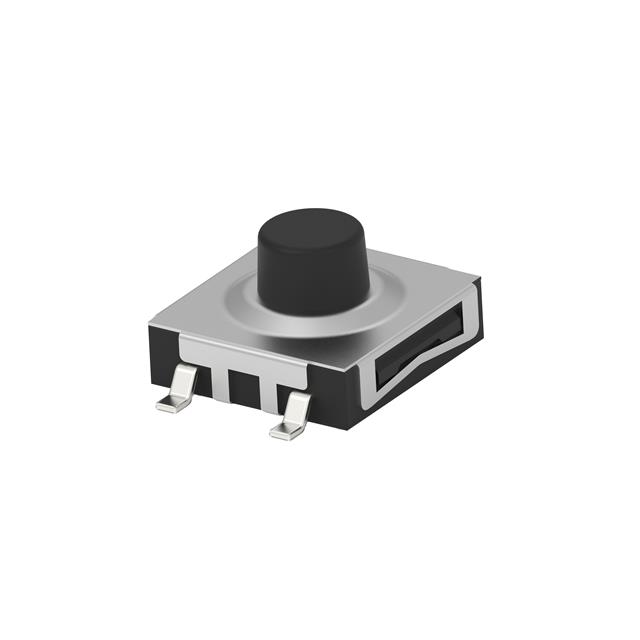

FSM4JSSMTR

Active

TE Connectivity Raychem Cable Protection

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	FSM4JSSMTR

Actuator Height off PCB, Vertical	5 mm
Actuator Material	Thermoplastic
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Fully
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Outline [x]	7.6 mm
Outline [y]	7.3 mm
Switch Function	Off-Mom
Switch Travel	0.35 mm
Termination Style	Gull Wing

Part	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Outline [y]	Outline [x]	Switch Travel	Circuit	Switch Function	Mechanical Life	Termination Style	Actuator Orientation	Illumination	Actuator Type	Mounting Type	Actuator Height off PCB, Vertical	Contact Rating @ Voltage	Ingress Protection	Features	Operating Force
TE Connectivity Raychem Cable Protection FSM4JSMATR	85 °C	-40 °C	Polyphenylene Sulfide (PPS)	6 mm	6 mm	0.25 mm	SPST-NO	Off-Mom	100000 Cycles	Gull Wing	Top Actuated	Non-Illuminated	Standard	Surface Mount	5 mm	0.05 A 24 VDC
TE Connectivity Raychem Cable Protection FSM4JSMA	85 °C	-40 °C	Polyphenylene Sulfide (PPS)	6 mm	6 mm	0.25 mm	SPST-NO	Off-Mom	100000 Cycles	Gull Wing	Top Actuated	Non-Illuminated	Standard	Surface Mount	5 mm	0.05 A 24 VDC
TE Connectivity Raychem Cable Protection FSM4JSSMTR	85 °C	-35 °C	Thermoplastic	7.3 mm	7.6 mm	0.35 mm	SPST-NO	Off-Mom	1000000 Cycles	Gull Wing	Top Actuated	Non-Illuminated	Standard	Surface Mount	5 mm	0.05 A 24 VDC	IP67 - Dust Tight Waterproof	Sealed - Fully
TE Connectivity Raychem Cable Protection FSM4JART	105 ░C	-35 °C	Polybutylene Terephthalate (PBT)	6 mm	6 mm	0.25 mm	SPST-NO	Off-Mom	100000 Cycles	PC Pin	Top Actuated	Non-Illuminated	Standard	Through Hole	5 mm	0.05 A 24 VDC			260 gf
TE Connectivity Raychem Cable Protection FSM4JRT	105 ░C	-35 °C	Nylon 6/6 Polyamide (PA66)	6 mm	6 mm	0.25 mm	SPST-NO	Off-Mom	100000 Cycles	PC Pin	Top Actuated	Non-Illuminated	Standard	Through Hole	5 mm	0.05 A 24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
