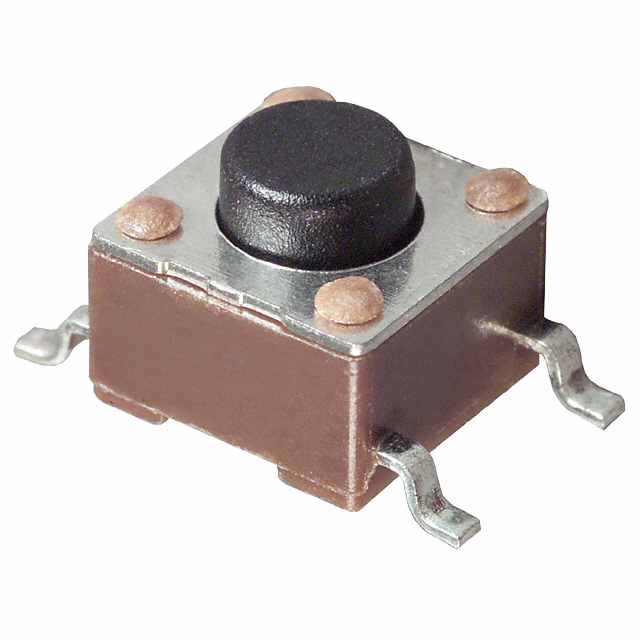

FSM4JSMATR
ActiveTE Connectivity Raychem Cable Protection
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
FSM4JSMATR
ActiveTE Connectivity Raychem Cable Protection
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FSM4JSMATR |
|---|---|
| Actuator Height off PCB, Vertical | 5 mm |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 6 mm |
| Outline [y] | 6 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.24 | |||
| Tape & Reel (TR) | 1200 | $ 0.22 | ||
| 2400 | $ 0.21 | |||
| 3600 | $ 0.20 | |||
| 6000 | $ 0.19 | |||
| 8400 | $ 0.18 | |||
| 12000 | $ 0.18 | |||
| 30000 | $ 0.16 | |||
| 60000 | $ 0.15 | |||
Description
General part information
FSM4 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
Documents
Technical documentation and resources
No documents available
