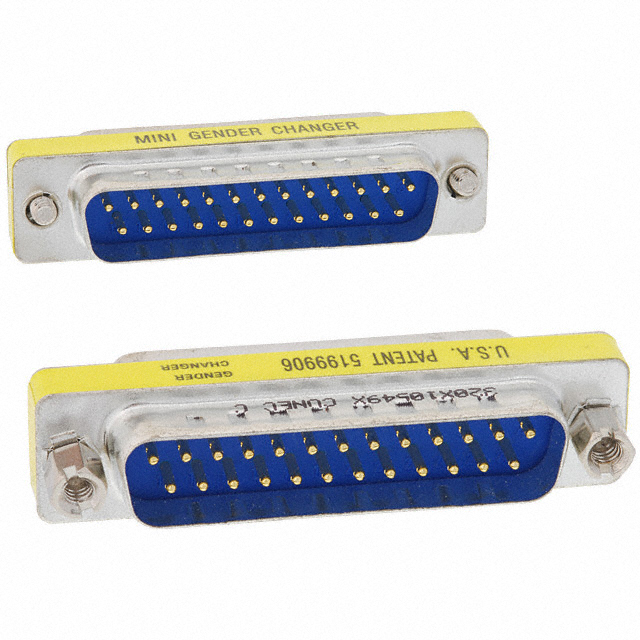

320X10549X

Active

Amphenol CONEC

DSUB GENDER CHANGER DB25M DB25M

Search across all available documentation for this part.

Active

Amphenol CONEC

DSUB GENDER CHANGER DB25M DB25M

Technical Specifications

Parameters and characteristics for this part

Specification	320X10549X

Connector Style	Gender Changer
Contact Finish	Gold
Contact Finish Thickness	Flash
Convert From (Adapter End)	D-Sub, 25 Pin Male
Convert To (Adapter End)	D-Sub, 25 Pin Male
Current Rating (Amps)	7.5 A
Features	Grounding Indents
Housing Color	Yellow
Includes	1 Connector, 2 Jack Screws
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Voltage Rating	125 VDC

Part	Material Flammability Rating	Convert To (Adapter End)	Contact Finish	Convert From (Adapter End)	Number of Rows	Housing Color	Connector Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Voltage Rating	Contact Finish Thickness	Includes	Contact Finish Thickness	Contact Finish Thickness
Amphenol CONEC 320X10549X	UL94 V-0	D-Sub 25 Pin Male	Gold	D-Sub 25 Pin Male	2	Yellow	Gender Changer	Grounding Indents	-55 °C	125 °C	7.5 A	Free Hanging (In-Line)	125 VDC	Flash	1 Connector 2 Jack Screws
Amphenol CONEC 320X10559X	UL94 V-0	D-Sub 25 Pin Female	Gold	D-Sub 25 Pin Female	2	Yellow	Gender Changer		-55 °C	125 °C	7.5 A	Free Hanging (In-Line)	125 VDC		1 Connector 4 Jack Screws	8 çin	0.203 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Connector D-Sub, 25 Pin Male To D-Sub, 25 Pin Male Free Hanging (In-Line)
