LMZM23601V3EVM

Active

Texas Instruments

EVAL MODULE FOR LMZM23601

LMZM23601V3EVM

Active

Texas Instruments

EVAL MODULE FOR LMZM23601

Description Specifications Series Pricing CAD Documents

Description

General part information

LMZM23601 Series

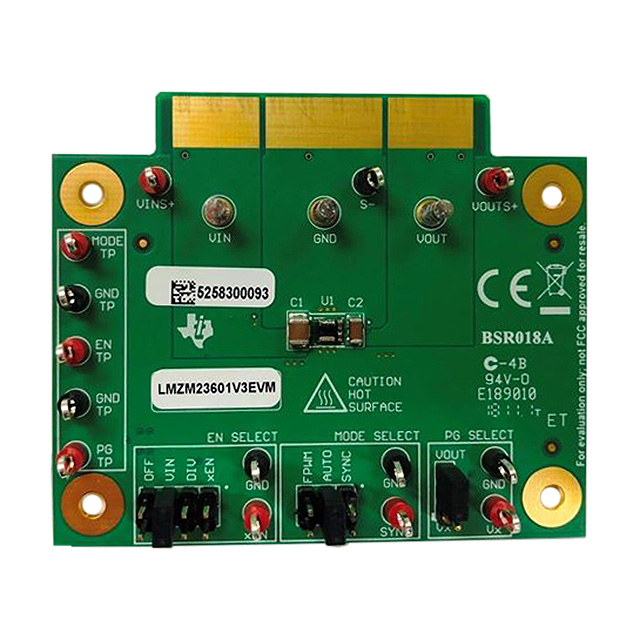

LMZM23601 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

Technical Specifications

Parameters and characteristics for this part

Specification	LMZM23601V3EVM

Board Type	Fully Populated
Contents	Board
Current - Output	1 A
Frequency - Switching	750 kHz
Main Purpose	DC/DC, Step Down
Non-Isolated Output Count	1 count
Output Type	Non-Isolated
Regulator Topology	Buck
Supplied Contents	Board(s)
Total Output Count	1
Utilized IC / Part	LMZM23601
Voltage - Input (Maximum)	36 V
Voltage - Input (Minimum)	4 V
Voltage - Output	3.3 V

LMZM23601 Series

Part	Voltage - Output 1	Mounting Type	Current - Output (Max)	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Efficiency	Number of Outputs	Voltage - Input (Max)	Voltage - Input (Min)	Features	Type	Package / Case	Applications	Package Name	Package Width	Package Length	Voltage - Output 1 (Min)	Voltage - Output 1 (Max)	Total Output Count	Output Type	Non-Isolated Output Count	Board Type	Supplied Contents	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Voltage - Output (Min)	Voltage - Output (Max)	Frequency - Switching	Contents	Current - Output	Regulator Topology	Utilized IC / Part	Main Purpose	Voltage - Output
Texas Instruments LMZM23601V3SILR	3.3 V	Surface Mount	1 A	0.12 in	0.06 in	0.15 in	125 °C	-40 °C	81 %	1	36 V	4 V	OCP SCP UVLO	Non-Isolated PoL Module	10-LDFN Exposed Pad Module	ITE (Commercial)	10-uSIP	3 mm	3.8 mm
Texas Instruments LMZM23601SILR		Surface Mount	1 A	0.12 in	0.06 in	0.15 in	125 °C	-40 °C		1	36 V	4 V	OCP SCP UVLO	Non-Isolated PoL Module	10-LDFN Exposed Pad Module	ITE (Commercial)	10-uSIP	3 mm	3.8 mm	1.2 V	15 V
Texas Instruments LMZM23601V5SILR	5 V	Surface Mount	1 A	0.12 in	0.06 in	0.15 in	125 °C	-40 °C	87 %	1	36 V	4 V	OCP SCP UVLO	Non-Isolated PoL Module	10-LDFN Exposed Pad Module	ITE (Commercial)	10-uSIP	3 mm	3.8 mm
Texas Instruments LMZM23601V5SILT	5 V	Surface Mount	1 A	0.12 in	0.06 in	0.15 in	125 °C	-40 °C	87 %	1	36 V	4 V	OCP SCP UVLO	Non-Isolated PoL Module	10-LDFN Exposed Pad Module	ITE (Commercial)	10-uSIP	3 mm	3.8 mm
Texas Instruments LMZM23601V3SILT	3.3 V	Surface Mount	1 A	0.12 in	0.06 in	0.15 in	125 °C	-40 °C	81 %	1	36 V	4 V	OCP SCP UVLO	Non-Isolated PoL Module	10-LDFN Exposed Pad Module	ITE (Commercial)	10-uSIP	3 mm	3.8 mm
Texas Instruments LMZM23601EVM																						1	Non-Isolated	1 count	Fully Populated	Board(s)	4 V	36 V	2.5 V	15 V	800 kHz	Board	1 A	Buck	LMZM23601	DC/DC Step Down
Texas Instruments LMZM23601V5EVM																						1	Non-Isolated	1 count	Fully Populated	Board(s)	4 V	36 V			750 kHz	Board	1 A	Buck	LMZM23601	DC/DC Step Down	5 VDC
Texas Instruments LMZM23601SILT		Surface Mount	1 A	0.12 in	0.06 in	0.15 in	125 °C	-40 °C		1	36 V	4 V	OCP SCP UVLO	Non-Isolated PoL Module	10-LDFN Exposed Pad Module	ITE (Commercial)	10-uSIP	3 mm	3.8 mm	1.2 V	15 V
Texas Instruments LMZM23601V3EVM																						1	Non-Isolated	1 count	Fully Populated	Board(s)	4 V	36 V			750 kHz	Board	1 A	Buck	LMZM23601	DC/DC Step Down	3.3 V
