2-1393230-2

Obsolete

TE Connectivity Potter & Brumfield Relays

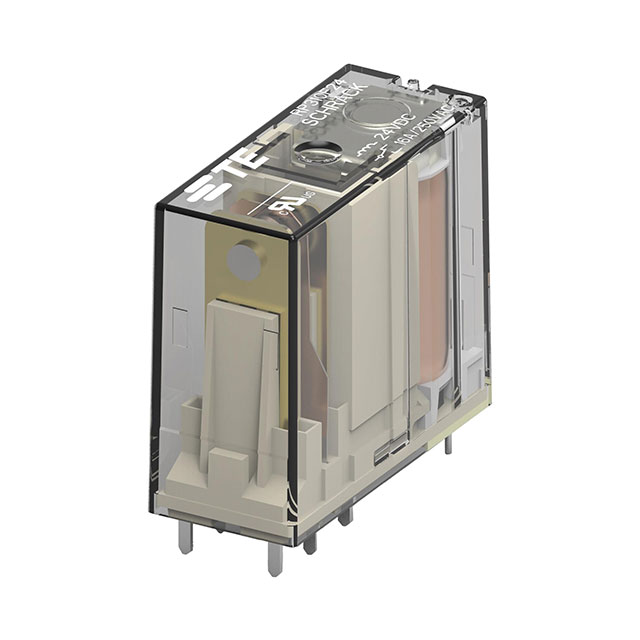

RELAY GEN PURPOSE SPDT 16A 24V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Must Operate Voltage	Relay Type	Release Time	Termination Style	Coil Voltage	Switching Voltage [Max]	Contact Rating (Current)	Approval Agency	Operate Time	Coil Type	Load - Max Switching	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Contact Form	Coil Resistance	Coil Current	Seal Rating
TE Connectivity Potter & Brumfield Relays 1-1393230-9	3.7 VDC	General Purpose	2 ms	PC Pin	5 VDC	400 VAC	16 A	cURus VDE	8 ms	Latching Dual Coil	6400 VA	-40 °C	70 °C	Through Hole	Silver Cadmium Oxide (AgCdO)	SPDT (1 Form C)
TE Connectivity Potter & Brumfield Relays 2-1393230-1	9 VDC	General Purpose	2 ms	PC Pin	12 VDC	400 VAC	16 A		8 ms	Non Latching	6400 VA	-40 °C	70 °C	Through Hole	Silver Cadmium Oxide (AgCdO)	SPDT (1 Form C)	105 Ohms	114.3 mA
TE Connectivity Potter & Brumfield Relays 2-1393230-2		General Purpose	2 ms	PC Pin	24 VDC	400 VAC	16 A	cURus VDE	8 ms	Latching Dual Coil	6400 VA	-40 °C	70 °C	Through Hole	Silver Cadmium Oxide (AgCdO)	SPDT (1 Form C)			Sealed - Flux Protection

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
