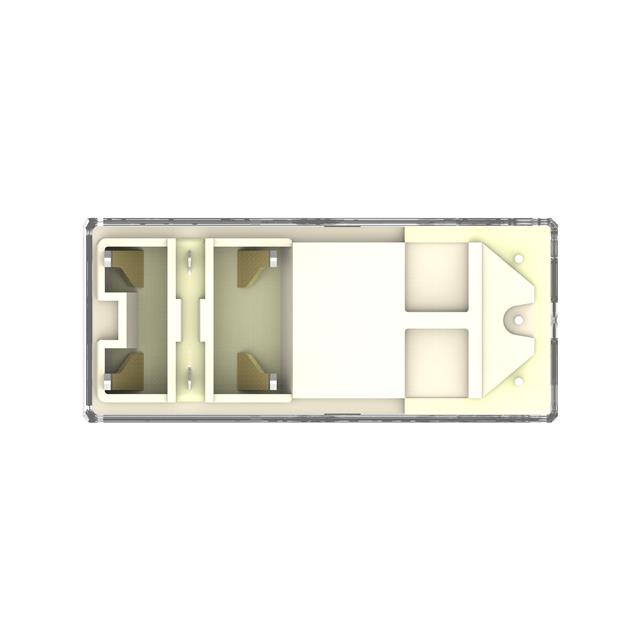

1-1393230-9
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1393230-9
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1393230-9 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Type | Latching, Dual Coil |
| Coil Voltage | 5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 6400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.7 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 2 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
RP310F Series
| Part | Must Operate Voltage | Relay Type | Release Time | Termination Style | Coil Voltage | Switching Voltage [Max] | Contact Rating (Current) | Approval Agency | Operate Time | Coil Type | Load - Max Switching | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Material | Contact Form | Coil Resistance | Coil Current | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Potter & Brumfield Relays | 3.7 VDC | General Purpose | 2 ms | PC Pin | 5 VDC | 400 VAC | 16 A | cURus VDE | 8 ms | Latching Dual Coil | 6400 VA | -40 °C | 70 °C | Through Hole | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | |||
TE Connectivity Potter & Brumfield Relays | 9 VDC | General Purpose | 2 ms | PC Pin | 12 VDC | 400 VAC | 16 A | 8 ms | Non Latching | 6400 VA | -40 °C | 70 °C | Through Hole | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | 105 Ohms | 114.3 mA | ||
TE Connectivity Potter & Brumfield Relays | General Purpose | 2 ms | PC Pin | 24 VDC | 400 VAC | 16 A | cURus VDE | 8 ms | Latching Dual Coil | 6400 VA | -40 °C | 70 °C | Through Hole | Silver Cadmium Oxide (AgCdO) | SPDT (1 Form C) | Sealed - Flux Protection |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RP310F Series
General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
