224-5205-01

Active

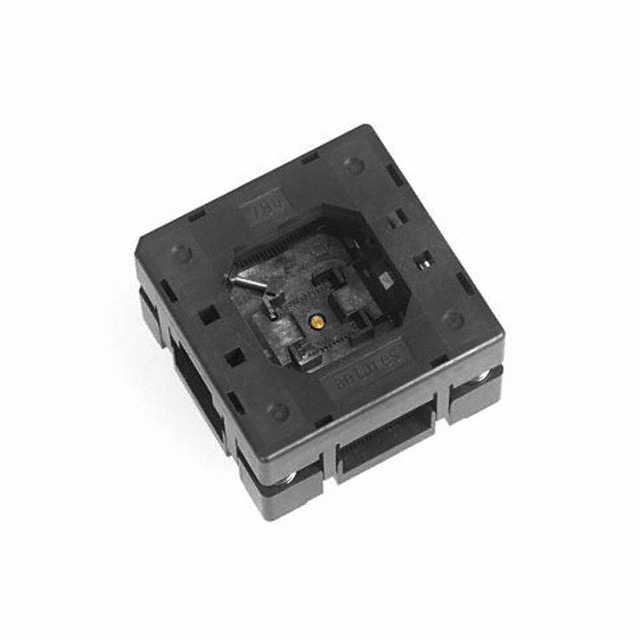

IC & COMPONENT SOCKET, 24 CONTACTS, QFN TEST SOCKET, 0.5 MM, 224 SERIES, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

224-5205-01

Active

IC & COMPONENT SOCKET, 24 CONTACTS, QFN TEST SOCKET, 0.5 MM, 224 SERIES, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 108.19
		20	$ 99.28
		40	$ 92.28
		100	$ 87.19
Newark	Each	1	$ 144.30

Description

General part information

224 Series

24 (4x4) Pos QFN Socket Gold Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Technical Data Sheet EN

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	224-5205-01	224 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	-	30 Áin
Contact Finish Thickness - Mating	-	0.76 Ám
Contact Finish Thickness - Post	-	30 µin
Contact Finish Thickness - Post	-	0.76 µm
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post	Beryllium Copper	Beryllium Copper
Contact Resistance	25 mOhm	15 - 25 mOhm
Convert From (Adapter End)	-	DIP
Convert From (Adapter End)	-	0.3 in
Convert From (Adapter End)	-	0.6 - 7.62 mm
Convert From (Adapter End)	-	15.24 mm
Convert To (Adapter End)	-	0.3 - 0.6 in
Convert To (Adapter End)	-	DIP
Convert To (Adapter End)	-	7.62 - 15.24 mm
Current Rating (Amps)	-	1 A
Features	-	Closed Frame
Housing Material	Polyethersulfone (PES)	Polysulfone (PSU), Glass Filled, Polyethersulfone (PES)
Material Flammability Rating	-	UL94 V-0
Mounting Type	Through Hole	Through Hole, Connector
Number of Pins	-	24
Number of Positions or Pins (Grid)	24	24
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Pitch - Mating	0.02 in	0.02 - 0.1 in
Pitch - Mating	0.5 mm	0.5 - 2.54 mm
Pitch - Post	-	2.54 mm
Pitch - Post	-	0.1 in
Termination	Solder	Solder, Press-Fit, Wire Wrap
Termination Post Length	0.118 in	0.11 - 0.13 in
Termination Post Length	3 mm	2.78 - 3.3 mm
Termination Post Length	-	0.62 in
Termination Post Length	-	15.75 mm
Type	QFN	QFN, DIP, ZIF (ZIP)
Type	-	7.62 mm
Type	-	0.3 in

224 Series

IC & COMPONENT SOCKET, 24 CONTACTS, DIP SOCKET, 2.54 MM, 224 SERIES, 7.62 MM, BERYLLIUM COPPER

Part	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Pitch - Post	Pitch - Post	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Contact Material - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Material - Mating	Housing Material	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Number of Pins	Termination Post Length	Termination Post Length	Type	Number of Positions or Pins (Grid)	Contact Resistance	Type	Type	Features	Termination Post Length [x]	Termination Post Length [x]	Convert From (Adapter End)
3M 224-5248-19-0602J	0.3 in	DIP	7.62 mm	2.54 mm	0.1 in	UL94 V-0	Through Hole	Gold	-55 °C	125 °C	DIP	0.3 in	7.62 mm	Beryllium Copper	1 A	30 Áin	0.76 Ám	0.1 in	2.54 mm	Beryllium Copper	Polysulfone (PSU), Glass Filled	Gold	30 µin	0.76 µm	Solder	24
3M 224-5205-01							Through Hole	Gold						Beryllium Copper				0.02 in	0.5 mm	Beryllium Copper	Polyethersulfone (PES)	Gold			Solder		0.118 in	3 mm	QFN	24	25 mOhm
3M 224-5248-00-0602J				2.54 mm	0.1 in	UL94 V-0	Connector	Gold	-55 °C	125 °C				Beryllium Copper	1 A	30 Áin	0.76 Ám	0.1 in	2.54 mm	Beryllium Copper	Polysulfone (PSU), Glass Filled	Gold	30 µin	0.76 µm	Press-Fit		0.11 in	2.78 mm	DIP, ZIF (ZIP)	24	15 mOhm	7.62 mm	0.3 in	Closed Frame
3M 224-1275-19-0602J	0.6 in	DIP	15.24 mm	2.54 mm	0.1 in	UL94 V-0	Through Hole	Gold	-55 °C	125 °C	DIP		0.6 in	Beryllium Copper	1 A	30 Áin	0.76 Ám	0.1 in	2.54 mm	Beryllium Copper	Polysulfone (PSU), Glass Filled	Gold	30 µin	0.76 µm	Wire Wrap	24								Closed Frame	0.62 in	15.75 mm	15.24 mm
3M 224-1275-29-0602J	0.6 in	DIP	15.24 mm	2.54 mm	0.1 in	UL94 V-0	Through Hole	Gold	-55 °C	125 °C	DIP		0.6 in	Beryllium Copper	1 A	30 Áin	0.76 Ám	0.1 in	2.54 mm	Beryllium Copper	Polysulfone (PSU), Glass Filled	Gold	30 µin	0.76 µm	Solder	24	0.13 in	3.3 mm						Closed Frame			15.24 mm
