TSM-105-01-SM-SH-A-P-TR

Active

Samtec Inc.

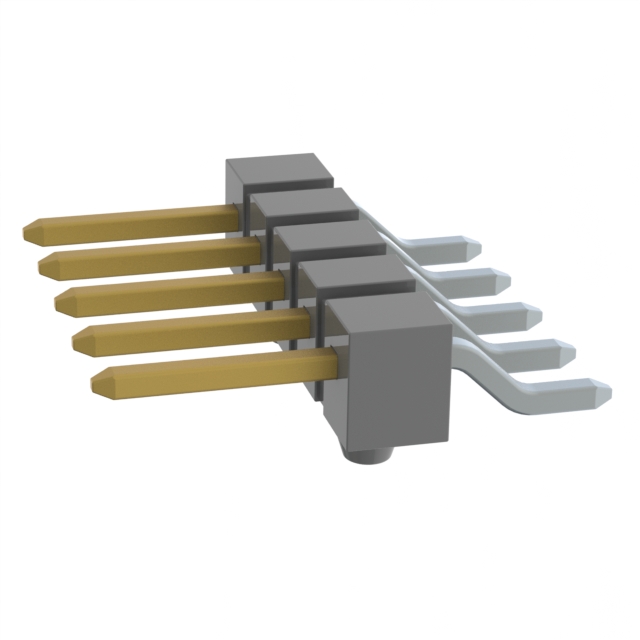

CONN HEADER SMD R/A 5POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSM-105-01-SM-SH-A-P-TR

Active

Samtec Inc.

CONN HEADER SMD R/A 5POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-105-01-SM-SH-A-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-105 Series

Headers & Wire Housings .100" Surface Mount Terminal Strip

...

Part	Material Flammability Rating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish - Mating	Number of Positions Loaded	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Mounting Type	Shrouding	Style	Number of Rows	Contact Shape	Contact Length - Mating	Contact Length - Mating	Termination	Insulation Material	Features	Number of Positions	Number of Positions Loaded	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TSM-105-04-S-SV-001	UL94 V-0	Male Pin	30 Áin	0.76 Ám	Tin	Gold	4	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Cuttable Header	-55 °C	125 °C	0.1 in	2.54 mm	Surface Mount	Unshrouded	Board to Board Cable	1	Square	3.05 mm	0.12 in	Solder	Liquid Crystal Polymer (LCP)
Samtec Inc. TSM-105-01-T-DH-LC-P-TR	UL94 V-0	Male Pin			Tin			Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Header	-55 °C	105 ░C	0.24 in	6.1 mm	Surface Mount Right Angle	Unshrouded	Board to Board Cable	2	Square	5.84 mm		Solder	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place	10	All	0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-118-01-S-SV
Samtec Inc. TSM-105-02-S-SH	UL94 V-0	Male Pin	30 Áin	0.76 Ám	Tin	Gold		Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Header	-55 °C	125 °C	0.12 in	3.05 mm	Surface Mount Right Angle	Unshrouded	Board to Board Cable	1	Square	8.13 mm	0.32 in	Solder	Liquid Crystal Polymer (LCP)			All
Samtec Inc. TSM-105-01-TM-DH-P-TR	UL94 V-0	Male Pin			Tin			Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Header	-55 °C	105 ░C	0.24 in	6.1 mm	Surface Mount Right Angle	Unshrouded	Board to Board Cable	2	Square	5.84 mm		Solder	Liquid Crystal Polymer (LCP)	Pick and Place	10	All	0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-110-03-S-SV-LC	UL94 V-0	Male Pin	30 Áin	0.76 Ám	Tin	Gold		Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Cuttable Header	-55 °C	125 °C	0.1 in	2.54 mm	Surface Mount	Unshrouded	Board to Board Cable	1	Square	10.67 mm	0.42 in	Solder	Liquid Crystal Polymer (LCP)		10	All
Samtec Inc. TSM-105-01-L-DV-LC	UL94 V-0	Male Pin	10 çin	0.25 çm	Tin	Gold		Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Cuttable Header	-55 °C	125 °C	0.1 in	2.54 mm	Surface Mount	Unshrouded	Board to Board Cable	2	Square	5.84 mm		Solder	Liquid Crystal Polymer (LCP)		10	All	0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-105-01-G-DV-009-P-TR	UL94 V-0	Male Pin	10 çin	0.25 çm	Gold	Gold	9	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Cuttable Header	-55 °C	125 °C	0.1 in	2.54 mm	Surface Mount	Unshrouded	Board to Board Cable	2	Square	5.84 mm		Solder	Liquid Crystal Polymer (LCP)	Pick and Place	10		0.23 in	2.54 mm	0.1 in	3 µin	0.076 µm
Samtec Inc. TSM-132-04-T-SV-P	UL94 V-0	Male Pin			Tin			Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Cuttable Header	-55 °C	105 ░C	0.1 in	2.54 mm	Surface Mount	Unshrouded	Board to Board Cable	1	Square	3.05 mm	0.12 in	Solder	Liquid Crystal Polymer (LCP)	Pick and Place		All
Samtec Inc. TSM-105-01-SM-SH-A-P-TR	UL94 V-0	Male Pin	30 Áin	0.76 Ám	Tin	Gold		Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Header	-55 °C	125 °C	0.12 in	3.05 mm	Surface Mount Right Angle	Unshrouded	Board to Board Cable	1	Square	5.84 mm		Solder	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place		All	0.23 in
