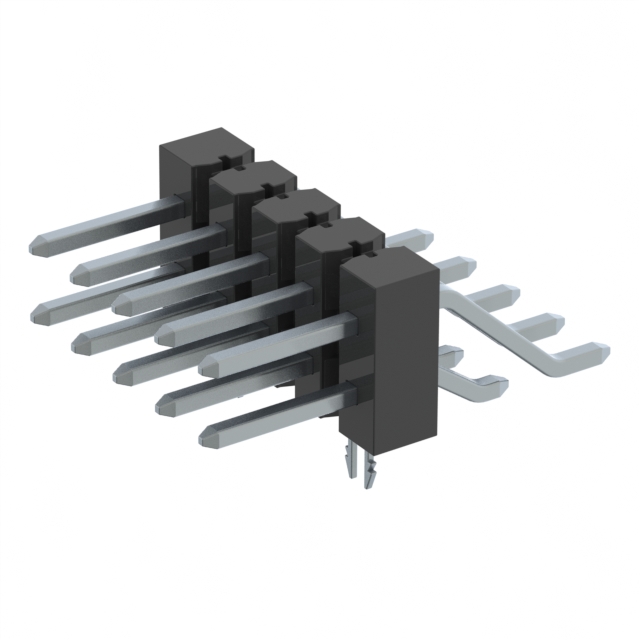

TSM-105-01-T-DH-LC-P-TR

Active

Samtec Inc.

CONN HEADER SMD R/A 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TSM Double Row, Horizontal Footprint

TSM-105-01-T-DH-LC-P-TR

Active

Samtec Inc.

CONN HEADER SMD R/A 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet TSM Double Row, Horizontal Footprint

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-105-01-T-DH-LC-P-TR

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Board Lock
Insulation Color	Black
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-105 Series

Headers & Wire Housings .100" Surface Mount Terminal Strip

...

Part	Material Flammability Rating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Finish - Mating	Number of Positions Loaded	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Mounting Type	Shrouding	Style	Number of Rows	Contact Shape	Contact Length - Mating	Contact Length - Mating	Termination	Insulation Material	Features	Number of Positions	Number of Positions Loaded	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TSM-105-04-S-SV-001	UL94 V-0	Male Pin	30 Áin	0.76 Ám	Tin	Gold	4	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Cuttable Header	-55 °C	125 °C	0.1 in	2.54 mm	Surface Mount	Unshrouded	Board to Board Cable	1	Square	3.05 mm	0.12 in	Solder	Liquid Crystal Polymer (LCP)
Samtec Inc. TSM-105-01-T-DH-LC-P-TR	UL94 V-0	Male Pin			Tin			Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Header	-55 °C	105 ░C	0.24 in	6.1 mm	Surface Mount Right Angle	Unshrouded	Board to Board Cable	2	Square	5.84 mm		Solder	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place	10	All	0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-118-01-S-SV
Samtec Inc. TSM-105-02-S-SH	UL94 V-0	Male Pin	30 Áin	0.76 Ám	Tin	Gold		Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Header	-55 °C	125 °C	0.12 in	3.05 mm	Surface Mount Right Angle	Unshrouded	Board to Board Cable	1	Square	8.13 mm	0.32 in	Solder	Liquid Crystal Polymer (LCP)			All
Samtec Inc. TSM-105-01-TM-DH-P-TR	UL94 V-0	Male Pin			Tin			Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Header	-55 °C	105 ░C	0.24 in	6.1 mm	Surface Mount Right Angle	Unshrouded	Board to Board Cable	2	Square	5.84 mm		Solder	Liquid Crystal Polymer (LCP)	Pick and Place	10	All	0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-110-03-S-SV-LC	UL94 V-0	Male Pin	30 Áin	0.76 Ám	Tin	Gold		Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Cuttable Header	-55 °C	125 °C	0.1 in	2.54 mm	Surface Mount	Unshrouded	Board to Board Cable	1	Square	10.67 mm	0.42 in	Solder	Liquid Crystal Polymer (LCP)		10	All
Samtec Inc. TSM-105-01-L-DV-LC	UL94 V-0	Male Pin	10 çin	0.25 çm	Tin	Gold		Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Cuttable Header	-55 °C	125 °C	0.1 in	2.54 mm	Surface Mount	Unshrouded	Board to Board Cable	2	Square	5.84 mm		Solder	Liquid Crystal Polymer (LCP)		10	All	0.23 in	2.54 mm	0.1 in
Samtec Inc. TSM-105-01-G-DV-009-P-TR	UL94 V-0	Male Pin	10 çin	0.25 çm	Gold	Gold	9	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Cuttable Header	-55 °C	125 °C	0.1 in	2.54 mm	Surface Mount	Unshrouded	Board to Board Cable	2	Square	5.84 mm		Solder	Liquid Crystal Polymer (LCP)	Pick and Place	10		0.23 in	2.54 mm	0.1 in	3 µin	0.076 µm
Samtec Inc. TSM-132-04-T-SV-P	UL94 V-0	Male Pin			Tin			Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Cuttable Header	-55 °C	105 ░C	0.1 in	2.54 mm	Surface Mount	Unshrouded	Board to Board Cable	1	Square	3.05 mm	0.12 in	Solder	Liquid Crystal Polymer (LCP)	Pick and Place		All
Samtec Inc. TSM-105-01-SM-SH-A-P-TR	UL94 V-0	Male Pin	30 Áin	0.76 Ám	Tin	Gold		Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Black	Header	-55 °C	125 °C	0.12 in	3.05 mm	Surface Mount Right Angle	Unshrouded	Board to Board Cable	1	Square	5.84 mm		Solder	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place		All	0.23 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	200	$ 1.41

Description

General part information

TSM-105 Series

Headers & Wire Housings .100" Surface Mount Terminal Strip

Documents

Technical documentation and resources

Datasheet

TSM Double Row, Horizontal Footprint

Datasheet
