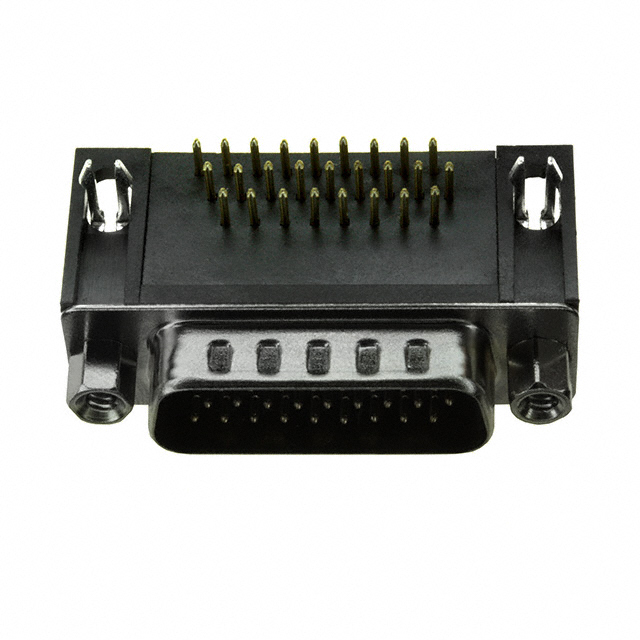

D SUB CONNECTOR, HD26, 26 CONTACTS, PLUG, SOLDER, DA, 181 SERIES, STEEL BODY

Find alt

Alpha

181-026-113R561

Active

NorComp Inc.

D SUB CONNECTOR, HD26, 26 CONTACTS, PLUG, SOLDER, DA, 181 SERIES, STEEL BODY

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

181-026 Series

The 181 series 0.35-inch spacing right angle high-density D-sub Connectors with male female connector, 4-40 inserts board locks. It has gold flash-plated brass contact with PA9T insulator and nickel plated, steel shell. It also has nickel-plated copper alloy rivet, tin-plated SPCC board lock and nickel-plated zinc alloy screw lock.

Technical Specifications

Parameters and characteristics for this part

Specification	181-026-113R561

Backset Spacing	0.35 in
Color	Black
Connector Layout	DA, A, High Density
Connector Style	High Density, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating	3 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded, Grounding Indents, Board Lock
Finish	Nickel Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	26
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	2
Termination	Solder
Voltage Rating	250 V

181-026 Series

Part	Finish	Shell Material	Current Rating	Contact Finish Thickness (string set options)	Contact Finish Thickness	Number of Rows	Number of Positions	Flange Feature	Connector Style	Connector Type	Contact Type	Features	Contact Finish	Shell Size	Connector Layout	Backset Spacing	Mounting Type	Material Flammability Rating	Termination	Contact Material	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Color	Voltage Rating
NorComp Inc. 181-026-112-531	Tin Plated	Steel	2 A	Flash	Flash	3	26	Housing Shell (4-40)	D-Sub High Density	Male Pins Plug	Signal	Board Lock Grounding Indents	Gold	2	A DA High Density	0.35 in	Panel Mount Right Angle Through Hole	UL94 V-0	Solder	Brass	Polybutylene Terephthalate (PBT)	-50 °C	100 °C	Black
NorComp Inc. 181-026-212-171	Tin Plated	Steel	2 A	Flash	Flash	3	26	Housing Shell (4-40)	D-Sub High Density	Female Sockets Receptacle	Signal	Ground Strap	Gold	2	A DA High Density	0.35 in	Panel Mount Right Angle Through Hole	UL94 V-0	Solder	Brass	Polybutylene Terephthalate (PBT)	-50 °C	100 °C	Black
NorComp Inc. 181-026-213R531	Nickel Plated	Steel	3 A	Flash	Flash	3	26	Housing Shell (4-40)	D-Sub High Density	Female Sockets Receptacle	Signal	Board Lock Shielded	Gold	2	A DA High Density	0.35 in	Panel Mount Right Angle Through Hole	UL94 V-0	Solder	Brass	Nylon 9T Polyamide (PA9T)	-55 °C	105 °C	Black	250 V
NorComp Inc. 181-026-113R561	Nickel Plated	Steel	3 A	Flash	Flash	3	26	Female Screwlock (4-40) Mating Side	D-Sub High Density	Male Pins Plug	Signal	Board Lock Grounding Indents Shielded	Gold	2	A DA High Density	0.35 in	Panel Mount Right Angle Through Hole	UL94 V-0	Solder	Brass	Nylon 9T Polyamide (PA9T)	-55 °C	105 °C	Black	250 V
NorComp Inc. 181-026-213R161	Nickel Plated	Steel	3 A	Flash	Flash	3	26	Housing Shell (Unthreaded)	D-Sub High Density	Female Sockets Receptacle	Signal	Ground Strap Shielded	Gold	2	A DA High Density	0.35 in	Panel Mount Right Angle Through Hole	UL94 V-0	Solder	Brass	Nylon 9T Polyamide (PA9T)	-55 °C	105 °C	Black	250 V
NorComp Inc. 181-026-212-531	Tin Plated	Steel	2 A	Flash	Flash	3	26	Housing Shell (4-40)	D-Sub High Density	Female Sockets Receptacle	Signal	Board Lock	Gold	2	A DA High Density	0.35 in	Panel Mount Right Angle Through Hole	UL94 V-0	Solder	Brass	Polybutylene Terephthalate (PBT)	-50 °C	100 °C	Black
NorComp Inc. 181-026-113R171	Nickel Plated	Steel	3 A	Flash	Flash	3	26	Housing Shell (4-40)	D-Sub High Density	Male Pins Plug	Signal	Ground Strap Grounding Indents Shielded	Gold	2	A DA High Density	0.35 in	Panel Mount Right Angle Through Hole	UL94 V-0	Solder	Brass	Nylon 9T Polyamide (PA9T)	-55 °C	105 °C	Black	250 V
NorComp Inc. 181-026-213R171	Nickel Plated	Steel	3 A	Flash	Flash	3	26	Housing Shell (4-40)	D-Sub High Density	Female Sockets Receptacle	Signal	Ground Strap Shielded	Gold	2	A DA High Density	0.35 in	Panel Mount Right Angle Through Hole	UL94 V-0	Solder	Brass	Nylon 9T Polyamide (PA9T)	-55 °C	105 °C	Black	250 V
NorComp Inc. 181-026-213R181	Nickel Plated	Steel	3 A	Flash	Flash	3	26	Female Screwlock (4-40) Mating Side	D-Sub High Density	Female Sockets Receptacle	Signal	Ground Strap Shielded	Gold	2	A DA High Density	0.35 in	Panel Mount Right Angle Through Hole	UL94 V-0	Solder	Brass	Nylon 9T Polyamide (PA9T)	-55 °C	105 °C	Black	250 V
NorComp Inc. 181-026-213R561	Nickel Plated	Steel	3 A	Flash	Flash	3	26	Female Screwlock (4-40) Mating Side	D-Sub High Density	Female Sockets Receptacle	Signal	Board Lock Shielded	Gold	2	A DA High Density	0.35 in	Panel Mount Right Angle Through Hole	UL94 V-0	Solder	Brass	Nylon 9T Polyamide (PA9T)	-55 °C	105 °C	Black	250 V
