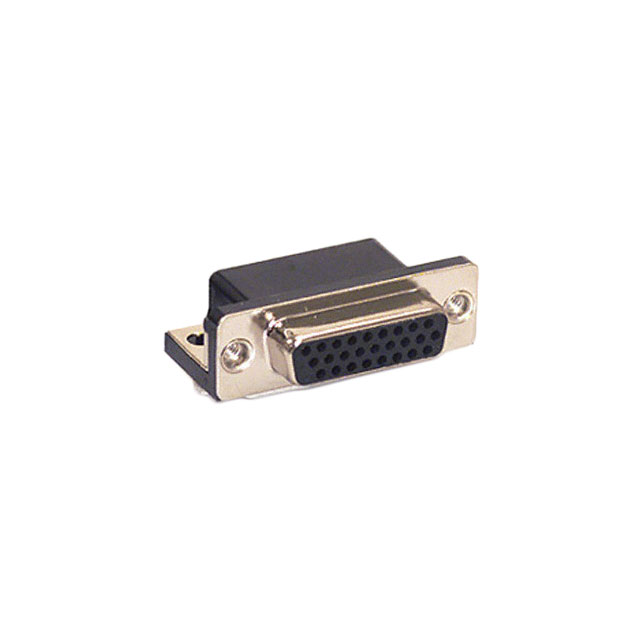

181-026-212-171

Obsolete

MH Connectors

CONN D-SUB HD RCPT 26P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

181-026-212-171

Obsolete

MH Connectors

CONN D-SUB HD RCPT 26P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	181-026-212-171

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Ground Strap
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	26
Number of Rows	3
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

181-026 Series

Part	Number of Positions	Backset Spacing	Backset Spacing	Contact Type	Termination	Connector Style	Number of Rows	Contact Material	Flange Feature	Contact Finish Thickness	Material Flammability Rating	Contact Finish	Current Rating (Amps)	Dielectric Material	Mounting Type	Color	Features	Connector Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Shell Material, Finish	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]
MH Connectors 181-026-112-531	26	8.89 mm	0.35 in	Signal	Solder	D-Sub High Density	3	Brass	Housing/Shell (4-40)	Flash	UL94 V-0	Gold	2 A	Polybutylene Terephthalate (PBT)	Panel Mount Right Angle Through Hole	Black	Board Lock Grounding Indents	Male Pins Plug	2	(DA A) High Density
MH Connectors 181-026-212-171	26	8.89 mm	0.35 in	Signal	Solder	D-Sub High Density	3	Brass	Housing/Shell (4-40)	Flash	UL94 V-0	Gold	2 A	Polybutylene Terephthalate (PBT)	Panel Mount Right Angle Through Hole	Black	Ground Strap	Receptacle Female Sockets	2	(DA A) High Density
MH Connectors 181-026-213R531	26	8.89 mm	0.35 in	Signal	Solder	D-Sub High Density	3	Brass	Housing/Shell (4-40)	Flash	UL94 V-0	Gold	3 A	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Black	Board Lock Shielded	Receptacle Female Sockets	2	(DA A) High Density	Nickel Plated Steel	250 VDC	105 ░C	-55 °C
MH Connectors 181-026-113R561	26	8.89 mm	0.35 in	Signal	Solder	D-Sub High Density	3	Brass	Female Screwlock (4-40) Mating Side	Flash	UL94 V-0	Gold	3 A	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Black	Board Lock Grounding Indents Shielded	Male Pins Plug	2	(DA A) High Density	Nickel Plated Steel	250 VDC	105 ░C	-55 °C
MH Connectors 181-026-213R161	26	8.89 mm	0.35 in	Signal	Solder	D-Sub High Density	3	Brass	Housing/Shell (Unthreaded)	Flash	UL94 V-0	Gold	3 A	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Black	Ground Strap Shielded	Receptacle Female Sockets	2	(DA A) High Density	Nickel Plated Steel	250 VDC	105 ░C	-55 °C
MH Connectors 181-026-212-531	26	8.89 mm	0.35 in	Signal	Solder	D-Sub High Density	3	Brass	Housing/Shell (4-40)	Flash	UL94 V-0	Gold	2 A	Polybutylene Terephthalate (PBT)	Panel Mount Right Angle Through Hole	Black		Receptacle Female Sockets	2	(DA A) High Density
MH Connectors 181-026-213R171	26	8.89 mm	0.35 in	Signal	Solder	D-Sub High Density	3	Brass	Housing/Shell (4-40)	Flash	UL94 V-0	Gold	3 A	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Black	Ground Strap Shielded	Receptacle Female Sockets	2	(DA A) High Density	Nickel Plated Steel	250 VDC	105 ░C	-55 °C
MH Connectors 181-026-213R181	26	8.89 mm	0.35 in	Signal	Solder	D-Sub High Density	3	Brass	Female Screwlock (4-40) Mating Side	Flash	UL94 V-0	Gold	3 A	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Black	Ground Strap Shielded	Receptacle Female Sockets	2	(DA A) High Density	Nickel Plated Steel	250 VDC	105 ░C	-55 °C
MH Connectors 181-026-213R561	26	8.89 mm	0.35 in	Signal	Solder	D-Sub High Density	3	Brass	Female Screwlock (4-40) Mating Side	Flash	UL94 V-0	Gold	3 A	Polyamide (PA9T) Nylon 9T	Panel Mount Right Angle Through Hole	Black	Board Lock Shielded	Receptacle Female Sockets	2	(DA A) High Density	Nickel Plated Steel	250 VDC	105 ░C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

181-026 Series

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
