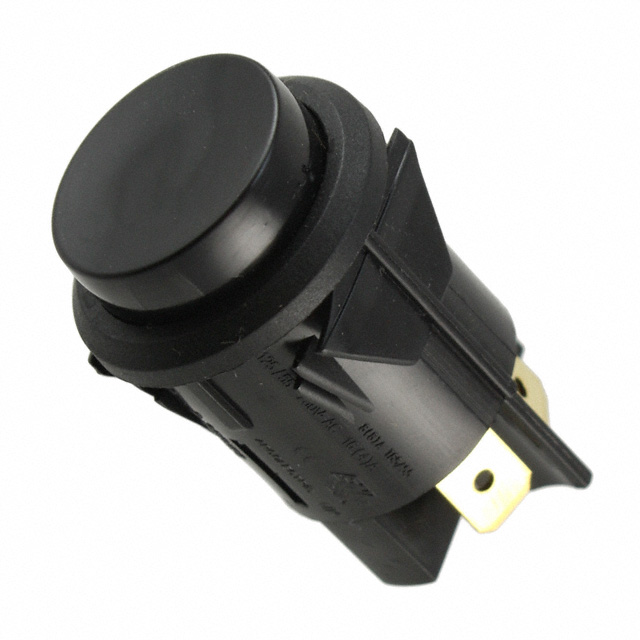

C7001AFBB

Active

BULGIN LIMITED

SWITCH PUSH SPST-NO 16A 250V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH PUSH SPST-NO 16A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	C7001AFBB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Ingress Protection	IP40
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [diameter]	25 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Standard
Voltage Rating - AC	250 V

Part	Ingress Protection	Panel Cutout Dimensions [diameter]	Actuator Type	Actuator Marking	Current Rating (Amps)	Type	Voltage Rating - AC	Termination Style	Switch Function	Circuit	Color - Actuator/Cap	Mounting Type
BULGIN LIMITED C7001AFBR	IP40	25 mm	Button Round	No Marking	16 A	Standard	250 V	Quick Connect - 0.250" (6.3mm)	Off-Mom	SPST-NO	Red	Panel Mount Snap-In
BULGIN LIMITED C7001AFBB	IP40	25 mm	Button Round	No Marking	16 A	Standard	250 V	Quick Connect - 0.250" (6.3mm)	Off-Mom	SPST-NO	Black	Panel Mount Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
