Technical Specifications
Parameters and characteristics for this part
| Specification | C7001AFBR |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 16 A |
| Ingress Protection | IP40 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [diameter] | 25 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Type | Standard |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.91 | |
| 10 | $ 8.93 | |||
| 25 | $ 8.56 | |||
| 50 | $ 8.14 | |||
| 100 | $ 7.81 | |||
| 250 | $ 7.34 | |||
| 500 | $ 6.78 | |||
| 1000 | $ 6.55 | |||
Description
General part information
C7001AF Series

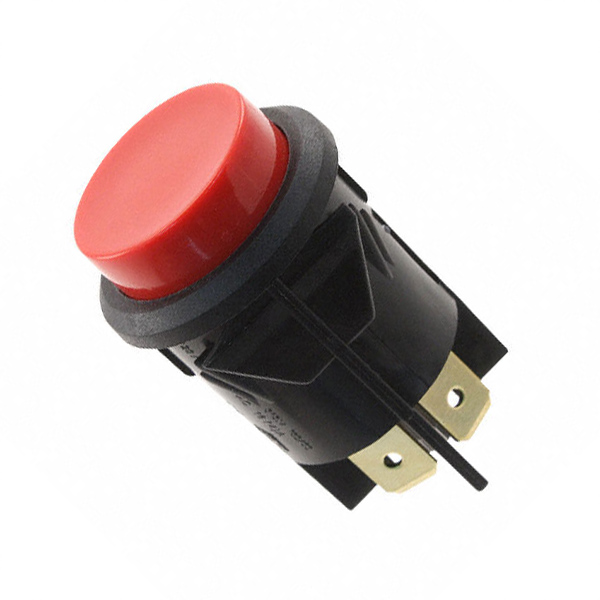

Pushbutton Switch SPST-NO Standard Panel Mount, Snap-In
