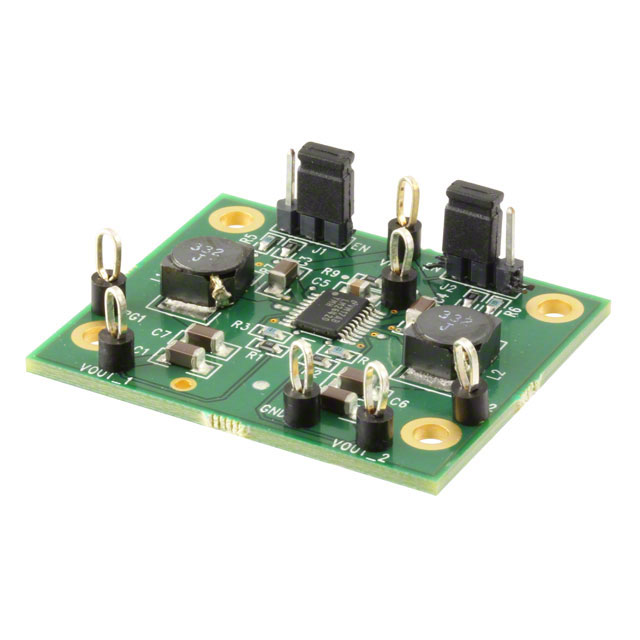

Specification	LM26420YMHEVAL/NOPB

Board Type	Fully Populated
Contents	Board
Current - Output (Max)	2 A
Current - Output (Min)	2 A
Frequency - Switching	550 kHz
Main Purpose	DC/DC, Step Down
Non-Isolated Output Count	2 count
Output Type	Non-Isolated
Regulator Topology	Buck
Supplied Contents	Board(s)
Total Output Count	2
Utilized IC / Part	LM26420
Voltage - Input (Maximum)	5.5 V
Voltage - Input (Minimum)	3 V
Voltage - Output	1.2 V, 2.5 V

LM2642 Series

Part	Current - Supply	Package Length	Package Name	Package Width	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Total Output Count	Output Type	Non-Isolated Output Count	Board Type	Supplied Contents	Current - Output (Max)	Current - Output (Min)	Regulator Topology	Main Purpose	Voltage - Output	Contents	Utilized IC / Part	Frequency - Switching	Voltage - Input (Minimum)	Voltage - Input (Maximum)
Texas Instruments LM2642MTCX	1 mA	0.173 in	28-TSSOP	4.4 mm	Console/Set-Top boxes Embedded systems	125 °C	-40 °C	Surface Mount	4.5 V	30 VDC
Texas Instruments LM2642MTCX/NOPB	1 mA	0.173 in	28-TSSOP	4.4 mm	Console/Set-Top boxes Embedded systems	125 °C	-40 °C	Surface Mount	4.5 V	30 VDC
Texas Instruments LM2642REVD EVAL											2	Non-Isolated	2 count	Fully Populated	Board(s)	2 A	2 A	Buck	DC/DC Step Down	1.8 V 2.5 V	Board	LM2642	300 kHz	4.5 V	20 V
Texas Instruments LM2642MTC/NOPB	1 mA	0.173 in	28-TSSOP	4.4 mm	Console/Set-Top boxes Embedded systems	125 °C	-40 °C	Surface Mount	4.5 V	30 VDC
Texas Instruments LM26420YMHEVAL/NOPB											2	Non-Isolated	2 count	Fully Populated	Board(s)	2 A	2 A	Buck	DC/DC Step Down	1.2 V 2.5 V	Board	LM26420	550 kHz	3 V	5.5 V
Texas Instruments LM2642MTC/NOPB	1 mA	0.173 in	28-TSSOP	4.4 mm	Console/Set-Top boxes Embedded systems	125 °C	-40 °C	Surface Mount	4.5 V	30 VDC
Texas Instruments LM2642MTCX/NOPB	1 mA	0.173 in	28-TSSOP	4.4 mm	Console/Set-Top boxes Embedded systems	125 °C	-40 °C	Surface Mount	4.5 V	30 VDC
Texas Instruments LM2642MTC	1 mA	0.173 in	28-TSSOP	4.4 mm	Console/Set-Top boxes Embedded systems	125 °C	-40 °C	Surface Mount	4.5 V	30 VDC
Texas Instruments LM2642MTC	1 mA	0.173 in	28-TSSOP	4.4 mm	Console/Set-Top boxes Embedded systems	125 °C	-40 °C	Surface Mount	4.5 V	30 VDC
